Product Details:
|
| Product Model: | MYHT-1-5 | Flow Range: | 0-500l/min |
|---|---|---|---|
| Pressure Range: | 0-42Mpa | Temperature: | 150C |
| Weight: | 10.5kg | Application: | Hydraulic Valve And Cylinder |
| Color: | Silver And Black Color | Product Name: | MYHT-1-5 Hydraulic Flow Meter Test Kit |
| Highlight: | 42Mpa Hydraulic Flow Meter Test Kit,500l/min Hydraulic Flow Meter Test Kit,HIGHLAND hydraulic flow test kit |
||

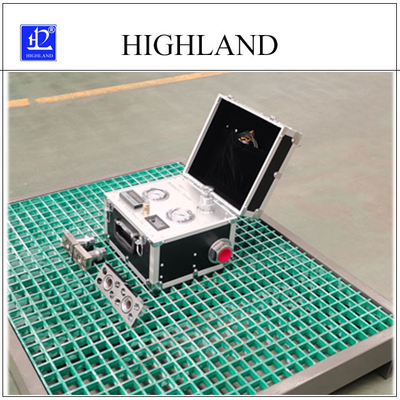

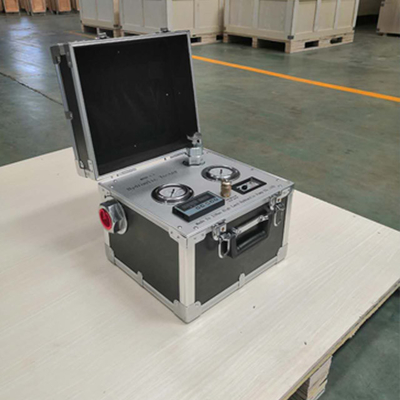

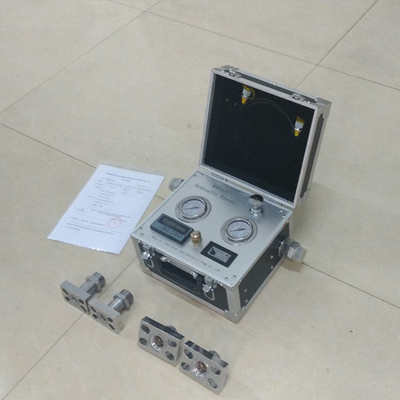

MYHT-1-5 hydraulic flow meter test kit for hydraulic valve cylinder
Hydraulic flow meter test kit basic information:
MYHT-1-5 hydraulic flow meter test kit accurately measure oil flow, temperature, and pressures against manufacturers' specifications. Temperature flow and pressure readings are displayed by digital display meters, hydraulic test kit is an ideal and practical tool to test hydraulic pump motor, hydraulic valve and hydraulic cylinder. Meantime it has light weight and small volume, which can be brought on site.
Hydraulic flow test kit main features:
1) High precision - scale span ± 1%.
2) Turbine flow sensor - fast response, antipollution, low pressure loss.
3) With fast-measuring, high-accuracy and good-stability
4) Flow and temperature display, using four LED digital tube, free of low temperature limit.
5) Pressure indication: seismic-resistant gauges with super stable and overload ability.
6) Security design, indicators for reverse connection of test gauges, and for pressure, power.
7) Easy operation, flow rate, pressure and temperature can be tested. simultaneously at one point. Pressure valve adjusts with light power, and the loading is smooth and quickly, accurate.
8) Wide Application, compact structure, light weight, pump test, online system test, applicable for rapid diagnosis for all kinds of mobile and fixed hydraulic system and components.
Hydraulic flow meter test kit technical specifications:
| Model | Flow(L/min) | Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 280*245*172 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 280*245*172 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 280*245*172 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Usage of MYHT-1-5 hydraulic flow meter test kit :
In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.
It is widely used in testing and diagnosing for hydraulic pump, hydraulic motor and hydraulic valve, hydraulic cylinder etc hydraulic transimission system.
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic tester manufacturer.
Q: What is the MOQ?
A: 1pc is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Is your company accept customization?
A: We have our own factory, and excellent design team,and we accept OEM.
