Product Details:
|
| Model: | PV110+MF110 | Type: | Hydraulic Components |
|---|---|---|---|
| Factory Address: | CHINA DEZHOU | Power: | Hydraulic |
| Application: | Corn Harvester | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | PV+MF Series Hydraulic Drive System For Efficient Performance |
| Highlight: | MF110 Hydraulic Drive System,Dredging Hydraulic Drive System,Dredging Hydraulic Components |
||

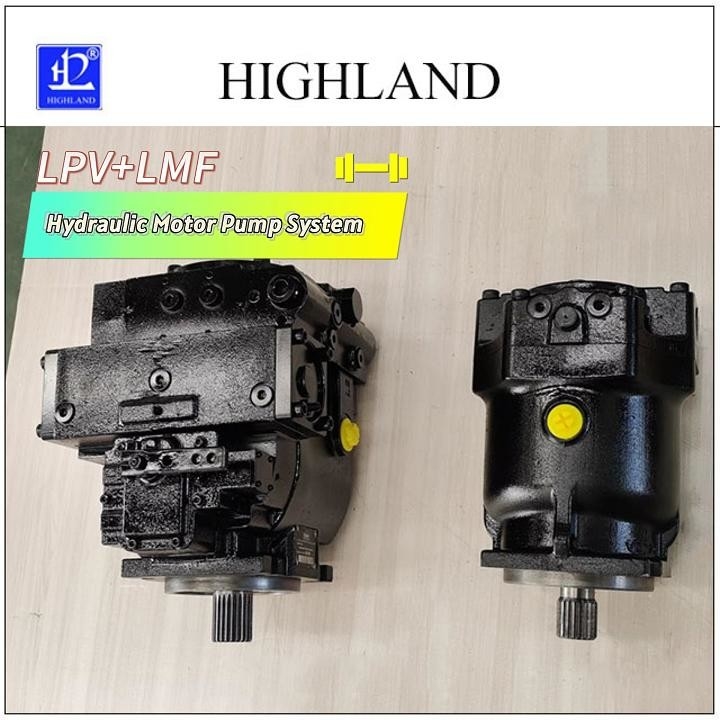

Custom PV110+MF110 hydraulic drive system for dredging ditching machine
Quick Detail:
· Cast iron housing
· Hydraulic components
· Power components of hydraulic systems
· Higher efficiency
· Factory address CHINA DEZHOU
· Simple layout
· System Solutions
· Application Hydraulic system components
· Work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
Description:
"Optimize your Dredging and Trenching machinery with our custom Hydraulic Drive System, PV110+MF110. This tailor-made solution ensures superior efficiency and performance for your operations, designed specifically to meet the challenges of dredging and trenching work. The PV110+MF110 system combines power and reliability, providing a durable, high-performing solution that enhances the longevity and operational efficiency of your machinery. Upgrade your equipment with our custom PV110+MF110 Hydraulic Drive System for a smoother, more reliable dredging and trenching process."
Specifications:
PV+MF Series Technical parameter
| PV hydraulic pump and MF hydraulic motor series | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| weight | PV series hydraulic pump hydraulic oil drain | kg | 45 | 53 | 63 | 78 |
| PV series hydraulic motor hydraulic oil drain | kg | 30 | 34 | 40 | 47 | |
Notices:
System Monitoring and Maintenance: A Hydraulic Drive System is a complex setup that requires regular monitoring and maintenance to ensure optimal performance and longevity. This includes keeping an eye on the hydraulic fluid levels and its condition, as contaminated or degraded fluid can affect the performance of the system. Regular inspections should also be carried out to detect any potential leaks or mechanical issues in the system. Moreover, it's crucial to follow the manufacturer's recommended maintenance schedule and guidelines for the specific components in the system. Ignoring routine maintenance can lead to decreased efficiency, increased wear and tear, and potential system failure.
Tank:
The tank level and the water present in the oil should be checked daily. If the tank must be filled with oil, filtered hydraulic oil must be used, and all water in the tank must be removed as required.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
,
FAQ
Q1. Can I have a sample order for silage machine hydraulic drive system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for silage machine hydraulic drive system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for silage machine hydraulic drive system?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
