Product Details:
|
| Total Power: | 160KW | Pressure Range: | 0-45Mpa |
|---|---|---|---|
| Rotation Speed: | 0-2500rpm | Flow Range: | 0-500l/min |
| Working Medium: | Hydraulic Oil | Product Name: | Complete Test Data Of Concrete Hydraulic Test Benches |
| High Light: | 160KW Concrete Hydraulic Test Benches,45Mpa Concrete Hydraulic Test Benches,2500rpm hydraulic valve test bench |
||
Complete test data of concrete hydraulic test benches

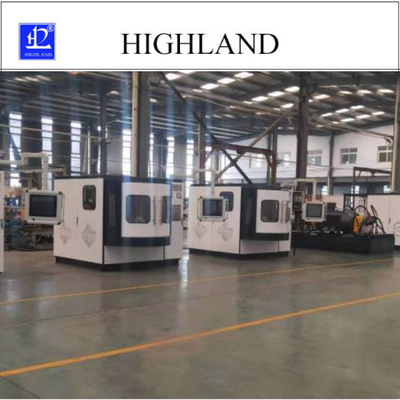

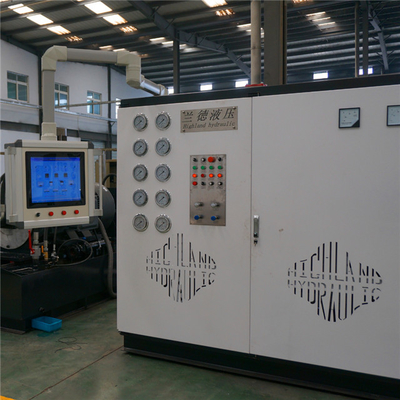

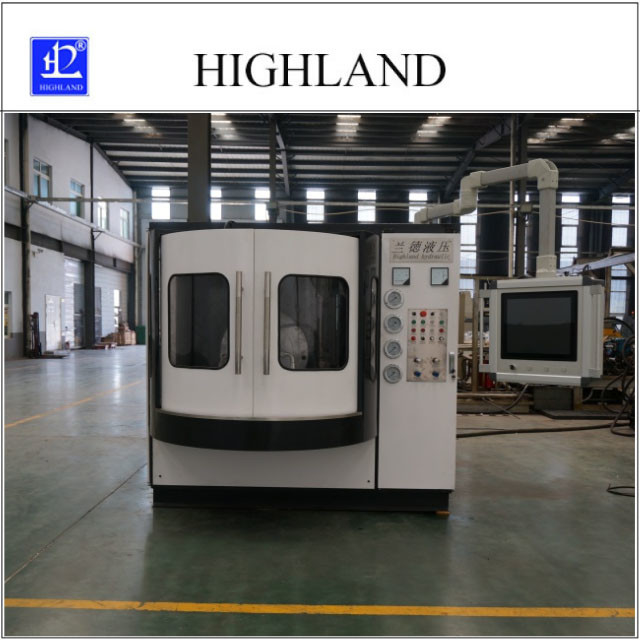

YST380 hydraulic test bench is used for checking and proofreading the products that include hydraulic pump, hydraulic motor and hydraulic valve. It also can conduct hydraulic system's breakdown diagnosis.
Our hydraulic test bench for hydraulic pump and hydraulic motor is used to test temperature, flow and pressure, efficiency, and current, RPM etc input power and output power, loading datas.
| Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Our hydraulic test bench is used for repair company to repair hydraulic pump, hydraulic motor etc hydraulic system.
And our hydraulic test stand is used for hydraulic pumps manufacturing factory to test hydraulic pump, hydraulic motor etc other hydraulic products before shipment.
Notices
Hydraulic test bench is a customized product, please send us your requirements. Our engineer will design the best proposal for you.
FAQ
Q1. What about the lead time?
A: According to customers request, normal 30 working days.
Q2. How do you ship the goods and how long does it take to arrive?
A: Hydraulic test bench is heavy goods, ship by sea to different countries.
Q3: Do you offer guarantee for hydraulic test bench?
A: Yes, we offer 1 year warranty to our products.
