Product Details:
|
| Total Power: | 75-315KW | Pressure Range: | 0-45Mpa |
|---|---|---|---|
| Rotation Speed: | 0-3500rpm | Flow Range: | 0-500l/min |
| Working Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Design: | Customization | Product Name: | Personalized Customization Of Marine Hydraulic Test Benches |
| High Light: | Personalized Marine Hydraulic Test Bench,500l/Min Marine Hydraulic Test Bench,YST380 Personalized Hydraulic Test Stands |
||

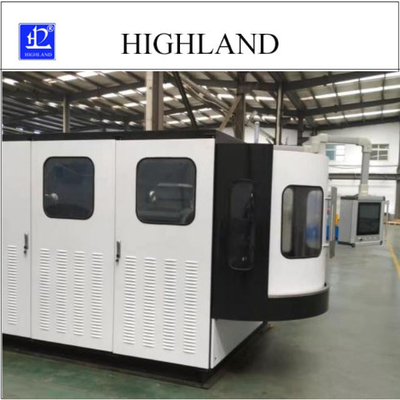

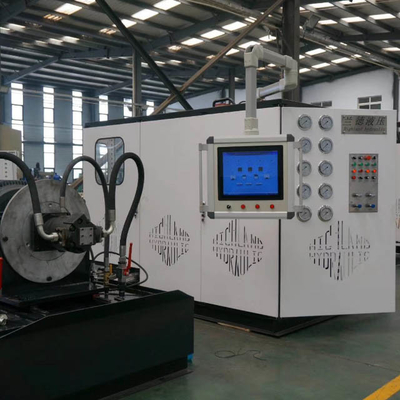

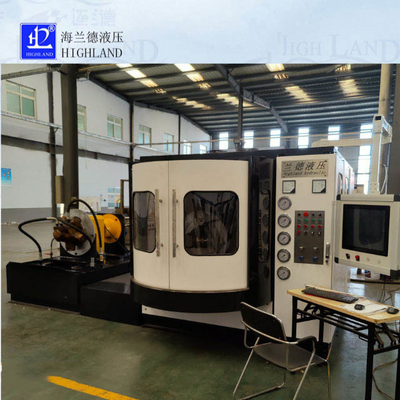

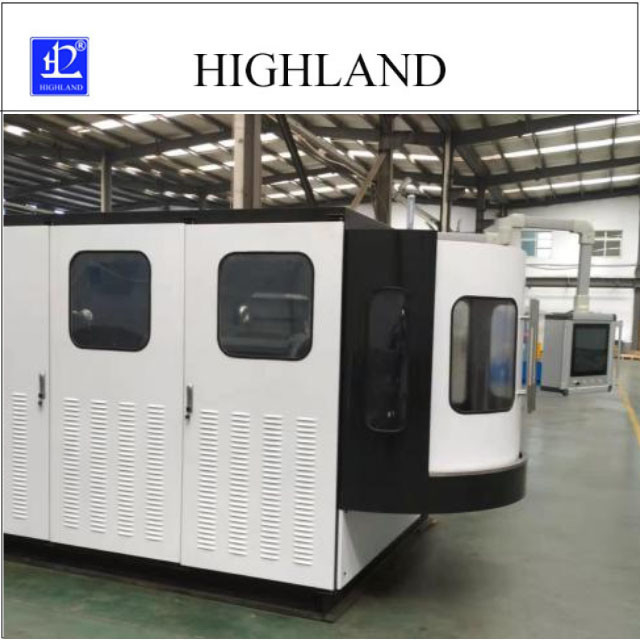

Personalized customization of marine Hydraulic Test Benches
Quick Detail:
YST380 hydraulic test bench is used for checking and proofreading the products that include open and closed hydraulic pump, hydraulic motor and hydraulic valve, hydraulic cylinder. It also can conduct hydraulic system's breakdown diagnosis.
Test items:
Our hydraulic test bench for hydraulic pump and hydraulic motor is used to test temperature, flow and pressure, efficiency, and current, RPM etc input power and output power, loading data etc
Technical parameter:
| Hydraulic Test Benches Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Usage:
Our hydraulic test bench is used for repair company to repair hydraulic pump, hydraulic motor etc hydraulic system. And our hydraulic test bench is used for hydraulic pumps manufacturing factory to test hydraulic pump, hydraulic motor etc other hydraulic products before shipment.
Notices:
Hydraulic test benches are customized products, please send us your requirements. Our engineer will design the best proposal for you.
FAQ:
Q1. What about the delivery time?
A: According to customers request, normal 30 working days for our production time. And shipping time on sea to different discharge port.
Q2. How do you ship the goods and how long does it take to arrive?
A: Hydraulic test bench is heavy goods, around 4 Ton, the best shipping way is by sea to different countries.
Q3: Do you offer guarantee for hydraulic test bench?
A: Yes, we offer 1 year warranty for our hydraulic test benches.
