Product Details:
|
| Features: | Reliable Quality | Model: | LMF90 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | LMF30 Hydraulic Power Components Motor With Simple Layout And Reliable Quality |
| Highlight: | High Precision Hydraulic Motor,Industrial Heavy Duty Hydraulic Piston Motor |
||

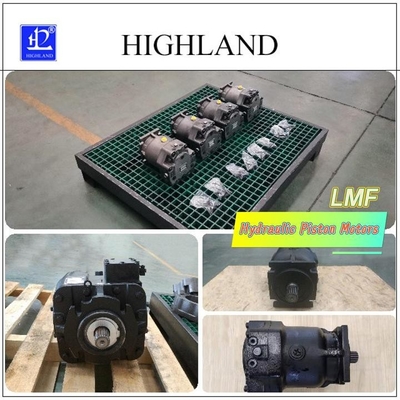

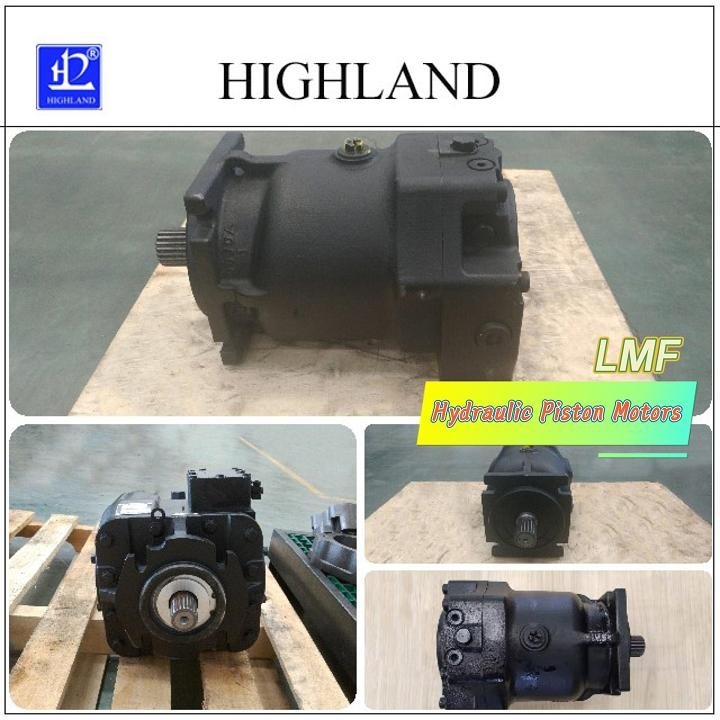

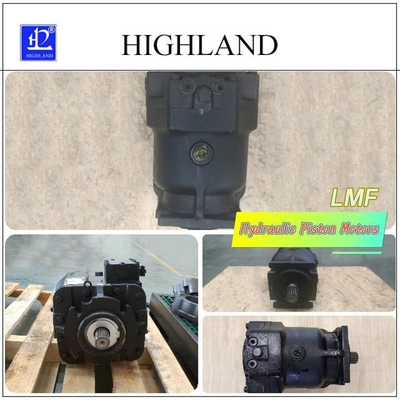

LMF30 Hydraulic Power Components Motor with Simple Layout and Reliable Quality
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Step into the future of industrial machinery with our advanced hydraulic piston motors, a marvel in the engineering world. These motors are crafted with the utmost precision, harnessing the power of pressurized hydraulic fluid to activate pistons with exceptional efficiency. This advanced technology enables the conversion of hydraulic energy into a formidable rotational force, yielding an impressive power output with unparalleled control. Ideal for the rigors of heavy industry, our hydraulic piston motors redefine the benchmarks for performance and reliability. They offer a superior solution in applications that demand high power and exacting precision, such as in large-scale construction and intricate manufacturing processes. Our motors are not just components; they are the heartbeat of modern industrial machinery, providing the power and precision necessary to push the boundaries of what is possible in the industrial sector.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
a. Temperature and Pressure Monitoring: Regularly monitor the temperature and pressure levels within the hydraulic system. Abnormal readings can be early indicators of potential problems requiring immediate attention.
b. Hydraulic Fluid Quality: Regularly assess the quality of the hydraulic fluid. Degraded or contaminated fluid can significantly impair motor performance and lead to component damage.
c. Component Integrity Checks: Routinely inspect all components of the hydraulic system for wear, corrosion, or damage. Replace any compromised parts promptly to maintain system integrity and performance.
d. Environmental Protection: Protect the motor and its components from harsh environmental conditions such as extreme temperatures, moisture, and contaminants. This helps in avoiding unnecessary wear and system malfunctions.
e. Record Keeping: Maintain detailed records of maintenance, repairs, and any modifications made to the hydraulic system. This documentation is crucial for troubleshooting and ensuring adherence to safety standards and operational best practices.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
