Product Details:
|
| Features: | Reliable Quality | Model: | LMF90 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | LMF30Hydraulic Piston Motors: Robust Performance With Steel Casing |
| Highlight: | Steel Casing Hydraulic Piston Motor,Robust Hydraulic Piston Motors |
||

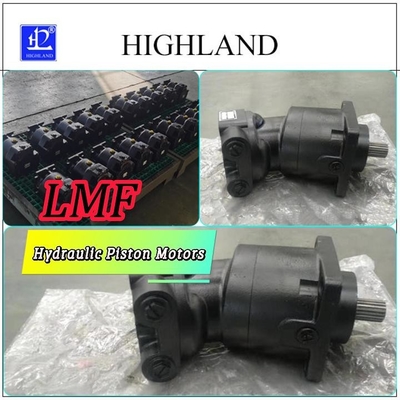

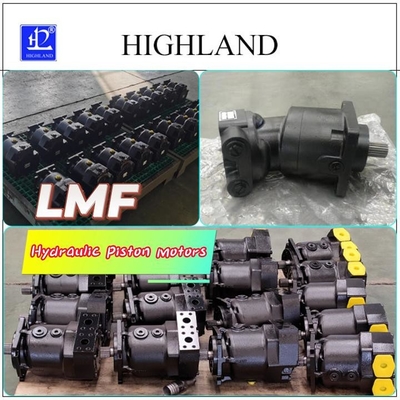

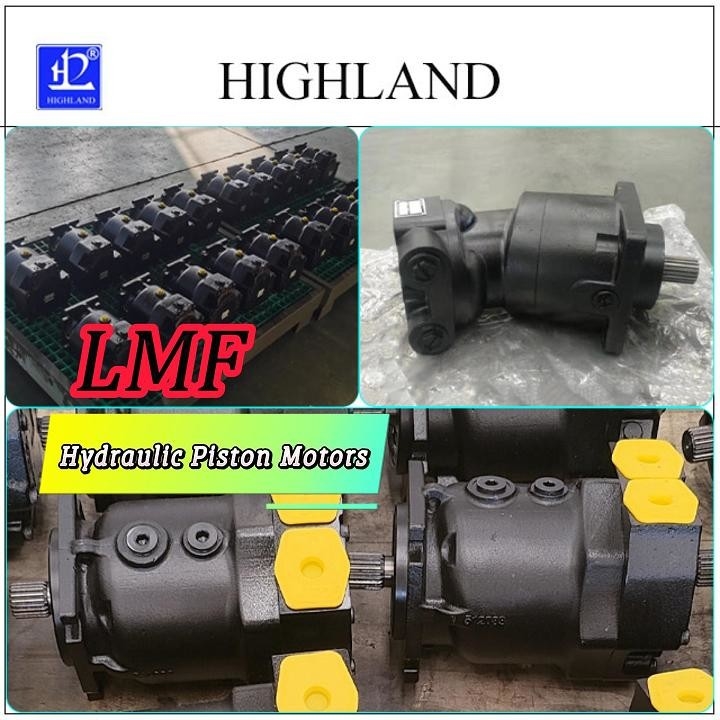

LMF30Hydraulic Piston Motors: Robust Performance with Steel Casing
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Step into the forefront of industrial advancement with our cutting-edge hydraulic piston motors. These motors are a symbol of engineering excellence, using sophisticated hydraulic mechanisms to propel pistons with unmatched accuracy and force. This state-of-the-art technology translates hydraulic energy into a powerful rotational force, ensuring impressive power output coupled with supreme control. Our hydraulic piston motors are designed to meet the stringent demands of modern industry, providing a reliable and precise solution for heavy-duty applications such as large-scale construction and detailed manufacturing processes. They represent not just a component, but a pivotal force in modern industrial machinery, offering the necessary power and precision to redefine industrial capabilities and achievements.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
a. Regular Inspection of Hoses and Fittings: Periodically inspect all hoses and fittings for signs of wear, cracks, or leaks. Compromised hoses and fittings can significantly impact the performance and safety of the motor.
b. Correct Fluid Selection: Use only the recommended hydraulic fluid type for your specific motor model. Incorrect fluids can cause operational issues and damage the motor.
c. Environmental Awareness: Be aware of the operating environment and adjust maintenance and operation practices accordingly. Factors like extreme temperatures and humidity can affect motor performance and lifespan.
d. Load Management: Ensure that the motor is not operating consistently at maximum capacity. Overloading the motor can lead to increased wear and a higher likelihood of failure.
e. Incident Reporting and Analysis: Encourage prompt reporting and thorough analysis of any incidents or anomalies during operation. Learning from these events can prevent future occurrences and enhance overall safety and performance.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
