Product Details:
|
| Usage: | Combine Harvester Etc Agricultural Machinery | Material: | Cast Iron |
|---|---|---|---|
| Working Principle: | Hydraulic Transmission | Loading Mode: | Manual Loading |
| Standard Or Nonstandard: | Standard | Warrantry: | 1 Year |
| Max Pressure: | 42 MPA | Model: | HPV110-MA-R-23 Hydraulic Pump |
| Highlight: | HPV110-MA-R-23 Hydraulic Piston Pump,Agricultural Machinery Hydraulic Piston Pump,hydraulic piston pumps for Agricultural Machinery |
||

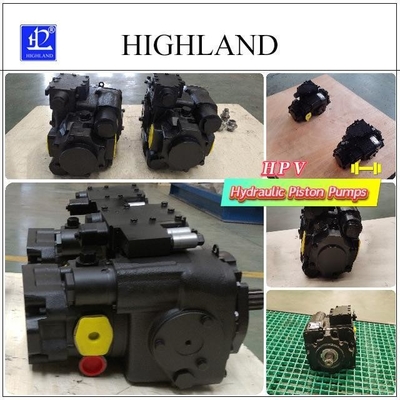

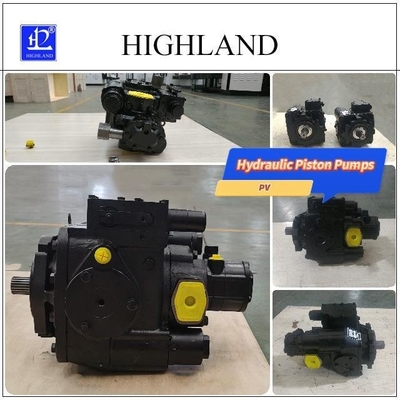

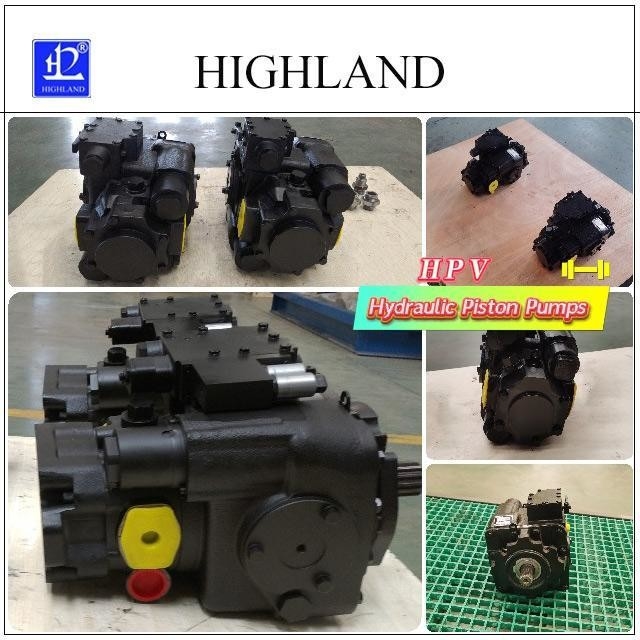

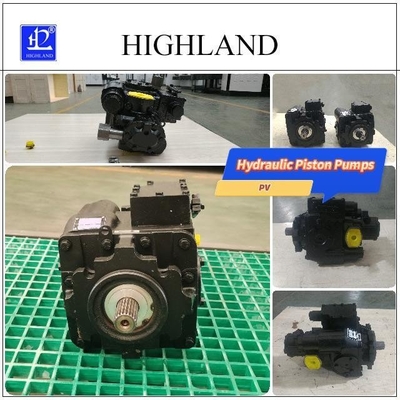

With its hydraulic power source, the HPV110 hydraulic pump is designed to provide consistent and reliable performance, even under heavy loads. Its advanced hydraulic transmission system ensures that it can efficiently transfer power from your hydraulic system to your machinery, helping to maximize productivity and minimize downtime.
One of the key strengths of the HPV110 hydraulic pump is its versatility. Whether you are looking for a pump for use in construction, agriculture, or manufacturing, this pump can meet your needs. With its high displacement and pressure capabilities, it can handle even the toughest jobs with ease.
In addition to its impressive performance and versatility, the HPV110 hydraulic pump is also built to last. It is made from high quality materials that are designed to withstand the rigors of heavy use, ensuring that you get the most out of your investment.
So if you are looking for a top-quality hydraulic piston pump that can deliver reliable performance, look no further than the HPV110 hydraulic pump. With its advanced hydraulic transmission system, high displacement and pressure capabilities, and rugged construction, it is the ideal choice for a wide range of applications.
Looking for a reliable piston pump for sale? Look no further than our hydraulic piston pump, the HPV110 hydraulic pump. Made from durable cast iron, this pump has a max displacement of 110ml/r and is perfect for use in combine harvesters and other agricultural machinery. Plus, with a 1-year warranty, you can trust in its quality and performance.
| Warranty | 1 Year |
| Material | Cast Iron |
| Model | HPV110-MA-R-23 Hydraulic Pump |
| Max Displacement | 110 ml/r |
| Usage | Combine Harvester Etc Agricultural Machinery |
| Medium | Hydraulic Oil |
| Power Source | Hydraulic |
| Loading Mode | Manual Loading |
| Standard Or Nonstandard | Standard |
| Working Principle | Hydraulic Transmission |
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
The HPV110-MA-R-23 hydraulic pump has a maximum displacement of 110ml/r and can be loaded manually, making it a versatile choice for different usage scenarios. The medium used for this pump is hydraulic oil, which ensures optimal performance and durability.
Thanks to its robust construction, the HPV110 hydraulic pump can be utilized in various product application occasions and scenarios. It can be used for industrial machinery, such as excavators, loaders, and bulldozers, to name a few. Additionally, it can be installed in agricultural machinery like tractors, harvesters, and sprayers.
With a minimum order quantity of just 5 sets and a price range of USD900-1400/Set, the HPV110 hydraulic pump is an affordable option without sacrificing quality. It is packaged in a sturdy plywood case and has a delivery time of 10 working days. Payment can be made through T/T or Western Union, and we have a supply ability of 200 sets per month.
Investing in the HIGHLAND HPV110-MA-R-23 hydraulic pump is a wise decision for your machinery needs. With a warranty of 1 year, you can trust that this product will perform well and last long.
Our Hydraulic Piston Pumps are designed with utmost precision to provide reliable and efficient performance. We offer a wide range of technical support and services to ensure the optimal operation of our products, including:
- Installation guidance and support
- Maintenance and repair services
- Troubleshooting assistance
- Product training and education
- Warranty and replacement services
- Customization options to fit specific application requirements
Our team of experienced technicians and engineers are dedicated to providing exceptional support and service to our customers. Contact us for more information on how we can assist you with your Hydraulic Piston Pump needs.
Q: What is the brand name of the hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of the hydraulic piston pump?
A: The model number of this hydraulic piston pump is HPV110-MA-R-23.
Q: Where is the hydraulic piston pump manufactured?
A: This hydraulic piston pump is manufactured in Dezhou, China.
Q: Does the hydraulic piston pump come with any certification?
A: Yes, this hydraulic piston pump comes with a patent certificate.
Q: What is the minimum order quantity for the hydraulic piston pump?
A: The minimum order quantity for this hydraulic piston pump is 5 sets.
Q: What is the price range for the hydraulic piston pump?
A: The price range for this hydraulic piston pump is USD900-1400 per set.
Q: How is the hydraulic piston pump packaged?
A: The hydraulic piston pump is packaged in a plywood case.
Q: What is the delivery time for the hydraulic piston pump?
A: The delivery time for this hydraulic piston pump is 10 working days.
Q: What are the payment terms for the hydraulic piston pump?
A: The payment terms for this hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability for the hydraulic piston pump?
A: The supply ability for this hydraulic piston pump is 200 sets per month.
Tags: HPV110-MA-R-23 hydraulic piston pump, agricultural machinery hydraulic piston pump, hydraulic piston pump
