Product Details:
|
| Usage: | Combine Harvester Etc Agricultural Machinery | Working Principle: | Hydraulic Transmission |
|---|---|---|---|
| Max Pressure: | 42 MPA | Minimum Order: | 1 Set |
| Material: | Cast Iron | Power Source: | Hydraulic |
| Warrantry: | 1 Year | Medium: | Hydraulic Oil |
| Highlight: | HPV110 Hydraulic Piston Pump,42 MPA Hydraulic Piston Pump,Combine Harvester Hydraulic Piston Pump |
||

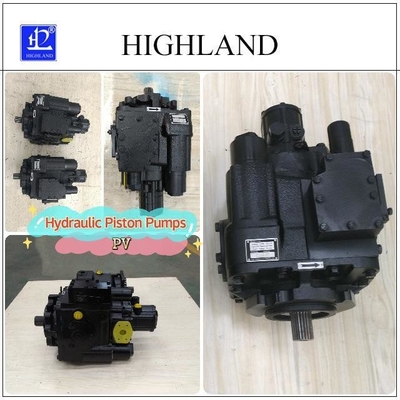

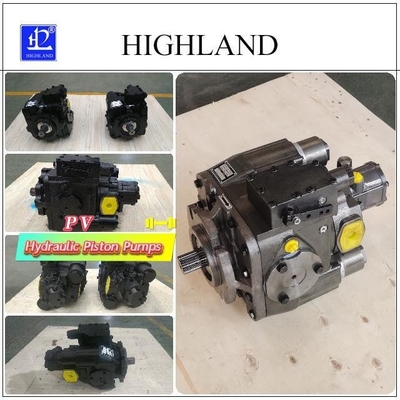

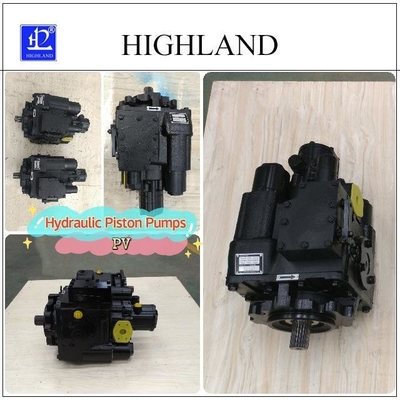

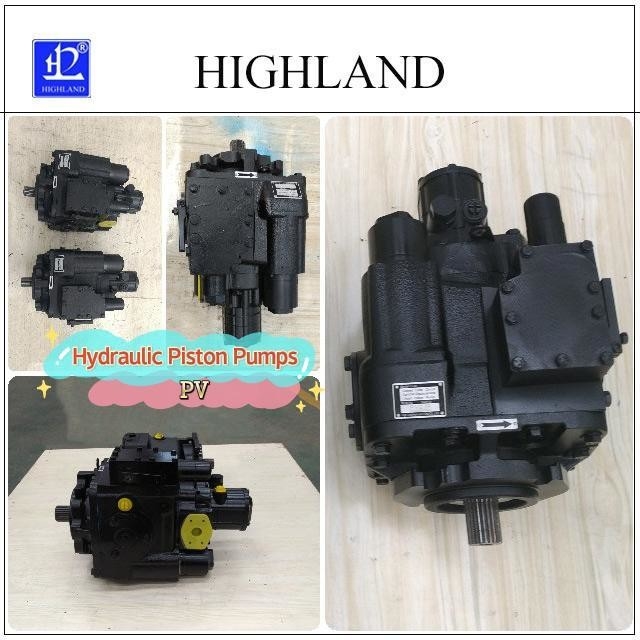

Our Hydraulic Piston Pumps are made from cast iron, ensuring that they are durable and long-lasting. They are also designed to be used with hydraulic power sources, providing high-pressure performance that can handle even the toughest industrial environments.
One of the key features of our Hydraulic Piston Pumps is their high-pressure piston pump design. This design allows them to deliver consistent and reliable performance even under extreme conditions. And because they are standard products, they are easy to install and integrate into your existing system.
Whether you need a single Hydraulic Piston Pump or a full set, we offer a minimum order quantity of just one set, making it easy and affordable to get the equipment you need for your business. And with our commitment to quality, you can be sure that you are getting a high-quality hydraulic pump that will meet your needs for years to come.
So if you are looking for a reliable and high-quality hydraulic pump for your industrial needs, be sure to check out our Hydraulic Piston Pumps today. With their standard design, manual loading capabilities, and powerful performance, they are the perfect choice for any industrial application that requires a durable and reliable hydraulic pump.
The Hydraulic Piston Pumps are a reliable and efficient choice for your hydraulic system. Featuring a manual loading mode and a maximum displacement of 110ml/r, the HPV110 hydraulic pump is capable of handling a variety of hydraulic oil mediums. Constructed with durable cast iron material, this hydraulic piston pump is standard in design and built to last.
| Product Attribute | Value |
| Product Name | Hydraulic Piston Pump |
| Minimum Order | 1 Set |
| Max Displacement | 110ml/r |
| Material | Cast Iron |
| Loading Mode | Manual Loading |
| Max Pressure | 42 MPA |
| Usage | Combine Harvester Etc Agricultural Machinery |
| Working Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| Warranty | 1 Year |
| Standard Or Nonstandard | Standard |
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Certified with a patent certificate, the HPV110 hydraulic pump is capable of displacing up to 110 ml/r of hydraulic oil, making it ideal for use in heavy-duty applications where high-pressure hydraulic oil is required. The pump is powered by hydraulic power and is designed to deliver reliable performance, day in and day out.
With a minimum order quantity of just five sets, this high-quality hydraulic pump is priced between USD900-1400 per set, making it an affordable choice for agricultural machinery manufacturers and repair shops. The pump is packaged in a sturdy plywood case for safe transportation and can be delivered within 10 working days of placing an order.
Payment for the HPV110-MA-R-23 can be made via T/T or Western Union, and the pump has a supply capacity of 200 sets per month, ensuring that manufacturers and repair shops can access the pump whenever they need it.
The HPV110 hydraulic pump is designed to work with hydraulic oil and is covered by a one-year warranty, giving users the peace of mind they need when investing in a high-pressure piston pump. The pump is suitable for use in a range of agricultural machinery, including combine harvesters and other heavy-duty equipment.
Our hydraulic piston pumps are designed to provide reliable and efficient performance for a variety of applications. We offer a range of pumps with different flow rates, pressure ratings, and displacement volumes to meet your specific needs.
Our technical support team is available to assist with any questions or issues you may have with our hydraulic piston pumps. Whether you need help with installation, operation, or maintenance, our experts can provide guidance and troubleshooting to ensure optimal performance and longevity of your equipment.
In addition to our technical support, we also offer a range of services to help you get the most out of your hydraulic piston pumps. These services include repair and maintenance, parts replacement, and system upgrades. Our experienced technicians use only genuine replacement parts to ensure the highest quality and reliability of your equipment.
When you choose our hydraulic piston pumps, you can trust in our commitment to quality and customer satisfaction. Contact us today to learn more about our products and services.
Q: What is the brand name of this hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of this hydraulic piston pump?
A: The model number of this hydraulic piston pump is HPV110-MA-R-23.
Q: Where is this hydraulic piston pump manufactured?
A: This hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: Does this hydraulic piston pump come with any certification?
A: Yes, this hydraulic piston pump comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this hydraulic piston pump?
A: The minimum order quantity for this hydraulic piston pump is 5 sets.
Q: What is the price of this hydraulic piston pump?
A: The price of this hydraulic piston pump ranges from USD900 to USD1400 per set.
Q: What are the packaging details for this hydraulic piston pump?
A: The packaging details for this hydraulic piston pump include a Plywood Case.
Q: What is the delivery time for this hydraulic piston pump?
A: The delivery time for this hydraulic piston pump is 10 working days.
Q: What are the payment terms for this hydraulic piston pump?
A: The payment terms for this hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability for this hydraulic piston pump?
A: The supply ability for this hydraulic piston pump is 200 sets per month.
