Product Details:
|
| Model: | HPV50+HMF50 | Scope Of Application: | Concrete Truck |
|---|---|---|---|
| Category: | Dosing Pump | Power: | Hydraulic |
| Application: | Wheat Harvester | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Wheat Harvester Hydrostatic Transmission High Torque |
| Highlight: | High Torque Hydraulic Dosing Pump,Harvester Hydraulic Dosing Pump,Wheat Harvester Hydrostatic Transmission |
||

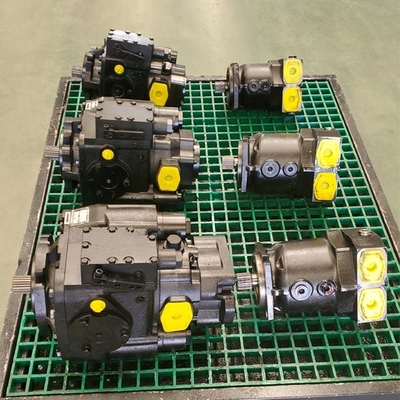

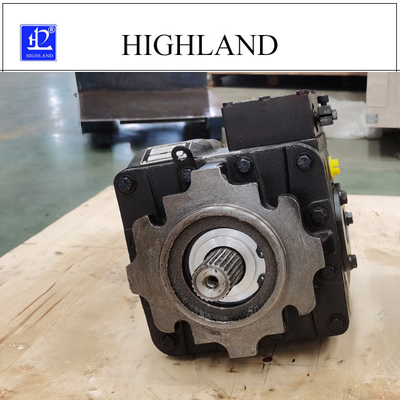

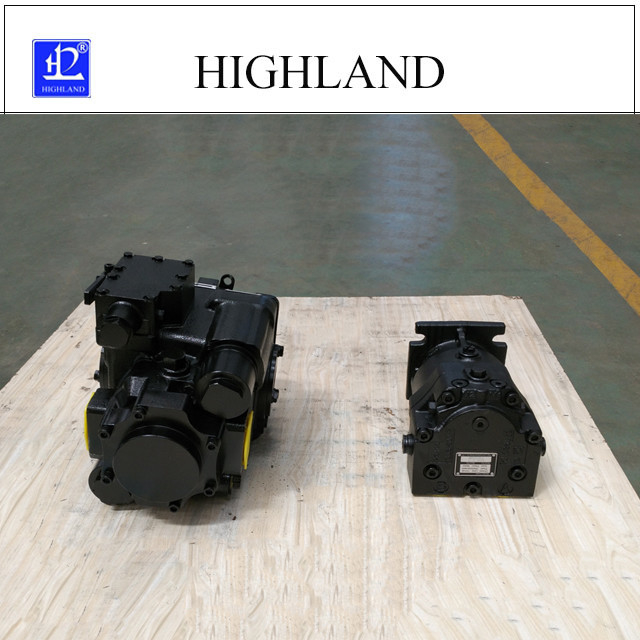

High Torque Hydraulic Dosing Pump Wheat Harvester Hydrostatic Transmission
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model HPV50+HMF50
· Power components of hydraulic systems
· Higher efficiency
· Category dosing pump
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application wheat harvester
· 1 year warranty
Description:
Specifications:
Wheat harvester hydrostatic transmission features
By designing and manufacturing static hydraulic transmission, we can provide axial hydraulic pump and hydraulic motor assembly and hydraulic system with high quality, high-performance parameters
PV+MF Series Technical parameter
| PV hydraulic pump and MF hydraulic motor series | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| weight | PV series hydraulic pump hydraulic oil drain | kg | 45 | 53 | 63 | 78 |
| PV series hydraulic motor hydraulic oil drain | kg | 30 | 34 | 40 | 47 | |
Notices:
Hydraulic oil
The suitable replacement period for hydraulic oil in a sealed tank system is 2000 hours, and more often if the hydraulic oil is contaminated with water or other external materials or subjected to abnormal operating conditions.
As a general recommendation, the 10µ inlet oil filter should be replaced every spring or every 1500 hours (whichever occurs first) on a sealed tank system, or in an open tank system with an air filter fill cap. The oil filter should be replaced every 500 hours.
Heat Exchanger
The heat exchanger core and fins are kept clean at all times for maximum cooling and system efficiency, and the exterior of the heat exchanger is checked daily for blockages and cleaned as needed.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for wheat harvester hydrostatic transmission ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for wheat harvester hydrostatic transmission ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for wheat harvester hydrostatic transmission ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
