Product Details:
|
| Displacment: | 30cc/r | Type: | Hydraulic Components |
|---|---|---|---|
| Structure: | Axial Flow Hydraulic Pumps | Material: | Carbon Steel |
| Usage: | Mining Machinery | Medium: | Hydraulic Oil |
| Warrantry: | 1 Year | Function: | Hydraulic System |
| Package: | Plywood Case | Product Name: | Highland Mining Machinery Industry Axial Piston Pumps |
| Highlight: | Carbon steel Axial Piston Pumps,Mining Machinery Axial Piston Pumps,Highland high pressure piston pump |
||

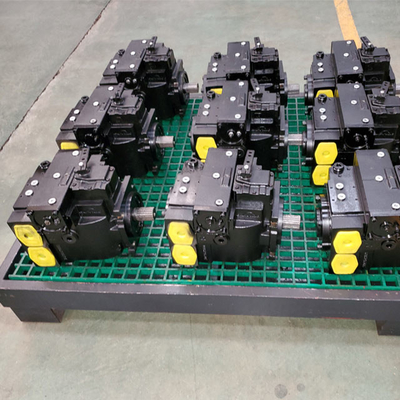

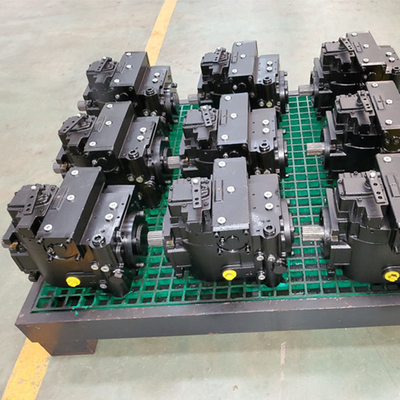

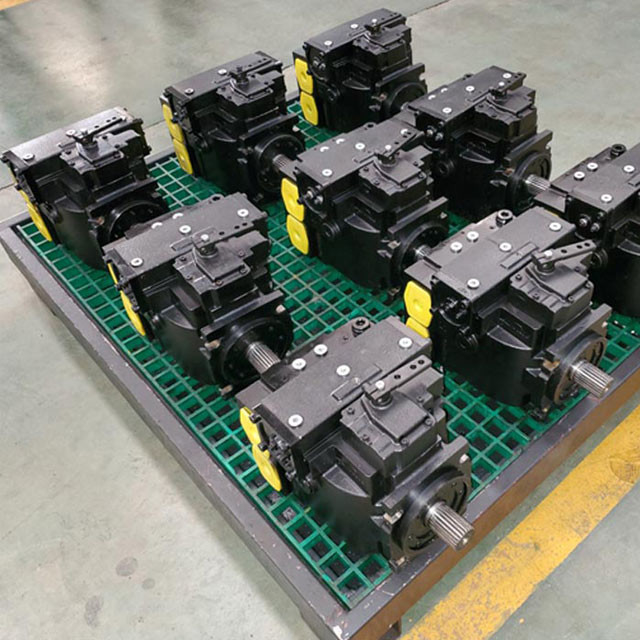

Highland mining machinery industry axial piston pumps high pressure
Axial piston pumps introduction:
Axial piston pumps are positive displacement pumps that use multiple cylinders grouped around a central axis. The group of cylinders are called a cylinder block. The pistons within each cylinder are attached to a swash plate. The swash plate is also known as a cam or wobble plate and attaches to a rotating shaft. As the shaft turns, the angle of the swash plate changes, which drives the pistons in and out of their respective cylinders.
Axial piston pumps main features:
1. Variable displacement axial piston pumps
2. Axial piston pumps have swash plate structure
3. Be suitable for hydrostatic transmissions with closed-loop circuit
4. Manual servo and hydraulic variable control
5. Axial piston pumps with a charging oil pump
Axial piston pumps technical specification:
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | LPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
FAQ of axial piston pumps:
Q1: Are you a manufacturer?
A: Yes, we are manufacturer to produce, design and test by ourselves.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Do you test all piston pumps before shipment?
A: Yes, we have 100% test before shipment, we must guarantee pumps quality.
