Product Details:
|
| Max.pressure: | 42mpa | Model: | HPV90 |
|---|---|---|---|
| Warranty: | 1 Year | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Structure: | Axial Piston Pump |
| Drive Model: | Hydraulic Drive | Package: | Plywood Case |
| Color: | Black | Product Name: | Lifetime Technical Support Hydraulic Piston Pumps |
| Highlight: | Well Drilling Machine Hydraulic Piston Pumps,Hydraulic Piston Pumps Variable Displacement,Variable displacement axial piston pumps HPV90 |
||

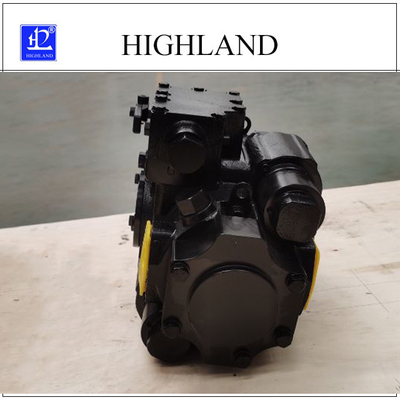

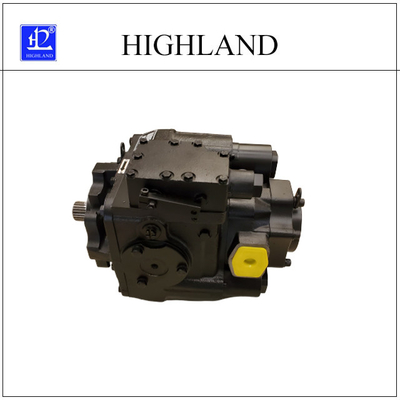

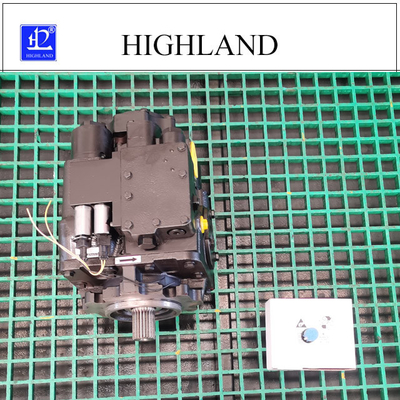

Well drilling machine hydraulic piston pumps lifetime technical support
Hydraulic piston pumps basic information:
Hydraulic piston pump is an important device in the hydraulic system. Hydraulic piston pump relies on the reciprocating motion of the plunger in the cylinder body to change the volume of the sealed working chamber to achieve oil absorption and oil pressure.
Hydraulic piston pumps main features:
Hydraulic piston pumps technical specification:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
weight |
HPV series hydraulic pump hydraulic oil drain |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HPV series hydraulic motor hydraulic oil drain |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Hydraulic piston pumps usage:
a. Piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
b. Piston pumps are used in petroleum exploration and development, petrochemical, pharmaceutical, atomic energy science, environmental science, process equipment, experimental equipment, etc.
Hydraulic piston pumps selection:
Customers should determine the following requirements before ordering:
1. Hydraulic pump and motor displacements.
2. Rotation direction of hydraulic pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic pump motor.
6. Send label or pictures as more as possible
Tags: hydraulic piston pumps, well drilling hydraulic pumps, hydraulic pumps displacement
