Product Details:
|
| Max Displacement: | 69.8ml/r | Model: | PV22 |
|---|---|---|---|
| Max.pressure: | 42mpa | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Warranty: | 1 Year |
| Package: | Plywood Case | Structure: | Axial Piston Hydraulic Pump |
| Type: | Hydraulic Power Components | Product Name: | Strong Anti-pollution Ability Hydraulic Piston Pumps |
| Highlight: | Grape Machinery Hydraulic Piston Pumps,Hydraulic Piston Pumps 69.8ml/r,Anti Pollution Axial Plunger Pump |
||

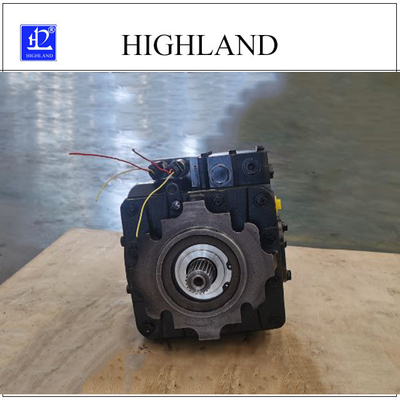

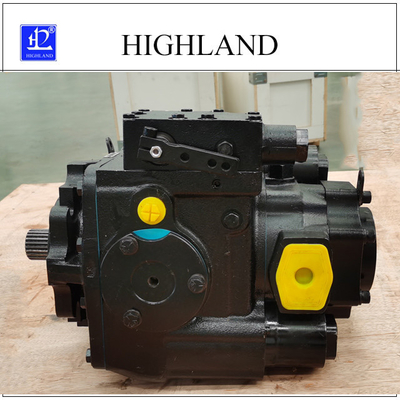

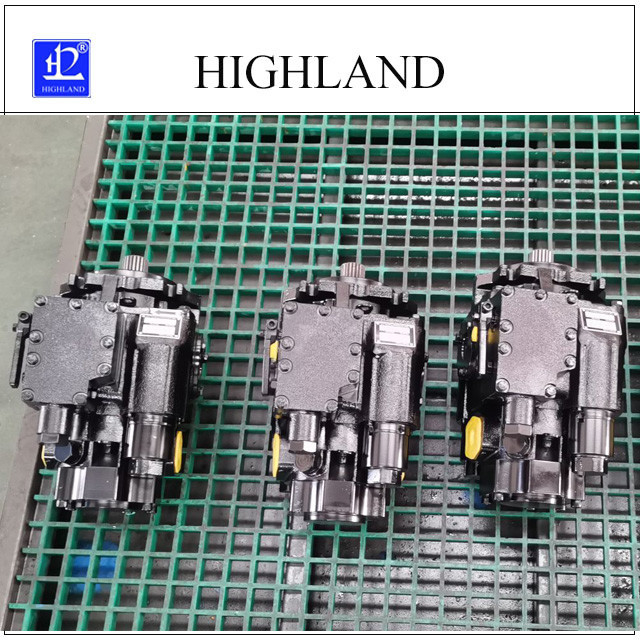

Grape machinery hydraulic piston pumps strong anti-pollution ability
Hydraulic piston pumps basic information:
The piston pump is a hydraulic pump that relies on the reciprocating motion of the piston in the cylinder to cause the change of the sealing volume to achieve oil suction and oil pressure. This pump has many advantages.
First of all, the parts constituting the sealed volume are cylindrical plungers and cylinder holes, which are easy to process, can obtain high matching accuracy, have good sealing performance, and still have high volumetric efficiency under high pressure.
Second, the flow rate can be changed only by changing the working stroke of the piston, and it is easy to realize the variable;
Third, the main parts in the piston pump are all subject to compressive stress, and the material strength properties can be fully utilized.
Because the piston pump has high pressure, compact structure, high efficiency and convenient flow adjustment, it can be used in systems that require high pressure, large flow, and high power and in occasions where the flow needs to be adjusted, such as agricultural machinery, construction machinery, mining and metallurgical machinery, and shipbuilding industry etc other wide range of applications.
Hydraulic piston pumps technical specification:
| 20 Series Technical parameter | ||||||
| Series 20 PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
20 series PV hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
20 series MF hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Hydraulic piston pumps usage:
Piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Hydraulic piston pumps fast delivery and good service:
A number of invention patents and utility model patent certification, the key components of imported raw materials. Factory direct sale, quick delivery, 1 year after sales maintenance cycle. Welcome your inquiry of hydraulic piston pumps.
Tags: hydraulic piston pumps, high efficiency hydraulic pumps, high pressure hydraulic pumps
