Product Details:
|
| Displacement: | 89.0ml/r | Model: | PV23 |
|---|---|---|---|
| Max.pressure: | 42mpa | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Color: | Black Or Custom Made | Drive Mode: | Hydraulic Drive |
| Product Name: | Quality Assurance Hydraulic Piston Pumps | ||
| Highlight: | Grass Mower Hydraulic Piston Pumps,Hydraulic Piston Pumps 89.0ml/R,PV23 High Pressure Plunger Pump |
||

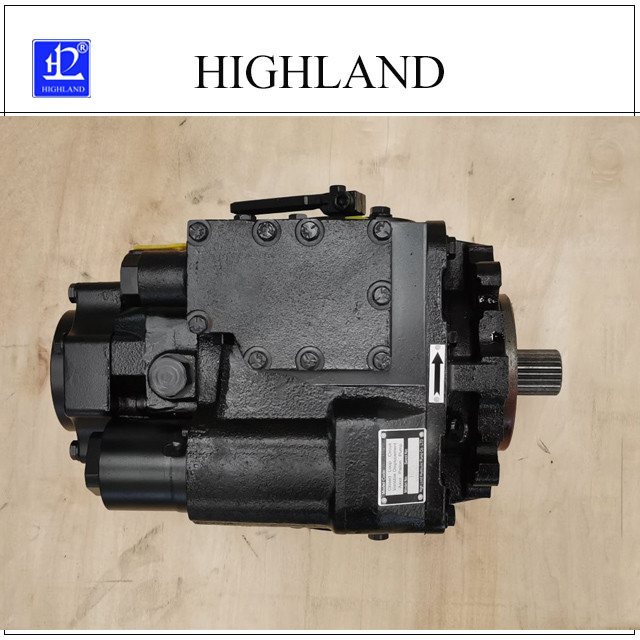

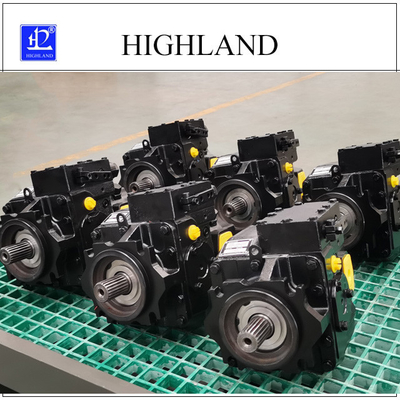

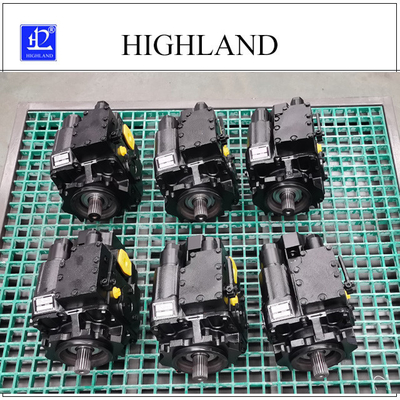

Grass mower hydraulic piston pumps reliable quality assurance
Hydraulic piston pumps basic information:
Hydraulic piston pump is an important device in the hydraulic system. It relies on the reciprocating motion of the plunger in the cylinder body to change the volume of the sealed working chamber to achieve oil absorption and oil pressure. Piston pumps have the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment. They are widely used in occasions where high pressure, large flow and flow need to be adjusted.
Hydraulic piston pumps technical specification:
| 20 Series Technical parameter | ||||||
| Series 20 PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
20 series PV hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
20 series MF hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Hydraulic oil notice of hydraulic piston pumps:
The higher the cleanliness of the hydraulic oil, the longer the service life of the hydraulic pump.
Hydraulic oil:
Generally speaking, the replacement time of hydraulic oil of sealed oil tank system is 2000hours. If the hydraulic oil is contaminated or other outside material bears abnormal running condition, the hydraulic oil should be changed often.
Hydraulic oil in the open oil tank system should be changed every 500hours. For different vehicle, the measures should determined by specific design and operational experience.
Hydraulic piston pumps FAQ:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic motor pump system.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
