Product Details:
|
| Max.displacemen: | 50ml/r | Efficiency: | 97% |
|---|---|---|---|
| Type: | Hydraulic Components | Model: | LPV50+LMF50 |
| Material: | Cast Iron | Application: | Silage Machine |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Loading Method: | Manual Loading |
| Product Name: | Silage Machine Hydraulic Motor Pump System | ||
| Highlight: | 97% Hydraulic Motor Pump System,HIGHLAND Hydraulic Motor Pump System,Silage Machine Hydraulic Motor Pump |
||

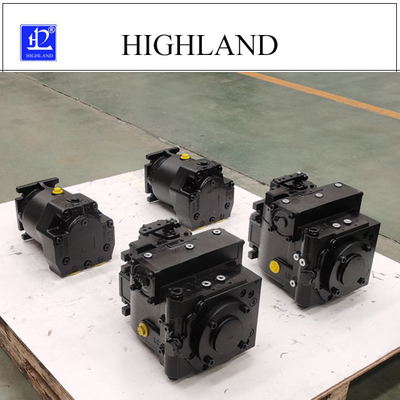

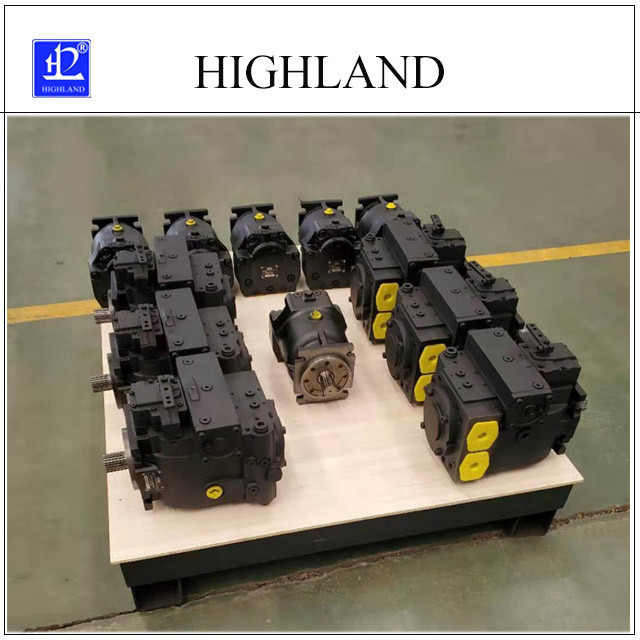

Silage machine hydraulic motor pump system Easy to disassemble
· Cast iron housing
· Efficiency 97%
· Hydraulic components
· Power components of hydraulic systems
· Higher efficiency
· Model LPV50+LMF50
· Simple layout
· System Solutions
· Application silage machine
· Work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
Silage machine hydraulic motor pump system depict:
Silage machine hydraulic motor pump system from Highland of China, we can provide silage machine hydraulic motor pump system with high quality, high-performance parameters. Pump is the variable one that is with Charge Pump, and the motor the quantitative, or variable one with valve assembly. The control way of variable displacement pump and motor can be manual or hydraulic operated, and can simply control speed, direction and power of the output shaft of hydraulic motor.
Silage machine hydraulic motor pump system user shall ensure that the hydraulic pump uses the correct formulation of the medium to ensure the cleanliness of the operating medium of the equipment, and shall not contain solid particles.
(Self-cleaning filters are recommended) and use this pump/motor wisely!
Silage machine hydraulic motor pump system specifications:
LPV Series Technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
Hydraulic oil
The suitable replacement period for hydraulic oil in a sealed tank system is 2000 hours, and more often if the hydraulic oil is contaminated with water or other external materials or subjected to abnormal operating conditions.
As a general recommendation, the 10µ inlet oil filter should be replaced every spring or every 1500 hours (whichever occurs first) on a sealed tank system, or in an open tank system with an air filter fill cap. The oil filter should be replaced every 500 hours.
Heat Exchanger
The heat exchanger core and fins are kept clean at all times for maximum cooling and system efficiency, and the exterior of the heat exchanger is checked daily for blockages and cleaned as needed.
Tank:
The tank level and the water present in the oil should be checked daily. If the tank must be filled with oil, filtered hydraulic oil must be used, and all water in the tank must be removed as required.
Silage machine hydraulic motor pump system application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for silage machine hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for silage machine hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for silage machine hydraulic motor pump system?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
