Product Details:
|
| Displacement: | 110ml/r | Max Pressure: | 42Mpa Instant |
|---|---|---|---|
| Material: | Cast Iron | Model: | HMF110 |
| Structure: | Axial Piston Motor | Color: | Black |
| Function: | Hydraulic System Components | Warranty: | 1 Year |
| Type: | Hydraulic Components | Packge: | Plywood Case |
| Highlight: | Combine Harvester Axial Piston Motor,42Mpa Axial Piston Motor,Fixed Displacement Axial Piston Motor |
||

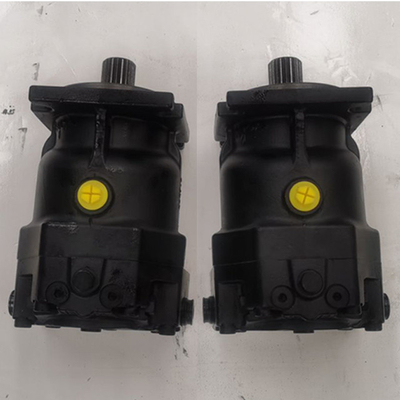

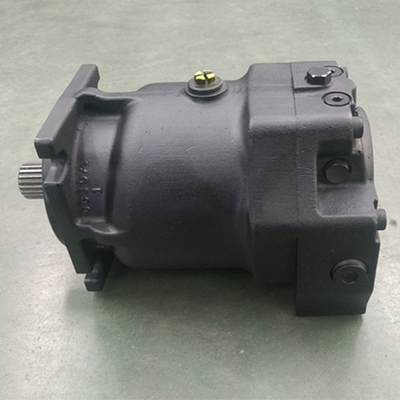

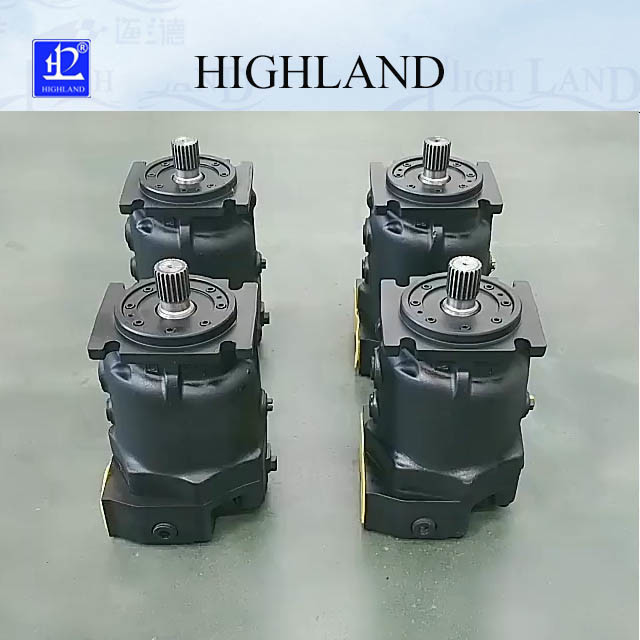

4. HMF110 Fixed Displacement Axial Piston Motor For Combine Harvester
HMF110 fixed displacement axial piston motor for combine harvester
HMF110 axial piston motor for combine harvester:
A hydraulic motor is a mechanical actuator that converts hydraulic pressure and flow into torque and angular displacement (rotation).
Our Highland hydraulic could produce fixed displacement axial piston motor for combine harvester.
Axial piston motor characteristics:
Maximize performance, efficiency, and profit
Suitable for your applications: axial piston motors can be used in overall hydraulic systems.
High efficiency: Operating at maximized efficiency, axial piston motors will help lower your total costs.
Optimized design: Compactness appearance make operating your machine as simple as possible, still providing best quality at highest standards.
Clean and flexibility: The lightweight, compact design.
Precise control and reliable quality and performance
Wide range of displacements: Offering a range of pumps with 30-130 cm² per round.
High pressure capability: Working with 420 bar transient pressure.
Combine harvester axial piston motors technical specification:
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
HIGHLAND hydraulic advantages:
Factory direct sale, competitive prices.
We are factory with quick delivery.
Capability to handle high range of pressure and flow.
Long time service life & high speed.
Easy to maintenance.
Easy to install.
Axial piston motors FAQ:
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic pumps manufacturer.
Q:What is the MOQ?
A:1pcs is also OK.
Q:How long is your warranty?
A:All our products come with an one (1) year warranty.
Q:Which payment terms could you accept?
A:Payment Terms: T/T , Western Union or Cash.
