Product Details:
|
| Application: | Closed Circuit System | Max Displacement: | 110ml/r Of HPV110 Model |
|---|---|---|---|
| Max Pressure: | 42Mpa Instant | Working Principle: | Hydraulic Transmission |
| Usage: | Combine Harvester, Mixer Truck And Tractor Etc | Type: | Hydraulic Power Components |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | highland axial piston hydraulic pumps,tractor axial piston hydraulic pumps,closed circuit system piston hydraulic pump |
||

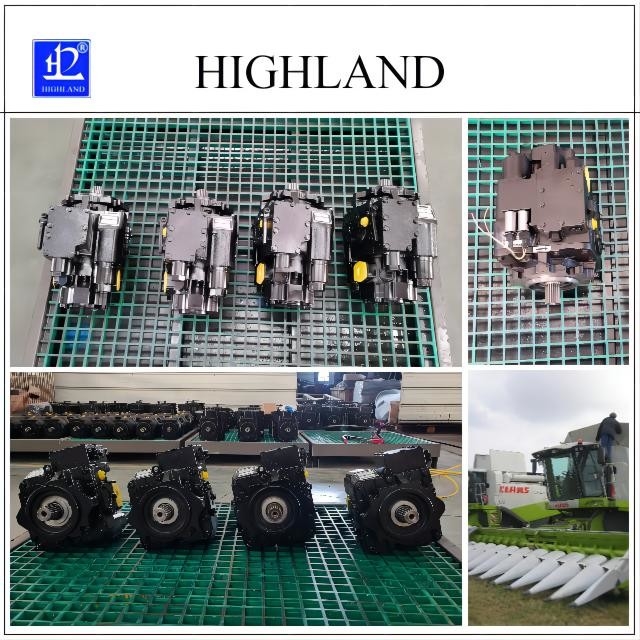

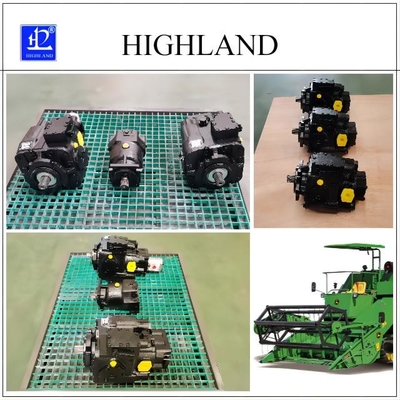

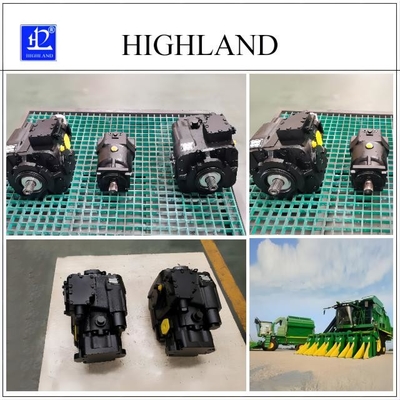

HIGHLAND Axial Piston Hydraulic Pumps For Closed Circuit System
Axial piston hydraulic pumps introduction:
High efficiency, ease of operation at high pressure and various applicable control types are the advantages of piston pumps. Pistons, the piston or cylinder block, valve plate, piston shoes, swash plate, and the drive shaft are the important components in a piston pump. Axial piston hydraulic pumps are widely used for closed circuit system, such as agricultural machinery, engineering machinery, metallurgical machinery, mining machinery, industrial machinery, combine harvester and transit mixer truck etc many machineries.
Axial piston hydraulic pumps features:
Axial piston hydraulic pumps are well engineered and easy to handle.
Bearings of piston pumps are all tapered roller bearing, which can load heavy external axial forces.
When hydraulic piston pumps operated mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Closed circuit hydraulic pump is fed directly by the hydraulic fluid returning from the actuator (hydraulic motor).
Closed circuit hydraulic pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Axial piston hydraulic pump has the advantages of simple structure, small size, light weight, low noise, and long service life.
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials; Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of axial piston hydraulic pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: all products are tested before ship, to confirm it will be working and in good conditions when customers get, test report can be sent if requested. Also warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: Axial piston hydraulic pumps, closed circuit hydraulic pumps, hydraulic pumps for closed circuit.
