Product Details:
|
| Product Model: | HPV110-MA-R-23 | Displacement: | 110ml/r |
|---|---|---|---|
| Material: | Cast Iron | Pressure: | 42Mpa Instant |
| Usage: | Combine Harvester | Structure: | Axial Piston Pumps |
| System: | Hydraulic Pump System | Warranty: | 1 Year |
| Highlight: | combine harvester hydraulic piston pumps,hpv110 hydraulic piston pumps,42mpa axle piston pump |
||

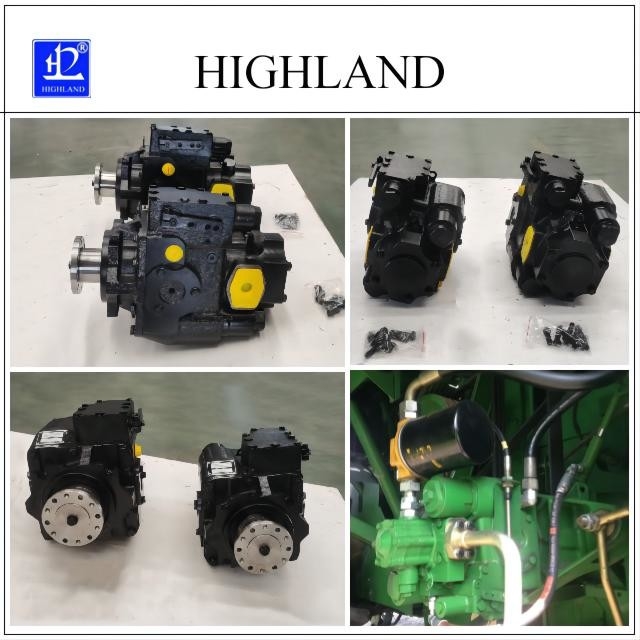

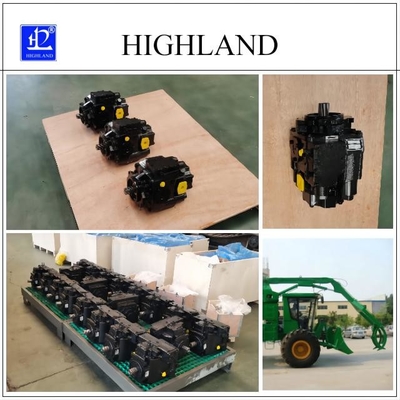

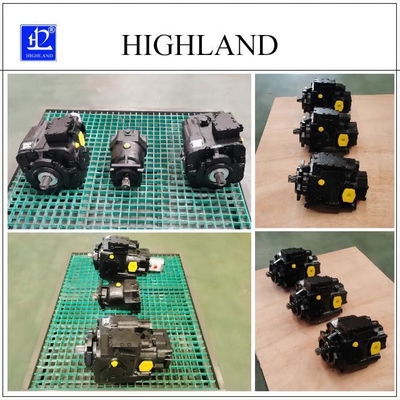

Highland 42mpa Hydraulic Piston Pumps HPV110 For Combine Harvester
Hydraulic piston pumps introduction:
We Highland hydraulic produce 42Mpa high pressure hydraulic piston pumps HPV110 for combine harvester hydraulic system. Our hydraulic piston pumps have high volumetric efficiency, small leakage, high performance and high quality, which can work under high pressure, but their structure is complex and much high request on oil cleanliness.
Axial piston pumps features:
1. Hydraulic piston pumps have high pressure 42Mpa
2. Hydraulic piston pumps can be used for combine harvester
3. Variable displacement hydraulic axial piston pump
4. Have swash plate structure for reliable operation and a longer life
5. Be suitable for hydrostatic transmissions with closed-loop circuit
6. Manual servo and hydraulic variable control
7. Variable Displacement Pumps with a charging oil pump and Fixed Displacement Motor with an integrated valve.
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials; Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic motor pump system.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
