Product Details:
|
| Model: | HPV90 Piston Pump | Max Displacement: | 90ml/r Displacement |
|---|---|---|---|
| Max Pressure Instant: | 42Mpa Instant | Rater Pressure: | 35Mpa |
| Usage: | Combine Harvester, Mixer Truck And Tractor Etc | Type: | Hydraulic System Component |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | high pressure hydraulic axial piston pumps,hpv90 hydraulic axial piston pumps |
||

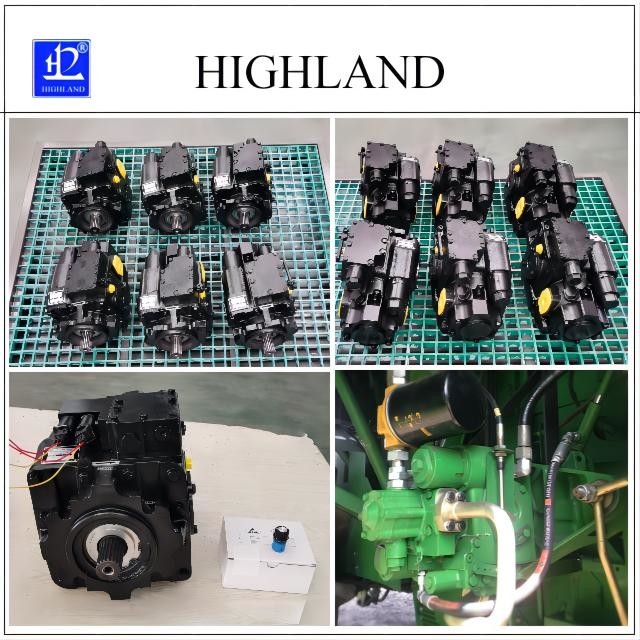

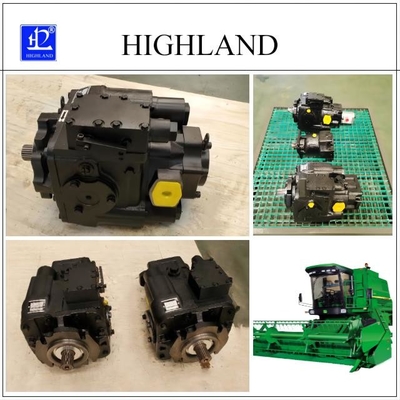

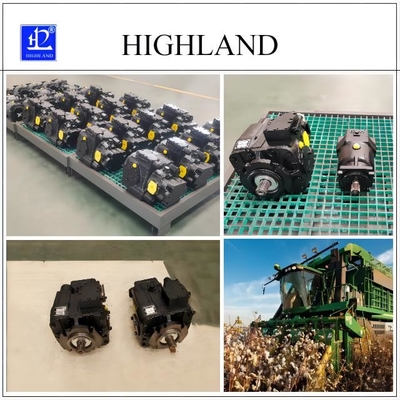

Highland High Pressure Hydraulic Axial Flow Piston Pumps HPV90
Hydraulic Axial Flow Piston Pump Application:
Construction machinery hydraulic piston pumps: Mixer truck, concrete mixer truck, cement mixer truck;
Coal mining machinery hydraulic piston pumps: scraper, underground mining truck, trencher and ditcher;
Industry hydraulic piston pumps: pharmaceutical machinery;
Transport vehicles hydraulic piston pumps: road rollers, concrete pump trucks, stabilized soil mixers.
Our hydraulic axial flow piston pumps have the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment. They are widely used in occasions where high pressure, large flow and flow need to be adjusted. Our hydraulic pumps have wide range of displacements: Offering a range of pumps with 30-130 cm² per round. And our hydraulic pumps have high pressure capability: keep high performance of working conditions at 420 Bar instantaneous high pressure situation.
Hydraulic axial flow piston pumps features:
1. High efficiency, durable, robust design meets the demands of harsh work conditions for applications
2. Hydraulic piston pumps have swash plate structure.
3. Be Suitable for closed-loop circuit system.
4. Hydraulic pumps have manual servo and hydraulic variable control mode.
5. Hydraulic pumps are variable displacement pumps with a charging oil pump.
HPV90 Hydraulic axial flow piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service for axial flow piston pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials; Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of hydraulic axial flow piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: hydraulic axial flow piston pump, high pressure hydraulic pump, HPV90 hydraulic pump
