Product Details:
|
| Model: | HPV110 Piston Pump | Max Displacement: | 110ml/r Displacement |
|---|---|---|---|
| Max Pressure: | 42Mpa Instant | Rater Pressure: | 35Mpa Pressure |
| Usage: | Combine Harvester, Mixer Truck Etc | Type: | Hydraulic System Component |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | Variable Displacement Piston Pump,Highland Piston Pump,HPV110 Piston Pump |
||

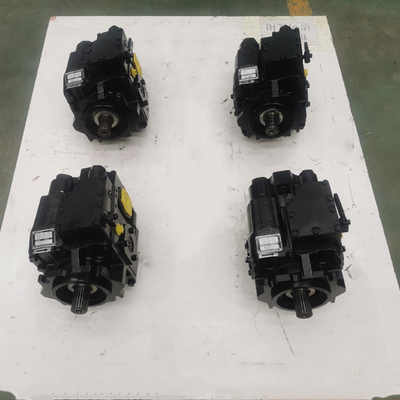

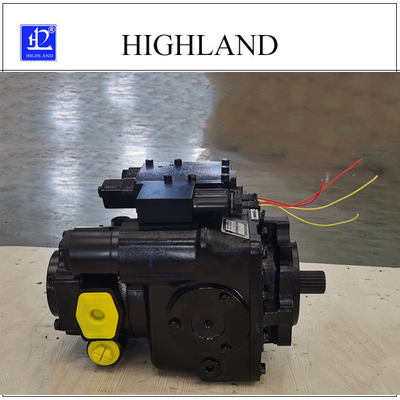

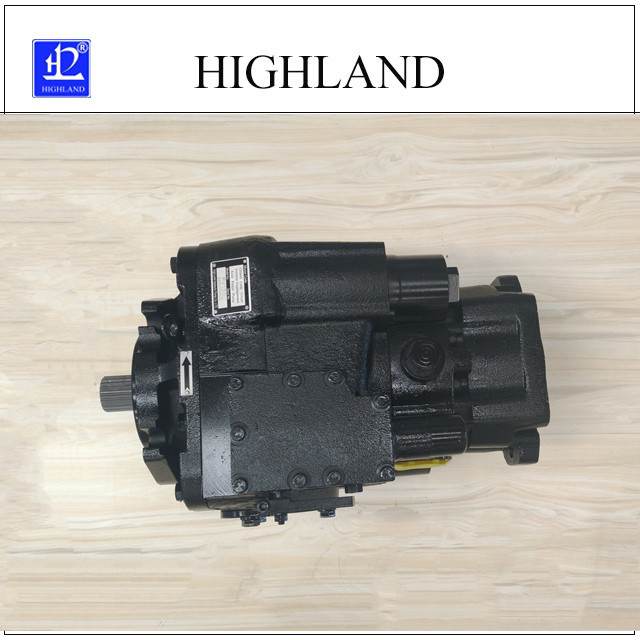

Highland Piston Pump Hydraulic Variable Displacement For Sale
Piston pump hydraulic introduction:
Piston pump hydraulic with big displacement, high performance and high efficiency, could work fast and well. Nowadays variable piston hydraulic pump is very popular all over the world. It is used for driving mobile machines like agricultural harvesters and transit mixer etc. The control system of piston pump hydraulic can be hydro mechanical control system.
Piston pump hydraulic features:
Piston pumps hydraulic are well engineered and easy to handle.
Bearings of piston pumps are all tapered roller bearing, which can load heavy external axial forces.
When piston pumps hydraulic operate mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Piston pump hydraulic technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service:
Seiko manufacturing
Adequate supply of goods, manufacturers direct sales, low product prices.
Product process is constantly updated and upgraded, the hydraulic pump is exported to all over the world.
Never ignore a detail to treat each customer carefully.
Lightning supply
Regular single product Supply for immediate delivery, batch can be quickly shipped according to customer demand; Commitment to warranty hydraulic pump and hydraulic motor within one year; Provide personalized and customized services according to customer needs;
FAQ of piston pump hydraulic:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: piston pumps hydraulic, variable displacement piston pump, hydraulic variable displacement pumps
