Product Details:
|
| Model: | HPV110 Variable Displacement | Max Displacement: | 110ml/r |
|---|---|---|---|
| Max Pressure: | 42Mpa Instant | Rater Pressure: | 35Mpa Pressure |
| Usage: | Combine Harvester Etc | Type: | Hydraulic System Component |
| Color: | Black, Blue Etc | Warranty: | 1 Year |
| Highlight: | Highland High Pressure Hydraulic Pump,Hydraulic Pump Displacement Axial Piston,Hydraulic Piston Pumps High Pressure |
||

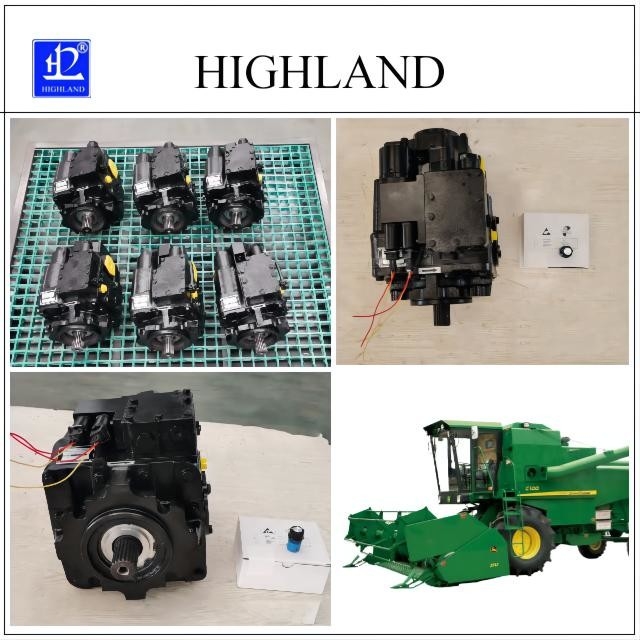

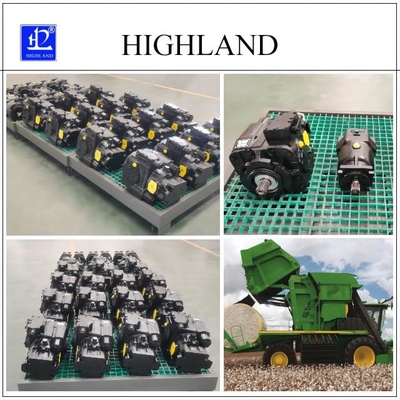

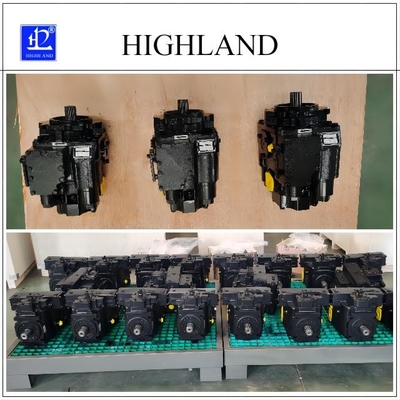

Highland High Pressure Hydraulic Pump Displacement Axial Piston
Hydraulic Pump Displacement Axial Piston introduction:
Hydraulic pump plays an important part in the combine harvester hydraulic system and concrete mixer hydraulic system. Our hydraulic pump displacement is variable displacement axial piston, which has the advantages of high rated pressure, big displacement, compact structure, high volumetric efficiency and convenient flow adjustment. They are widely used in many occasions, such as agricultural machinery, construction machiney, mining equipment etc.
Hydraulic Pump Displacement features:
1. Hydraulic Pump Displacement Variable Displacement
2. Have Swash Plate Structure
3. Be Suitable for Hydrostatic transmissions with closed-loop circuit hydraulic system
4. Manual Servo and Hydraulic Variable control
5. Variable Displacement Pumps with a charging oil pump and Fixed Displacement Motor with an integrated valve.
Hydraulic pump displacement technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service for hydraulic pump displacement axial piston:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials; Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of axial piston hydraulic pump:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: hydraulic pump displacement, hydraulic pump axial piston, axial piston hydraulic pump
