Product Details:
|
| Model: | HPV90-MA-R-23 | Max Displacement: | 90ml/r |
|---|---|---|---|
| Material: | Cast Iron | Max Pressure: | 42Mpa Instant Pressure |
| Usage: | Harvester, Road Roller, Mixer Truck | Type: | Hydraulic System Component |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | 90ml/r Piston Type Hydraulic Pump,90ml/R Axial Piston Pump,Variable Displacement Hydraulic Piston Pumps |
||

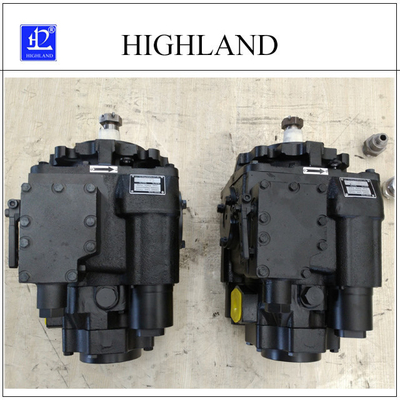

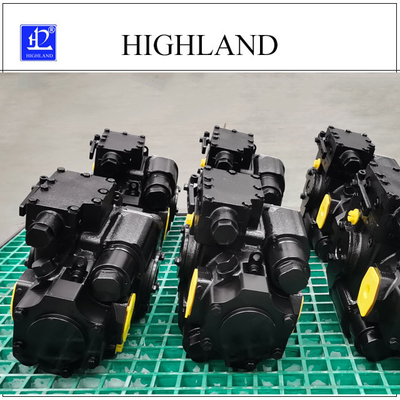

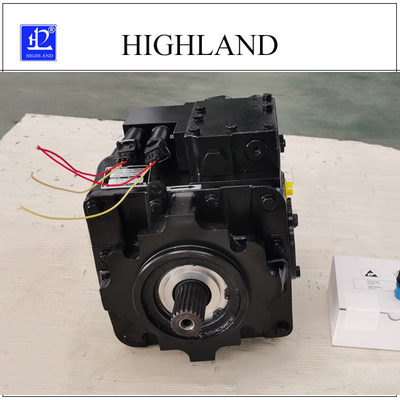

Highland Variable Displacement Piston Type Axial Flow Hydraulic Pump
Variable Displacement Piston Type Hydraulic Pump introduction:
Hydraulic pump has high volumetric efficiency, small leakage and variable displacement piston type, which can work under high pressure, mostly used in high power hydraulic system, with complex structure, high material and processing accuracy, high cleanliness of oil requirements. By designing and manufacturing static hydraulic transmission, we can provide axial flow hydraulic pump and hydraulic motor assembly and hydraulic system with high quality, high-performance parameters.
Variable Displacement Piston Type Hydraulic Pump features:
Variable displacement piston type hydraulic piston pump is well engineered and easy to handle.
Bearings of axial flow piston hydraulic pumps are all tapered roller bearing, which can load heavy external axial forces.
When hydraulic pumps operated mechanically, the servo displacement can control variable displacement and keep the angle of swash plate and pump displacement.
Axial Flow Hydraulic Pump technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials; Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic motor pump system.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
