Product Details:
|
| Max.displacemen: | 110cc/r+110cc/r | Rated Pressure: | 350Bar Tandem Hydraulic Pump |
|---|---|---|---|
| Max Pressure: | 420Bar Tandem Hydraulic Pump | Material: | Cast Iron |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Product Nam: | Discover The Power Of Tandem Hydraulic Pumps With Cast Iron Construction For Unbeatable Performance | Rotation Direction: | Left Or Right |
| Highlight: | Tandem Hydraulic Pumps Cast Iron,Tandem Hydraulic Pumps Cast Iron,Tandem Hydraulic Pumps Unbeatable |
||

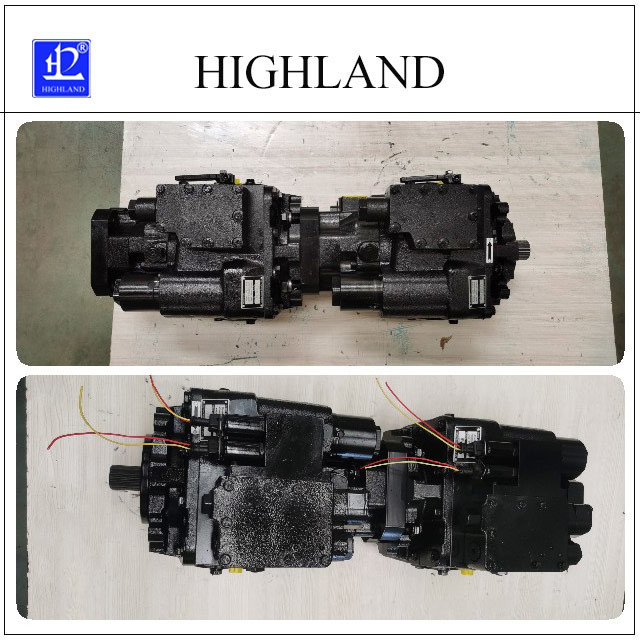

Discover The Power Of Tandem Hydraulic Pumps With Cast Iron Construction For Unbeatable Performance
Highland Tandem Hydraulic Pumps Custom Manufacturing And Design
Tandem hydraulic pumps basic information:
We could produce tandem hydraulic pumps, treble pump and quadruple pump with custom manufacturing and design.
Our tandem hydraulic pumps are axial piston variable displacement pumps connecting same piston pumps or gear pumps. Tandem hydraulic pumps are intended for closed circuit hydraulic system applications. The flow rate is proportional to the pump input speed and displacement. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reversed by tilting the swash plate to the opposite side of the neutral (zero displacement) position.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
| HPV hydraulic pump and HMF hydraulic motor series | ||||||||
| Displacement | Max displacement | ml/r | 110+110 | |||||
| Speed | Max continuous working speed (Full load condition) |
r/min | 2900 | |||||
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 535.3 | |||||
| Max output torque | Nm | 749 | ||||||
| Power | Continuous output power | KW | 149 | |||||
| Max power | KW | 173 | ||||||
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 | |||||
Hydraulic usage of tandem hydraulic pumps:
Tandem hydraulic pumps are generally used in hydraulic transmission system, especially widely used in high-power hydraulic transmission system, such as agricultural machinery equipment, construction machinery, coal mining industry, oil exploration, aerospace industry and shipbuilding industry.
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer needs;
Hydraulic oil notice of tandem hydraulic pumps:
To ensure optimal performance and longevity of your tandem hydraulic pump system, please adhere to the following guidelines:
Only use hydraulic oil that meets or exceeds the manufacturer's recommendations.
Do not mix different types of hydraulic oil or brands, as this can lead to chemical conflicts that can damage the system.
Check the hydraulic oil level regularly and maintain it at the proper level using the recommended oil.
If you are unsure about which type of hydraulic oil to use, consult your manufacturer's instructions or contact a qualified professional.
By following these guidelines, you can help ensure the long-term reliability and performance of your tandem hydraulic pump system. Thank you for choosing our product, and please do not hesitate to contact us if you have any questions or concerns
FAQ of tandem hydraulic pumps:
Q1, Are you a factory or trading company?
A: We are a factory integrating research, development, production and sales.
Q2, What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3, How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the model and
the quantity of your order.
Q4, How can I get the new price of a product?
A: Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give
you the price accordingly.
Q5, How do you make a price offer and how long is its validity?
A: We usually quote within 24 hours by email after we get your inquiry .If you are very urgent to get the price,please call us or
tell us in your email so that we will regard your inquiry priority. The price valid within 7 days.
Q6, Do you accept small order or Sample order?
A: Yes, we also accept sample order.
Q7, Do you accept third party inspection?
A: Yes, we do.
Q8, Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9, How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter.
