Product Details:
|
| Model: | HPV90 Piston Hydraulic Pumps | Max Displacement: | 90ml/r For HPV90 Model |
|---|---|---|---|
| Max Pressure: | 42Mpa Instant Pressure | Rater Pressure: | 35Mpa |
| Usage: | Combine Harvester, Mixer Truck Etc Industry | Type: | Hydraulic System Components |
| Color: | Black, Blue | Warranty: | 1 Year |
| Highlight: | Hydraulic Axial Piston Pumps HPV90,HPV90 Hydromatik Hydraulic Pump,Tapered Hydraulic Axial Piston Pumps |
||

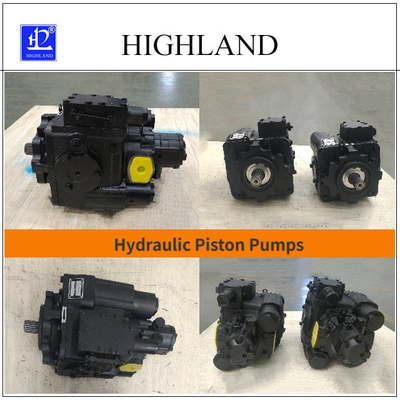

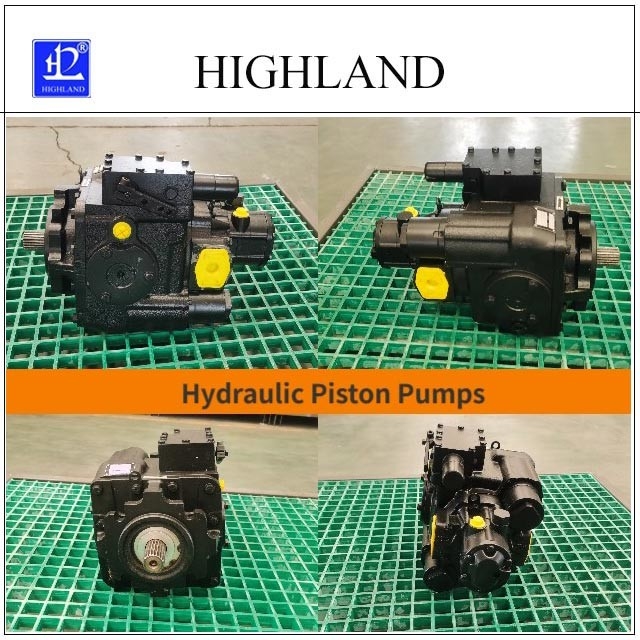

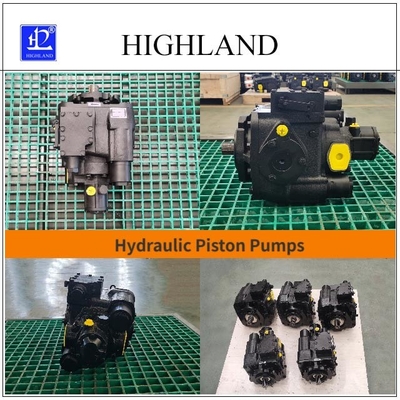

Highland Axial Tapered Piston HPV90 Hydromatik Hydraulic Pump
HPV90 Hydromatik Hydraulic Pump introduction:
HPV110 hydromatik hydraulic pump with big displacement 110ml/r, high performance and high efficiency, could work fast and well. Nowadays HPV110 model hydromatik pump is very popular all over the world. It is used for driving mobile machines like harvesters and transit mixer etc. The control system of HPV110 hydraulic piston pump can be hydro mechanical control system.
HPV90 axial tapered piston pump features:
Hydraulic piston pumps are well engineered and easy to handle.
Bearings of piston pumps are all tapered roller bearing, which can load heavy external axial forces.
When hydraulic piston pumps operated mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Highland after-sale service:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Fast delivery and good service
A number of invention patents and utility model patent certification, the key components of imported raw materials; Order 7 ~ 20 days fast delivery, 1 year after sales maintenance cycle, for your risk.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: hydromatik pump, axial piston pump, HPV90 hydraulic pump
