Product Details:
|
| Features: | Easy Maintenance | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | HMF90 | Type: | Hydraulic Components |
| Application: | Mobile Crusher Heavy Duty Hydraulic Motors | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | HMF90 The Industrial Workhorse: An In-depth Look At Heavy Duty Hydraulic Motors |
| High Light: | HMF90 Industrial Hydraulic Motors,HMF90 Heavy Duty Hydraulic Motors,Max 42mpa Heavy Duty Hydraulic Motors |
||

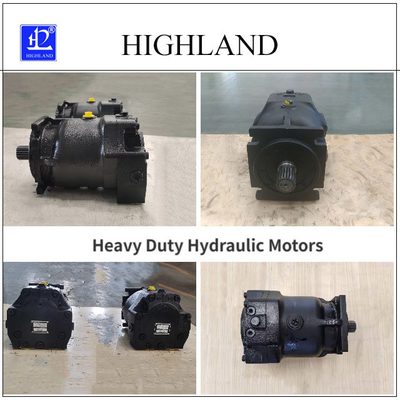

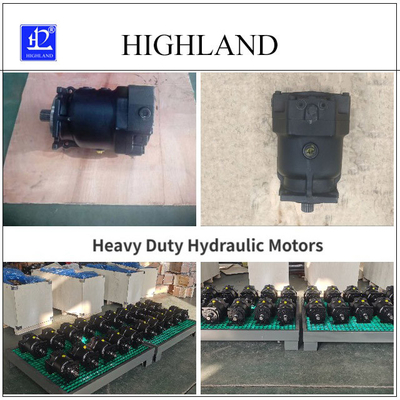

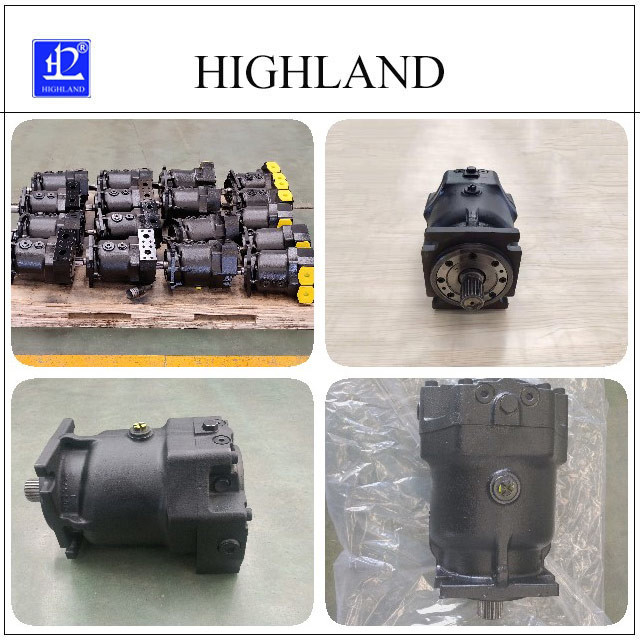

HMF90 The Industrial Workhorse: An In-depth Look at Heavy Duty Hydraulic Motors
Quick Detail:
·Cast iron housing
·Hydraulic components
·Model HMF90
·Hydraulic system power components
·Principle hydraulic transmission
·Features easy maintenance
·Simple layout
·System Solutions
·Work fast
·Fully replace imported products
·Patent certificate certification
·Application mobile crusher heavy duty hydraulic motors
·1 year warranty
Description:
Heavy duty hydraulic motors features:
Designed to operate under challenging conditions, Heavy Duty Hydraulic Motors are the workhorses of the mechanical world. They transform the kinetic energy of pressurized hydraulic fluid into mechanical energy, providing powerful rotational force for heavy-duty applications. They are renowned for their durability, efficiency, and ability to handle high load capacities, and are commonly employed in industries that require heavy lifting and precise movements.
HMF Series Technical parameter:
| HMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
Regular Maintenance: Heavy Duty Hydraulic Motors are designed for extreme conditions, but they also require regular maintenance to ensure their durability and performance. This includes checking and replacing hydraulic fluid as needed, regularly inspecting the motor for signs of wear and tear, and promptly addressing any issues that arise. Neglecting regular maintenance can result in decreased efficiency, increased wear, and potential motor failure.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for mobile crusher heavy duty hydraulic motors ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for mobile crusher heavy duty hydraulic motors ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for mobile crusher heavy duty hydraulic motors ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation
