Product Details:
|
| Model: | HPV110 Hydraulic Pump | Max Displacement: | 110ml/r For HPV110 Pump |
|---|---|---|---|
| Maximum Pressure: | 42Mpa Pressure | Rater Pressure: | 35Mpa Pressure |
| Usage: | Harvester, Mixer Truck Etc | Type: | Hydraulic System Component |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | HPV110 Axial Piston Variable Pump,Hydraulic Plunger Pump HPV110,110ml/r axial variable displacement pump |
||

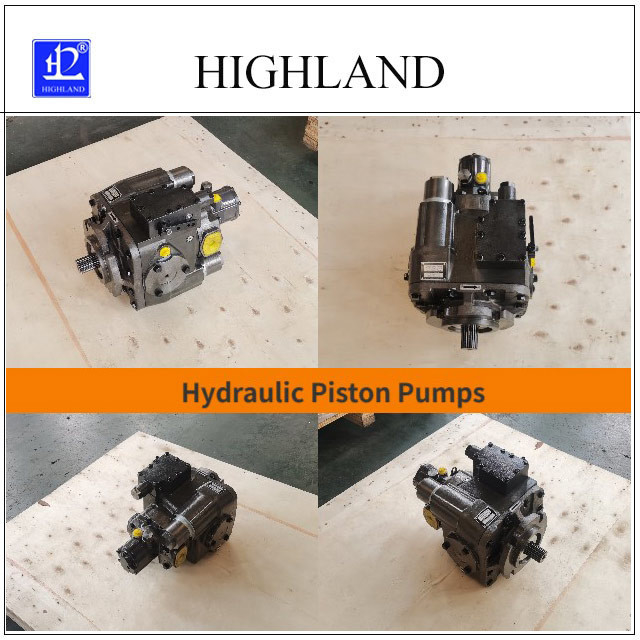

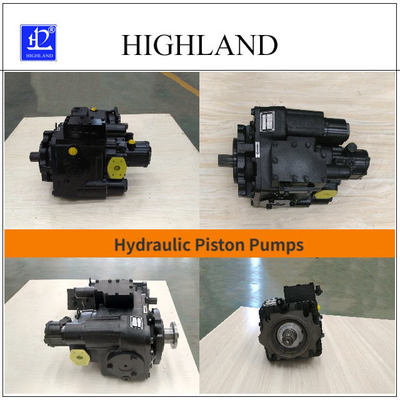

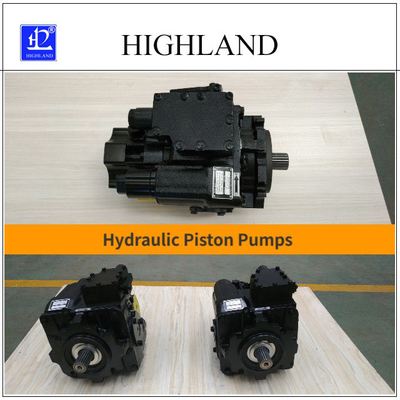

Highland Manufacturer Axial Piston Variable Pump Hydraulic Plunger Pump HPV110
Hydraulic plunger pump introduction:
HPV110 axial piston variable hydraulic plunger pump is an important part in the mixer or harvester hydraulic system. Our hydraulic plunger pumps have the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment. They are widely used in occasions where high pressure, large flow and flow need to be adjusted.
Hydraulic plunger pumps features:
Hydraulic plunger pumps are well engineered and easy to handle.
Bearings of axial piston pumps are all tapered roller bearing, which can load heavy external axial forces.
When hydraulic plunger pumps operated mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Upon release of the control handle, swash plate of hydraulic piston pump return to zero position automatically and the flow reduces to zero.
HPV110 hydraulic plunger pump technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 |
|
Hydraulic plunger pumps advantages:
Advantages: high pressure resistance, high efficiency, large transmission power, wide speed range, long life, but piston pumps have strict requirements on the cleanliness of the working medium.
Quality enterprise, trustworthy.
Factory direct sales, one year warranty.
Hydraulic technical support, one-stop service system.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty: 1 year.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: axial piston pump, variable displacement plunger pump, hydraulic plunger pump
