Product Details:
|
| Model: | HPV90+HMF90 | Type: | Hydraulic Components |
|---|---|---|---|
| Net Weight: | 108 Kg | Material: | Cast Iron |
| Application: | Wheat Harvester | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Tractor Hydraulic Transmission System Customized HPV90+HMF90 |
| Highlight: | Hydraulic Transmission System HPV90,Tractor Hydraulic Transmission System,Hydraulic Transmission System HMF90 |
||

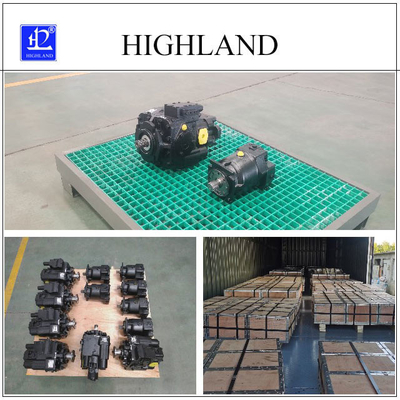

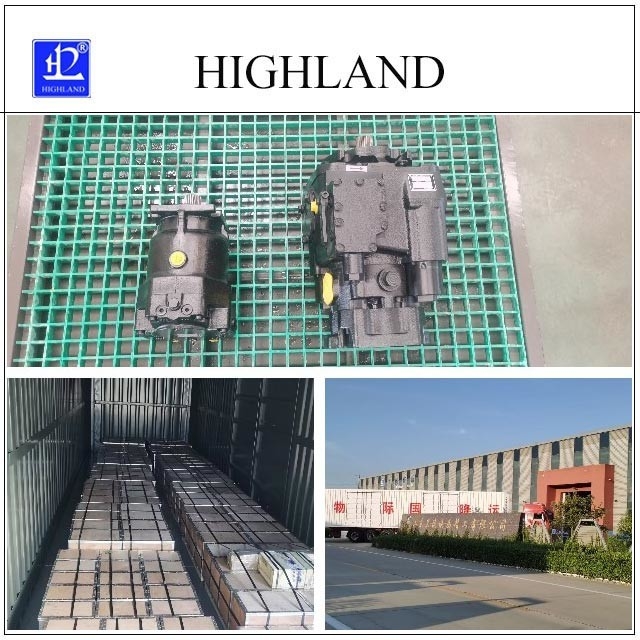

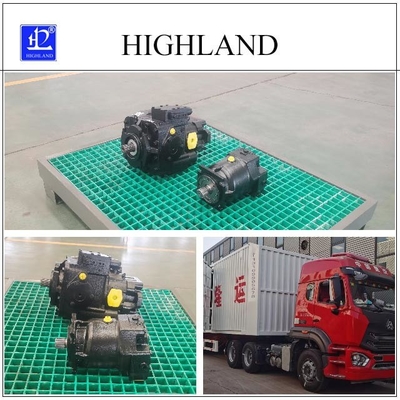

Tractor hydraulic transmission system customized HPV90+HMF90
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model HPV90+HMF90
· Power components of hydraulic systems
· Higher efficiency
· Net weight 108kg
· Simple layout
· Application wheat harvester
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
Hydrostatic Transmission information:
"Optimize your Dredging and Trenching machinery with our custom Hydraulic Drive System, PV110+MF110. This tailor-made solution ensures superior efficiency and performance for your operations, designed specifically to meet the challenges of dredging and trenching work. The PV110+MF110 system combines power and reliability, providing a durable, high-performing solution that enhances the longevity and operational efficiency of your machinery. Upgrade your equipment with our custom PV110+MF110 Hydraulic Drive System for a smoother, more reliable dredging and trenching process."
Specifications
HPV and HMF Series Technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices
Operator Training: Operators should be properly trained to handle and operate the hydraulic drive system. This includes understanding all safety procedures and regulations.
Regular Inspections: Before each use, perform a thorough inspection of the hydraulic drive system to check for any signs of wear, leaks, or other potential issues.
Hydraulic Oil Maintenance: Regularly check the level and quality of the hydraulic oil. If the oil is contaminated or degraded, it should be replaced immediately.
Overheating Prevention: Continuous use of the system can lead to overheating. Regularly monitor the temperature of the hydraulic system and implement cooling measures when necessary.
Correct Operation: Always operate the hydraulic drive system as per the manufacturer's instructions. Incorrect operation can lead to malfunctions, potentially resulting in equipment damage or personal injury.
Proper Storage: When not in use, store the hydraulic drive system in a dry, clean, and dust-free environment to prevent rust or contamination.
Professional Maintenance: If there's a decrease in system performance or a malfunction, stop using it immediately and contact a professional technician for inspection and repair. Don't attempt to solve the problem on your own, as it could lead to further equipment damage.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for wheat harvester hydraulic drive system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for wheat harvester hydraulic drive system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for wheat harvester hydraulic drive system?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
