Product Details:
|
| Product Name: | HPV90 Axial Flow Hydraulic Piston Pump | Material: | Carbon Steel |
|---|---|---|---|
| Power Source: | Hydraulic | Max Pressure: | 420Bar |
| Warranty: | 1 Year | Pressure Range: | High Pressure |
| Standard Export Package: | Plywood Case And Pallet | Application: | Agricultural Harvester Or Mixer Truck |
| Highlight: | Construction Hydraulic Piston Pumps 420Bar,HPV90 Axial Flow Hydraulic Piston Pump,Construction Machinery Axial Flow Pumps |
||

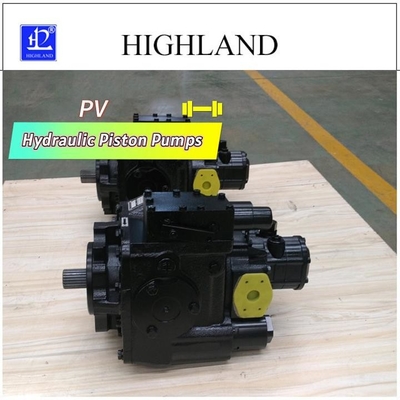

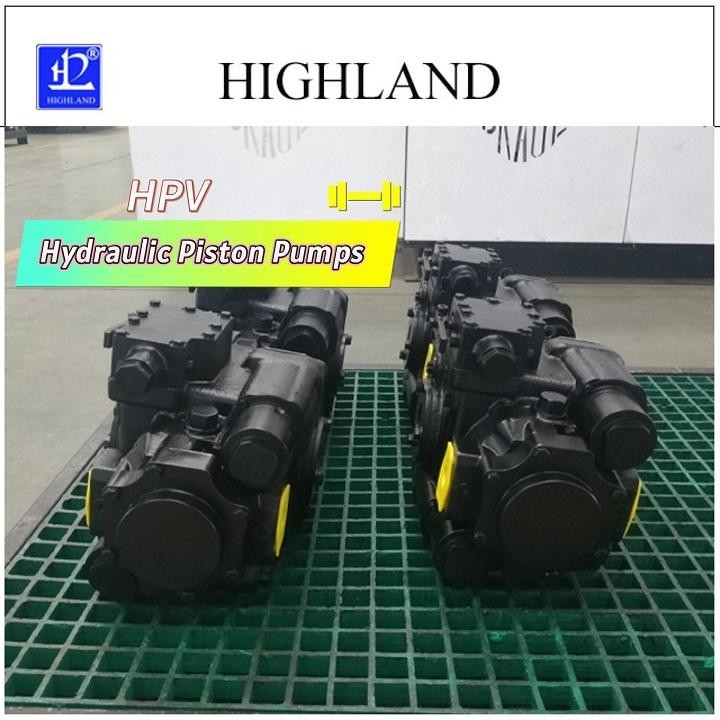

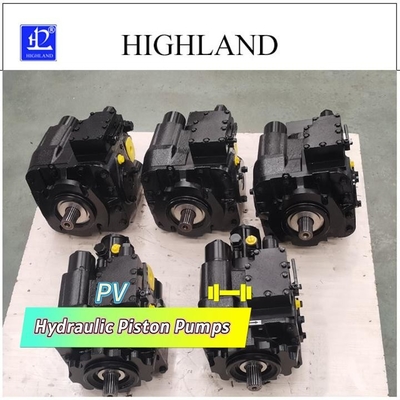

Highland High Efficiency HPV90 Axial Flow Hydraulic Piston Pump For Construction Machinery
Product Description:
We offer our clients the capability to design and manufacture static hydraulic transmission components that provide high-quality performance.
Our HPV90 hydraulic pump is a variable one, equipped with charge pump. Control of the HPV90 variable displacement pump and motor can be manual or hydraulic operated; they provide simple control of the output of the motor's speed, direction and power.
HPV90 Hydraulic Pump Features:
The HPV90 hydraulic pump stands out for its various features. Firstly, it boasts an axial variable displacement piston pump and swash plate structure, making it an ideal choice for hydrostatic transmissions with closed loop circuits. Additionally, it comes with manual servo and hydraulic variable control and can be furnished with a variable displacement pump that comes with a charging oil pump and a fixed displacement motor with an integrated valve.
It is a reliable, powerful and precise hydraulic pump that helps deliver better performance in a wide range of applications. Owing to the high output pressure, it can power hydraulic systems with greater force and precision. Plus, its efficient design allows for low power consumption, helping you cut back on energy costs.
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic piston pump application:
A hydraulic piston pump is a type of positive displacement pump that uses a reciprocating piston to move fluid through a cylinder. Hydraulic piston pumps are widely used in various applications, such as hydraulic systems, combine harvester hydraulic system, mixer truck hydraulic system and agricultural machinery hydraulic system etc machinry. Hydraulic piston pumps have several advantages over other types of pumps, such as high efficiency, high pressure capability, and low maintenance.
High efficiency hydraulic piston pump FAQ.:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 40% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic motor pump system.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
