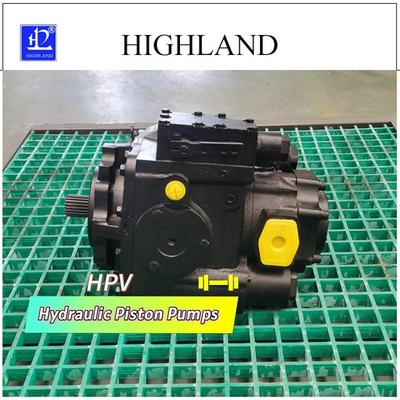

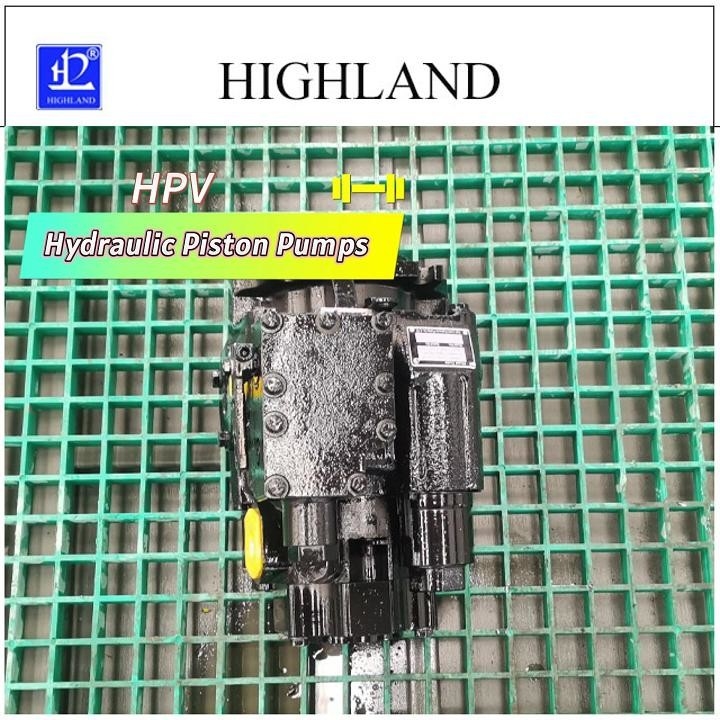

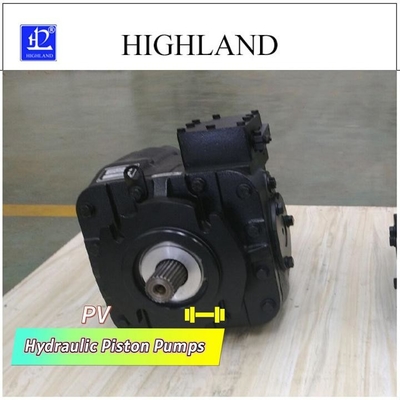

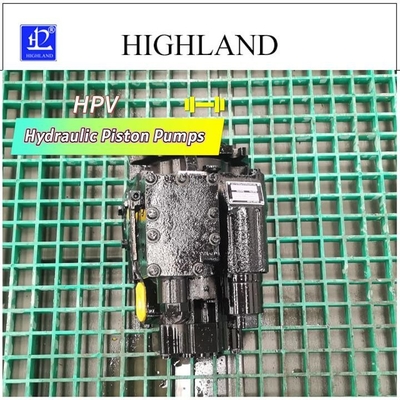

Product Details:
|
| Product Name: | 90ml/R Displacement HPV90 High Pressure Hydraulic Axial Piston Pump | Material: | Carbon Steel |
|---|---|---|---|
| Max Pressure: | 420Bar | Rated Pressure: | 350Bar |
| Pressure Range: | High Pressure | Type: | Piston Pump |
| Warranty: | 1 Year | Color: | Black |
| Highlight: | Axial Hydraulic Pump 90ml/R,High Pressure Hydraulic Axial Piston Pump,Hydraulic Axial Piston Pump HPV90 |
||
110ml/R Displacement HPV90 Hydraulic Piston Pump
Product Description:
Through designing and manufacturing static hydraulic transmission, we are now able to offer a high quality and high-performance axial hydraulic pump and hydraulic motor assembly, as well as a hydraulic system.
Specifically, our HPV110 hydraulic pump is the variable type with built-in charge pump. Moreover, its controlling manner can be manual or hydraulic operated, allowing you to easily control the speed, power, and direction of the output shaft of the hydraulic motor.
HPV90 Hydraulic Piston Pump Features:
HPV90 hydraulic pump provides a wide range of features to serve the needs of customers.
Firstly, it is equipped with axial variable displacement piston pump, which uses the swash plate structure. Secondly, it can be used in the hydrostatic transmissions with the closed loop circuit. In addition, it comes with two control modes, manual servo and hydraulic variable control. Lastly, it contains a variable displacement pump coupled with a charging oil pump and a fixed displacement motor integrated with a valve. In conclusion, HPV90 hydraulic pump provides numerous features for customers.
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
HPV90 Hydraulic Piston Pump Applications:
Our HPV90 hydraulic piston pumps are carefully processed to maintain high reliability and quality, as well as offering a timely delivery.
Including static hydraulic gearing selection and use, we provide excellent customer services.
HPV90 hydraulic pumps are highly applicable and can be used in many fields, such as agricultural machinery, combine harvester, engineering machinery, mixer trucks, mining machinery LHD trucks, hydraulic engineering machinery in aviation and transportation as well as other related equipment.
HPV90 Hydraulic Piston Pump FAQ:
Tags: HPV90 hydraulic pumps, Hydraulic pump application, Hydraulic piston pump
