Product Details:
|
| Product Name: | HPV90-MA-R-23 Hydraulic Piston Pump | Material: | Carbon Steel |
|---|---|---|---|
| Pressure Range: | High Pressure | Product Name: | Hydraulic Piston Pumps |
| Max Continuous Working Speed: | 2900rpm | Max Pressure: | 420Bar |
| Application: | Agricultural Harvester Or Mixer Truck | Standard Export Package: | Plywood Case And Pallet |
| Highlight: | Hydraulic Piston Pump HPV90,420Bar High Pressure Hydraulic Piston Pump,Mixer Truck Axial Piston Pump |
||

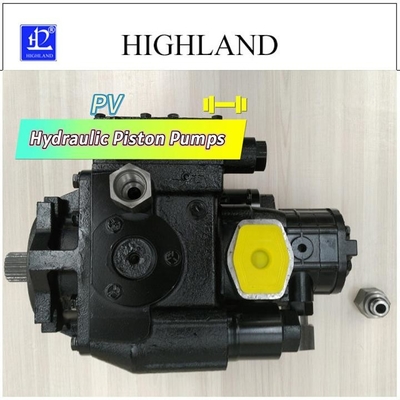

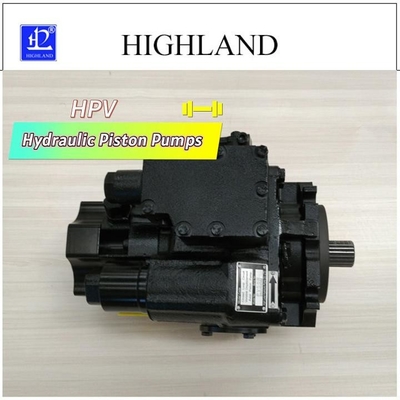

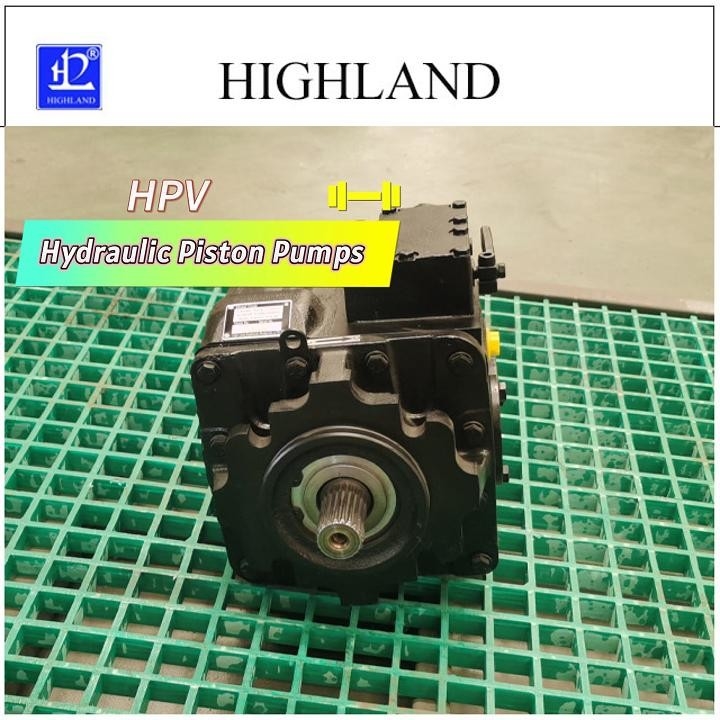

Highland 420Bar High Pressure HPV90-MA-R-23 Hydraulic Piston Pump
We at Shandong Highland Hydraulic Seiko Co., Ltd. strive to provide our customers with the highest-quality, highest-performing hydraulic systems possible. To do this, we design and manufacture static hydraulic transmissions.
We offer a hydraulic pump and motor assembly that will fit many of our customers’ needs. Our HPV90 hydraulic pump is variable with a charge pump that can be manually or hydraulically operated. With it, you will be able to easily control the speed, direction, and power of the output shaft of the hydraulic motor.
HPV90 hydraulic pump is specially designed for hydrostatic power transmission with many outstanding features. Among them, the axial variable displacement piston pump is taking the lead with its swash plate structure. Such design is suitable for applications with closed loop circuit. Also, it is equipped with manual servo and hydraulic variable control for power adjustment in various situations. Additionally, it comes with variable displacement pumps with integrated charging oil pumps and fixed displacement motor.
HPV Series Hydraulic Piston Pump Technical Parameters:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
weight |
HPV series hydraulic pump hydraulic oil emptying |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Hydraulic Piston Pumps Applications:
Our HPV90 hydraulic piston pumps are carefully processed with reliable quality and prompt delivery. We also provide good service in the selection and use of the static hydraulic gearing.
These hydraulic piston pumps are widely used in a variety of equipment, such as agricultural machinery combine harvesters, engineering machinery mixer trucks, mining machinery LHD trucks, various aviation and transportation hydraulics engineering machinery.
Hydraulic Piston Pumps FAQ:
A: The brand name of our Hydraulic Piston Pumps is HIGHLAND, and the model number is HPV90-MA-R-23.
A: Our Hydraulic Piston Pumps are from China Shandong.
A: Our Hydraulic Piston Pumps have ISO9001 and Patent certifications.
A: The minimum order quantity of our Hydraulic Piston Pumps is 5 sets.
A: The package information is Plywood case, and the delivery time is 10 working days and according to your quantity. The payment terms is T/T, and the supply ability is 500 sets/month.
