Product Details:
|
| Product Name: | High Performance Hydraulic Piston Pumps For Industrial Applications | Material: | Cast Iron |
|---|---|---|---|
| Max Pressure: | 42Mpa | Type: | Piston Pump |
| Power Source: | Hydraulic | Pressure Range: | High Pressure |
| Warranty: | 1 Year | Application: | Agricultural Harvester Or Mixer Truck |
| Highlight: | Mixer Truck Hydraulic Piston Pumps 42Mpa,Industrial Hydraulic Axial Piston Pump,Agricultural Harvester Hydraulic Axial Piston Pump |
||

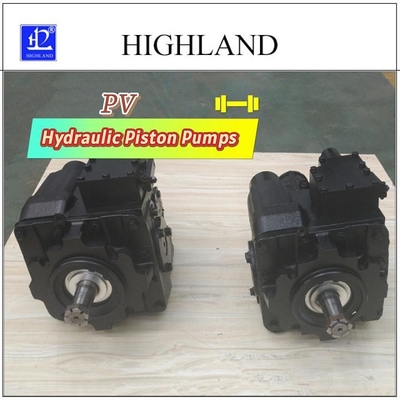

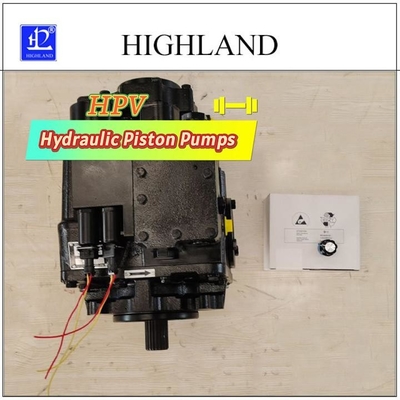

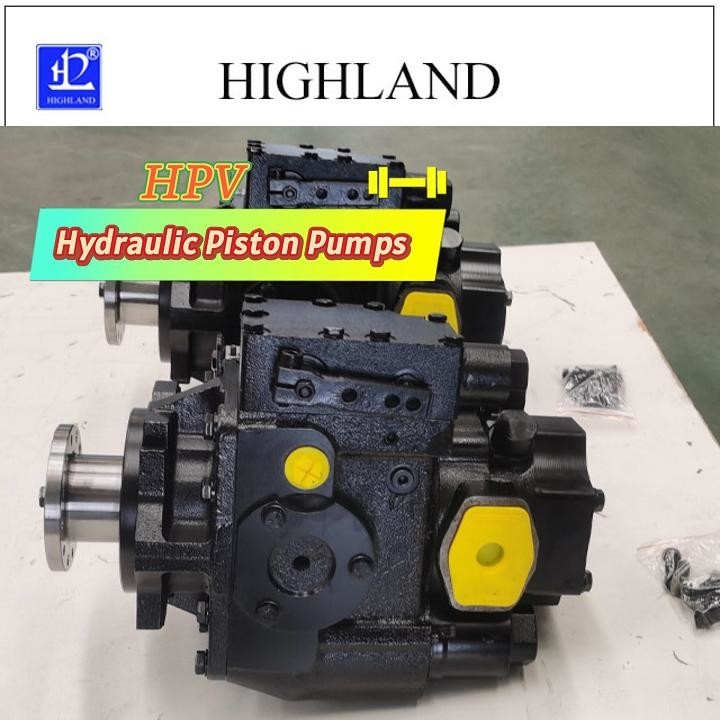

High Performance Hydraulic Piston Pumps For Industrial Applications
Product Description:
Hydraulic piston pump is an essential device in a hydraulic system. It generates pressure when the plunger within the cylinder moves back and forth, thus changing the volume of the enclosed work chamber to activate oil suction and oil pressure.
The plunger pump has the advantages of high operating pressure, compact size, high efficiency and smooth flow control. It is often seen in situations where high pressure, great flow and adjustable flow are in need.
Features:
Our hydraulic axial piston variable displacement pumps are well engineered and easy to handle. Bearings of Variable Axial Piston Pumps are all tapered roller bearing, which can load heavy external axial forces.
These hydraulic pumps can be connected with other additional pumps and when operated mechanically, the Servo displacement can control and keep the angle of swash plate and pump displacement. Upon release of the control handle, swash plate return to zero position automatically and the flow reduces to zero.
The Hydraulic pumps also have shaft oil seals performance, even at the lowest temperature and high case pressure. Servo valve of piston pump can connect function regulators and remote control systems, making the pumps easy to maintain and can be disassembled and assembled by standard tools. All components are replaceable.
Technical Parameters:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
Weight |
HPV series hydraulic pump hydraulic oil drain |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HMF series hydraulic motor hydraulic oil drain |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Applications:
Hydraulic piston pumps are extensively used for various industrial and agricultural production machinery. They are capable of
high-pressure, high-flow, and high-power systems, and are mainly adopted to adjust the circulation of the system. In
agriculture, they are applied for modern farming machines and harvesting as well as in construction machinery, including
mining and metallurgical ones. Furthermore, they are widely used in shipbuilding sector and available in petroleum exploration
and development, petrochemical, pharmaceutical, atomic energy science, environmental science, and experimental
equipment.
Hydraulic piston pumps can be used in the assembly of pumps, presses, and other hydraulic transmission systems. Therefore,
they are essential components in various manufacturing fields, such as chemical machinery, metallurgy, and on construction
sites. Therefore, it is fair to state that hydraulic piston pumps are crucial components in the modern industry and
manufacturing.
FAQ:
Q: What is the brand name of the hydraulic piston pumps?
A: The brand name of the hydraulic piston pumps is HIGHLAND.
Q: What is the model number of the hydraulic piston pumps?
A: The model number of the hydraulic piston pumps is HPV110.
Q: Where does the hydraulic piston pumps come from?
A: The hydraulic piston pumps come from DEZHOU, China.
Q: What's the minimum order quantity?
A: The minimum order quantity is 5 sets.
Q: What's the price range for the hydraulic piston pumps?
A: The price range for the hydraulic piston pumps is USD900-1400/Set.
