Product Details:
|
| Product Name: | Highland 97% High Efficiency Hydraulic Piston Pump For Heavy Duty Applications | Application: | Agricultural Harvester Or Mixer Truck |
|---|---|---|---|
| Material: | Cast Iron | Max Pressure: | 42Mpa |
| Power Source: | Hydraulic | Type: | Piston Pump |
| Warranty: | 1 Year | Standard Export Package: | Plywood Case |
| Highlight: | Agricultural Harvester Axial Piston Pump,Heavy Duty Hydraulic Piston Pump |
||

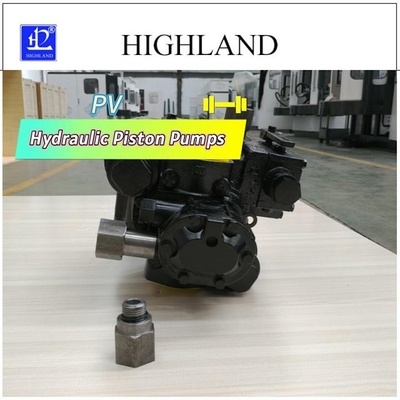

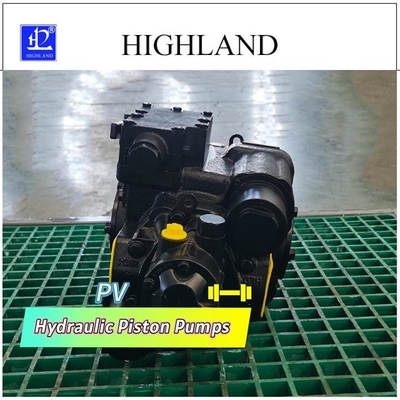

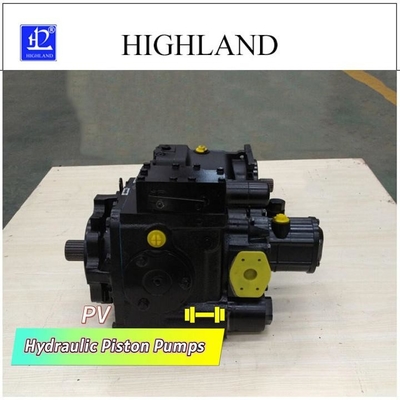

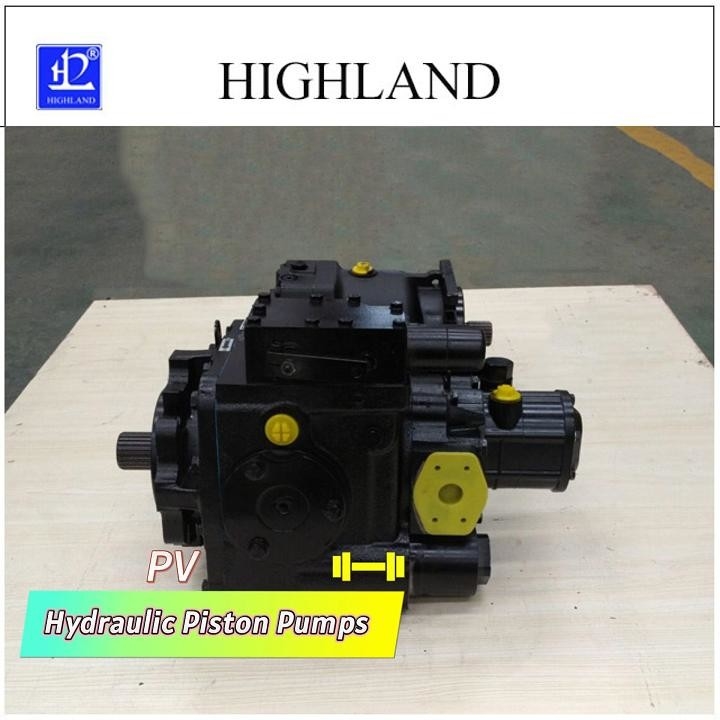

Highland 97% High Efficiency Hydraulic Piston Pump for Heavy Duty Applications
Product Description:
Hydraulic piston pumps are essential in hydraulic systems. Adapted with the reciprocating movements of the plunger in the cylinder, its purpose is to alter the amount of enclosed space of the operating chamber to transport and raise oil pressure.
Due to its high rated pressure, short stature, and efficient ability to adjust flows easily, plunger pumps have a widespread variety of applications where there is need of strong pressure, significant flow and flow control.
Hydraulic piston pumps, with all their advantageous features, have become one of the most widely-used devices in the world today.
Technical Parameters:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Applications:UsageHydraulic piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, construction machinery, mining and metallurgical machinery, and ships. It can play an important role in those industries.
Moreover, hydraulic piston pumps are utilized in many other sectors, including petroleum exploration and development, petrochemical, pharmaceutical, atomic energy science, environmental science, process equipment, experimental equipment, etc.
FAQ:
Q1. What is the brand name of the Hydraulic Piston Pumps?
A1. The brand name of the Hydraulic Piston Pumps is HIGHLAND.
Q2. What is the model number of the Hydraulic Piston Pumps?
A2. The model number of the Hydraulic Piston Pumps is HPV110.
Q3. Where is the Hydraulic Piston Pumps manufactured?
A3. The Hydraulic Piston Pumps is manufactured in Dezhou, China.
Q4. What is the minimum order quantity?
A4. The minimum order quantity is 5 sets.
Q5. How long is the delivery time?
A5. The delivery time is 10 working days or according to your quantity.
