Product Details:
|
| Package: | Plywood Case | Max Working Pressure: | 42MPa |
|---|---|---|---|
| Warranty: | 1 Year | Direction Of Rotation: | Left Or Right Rotation |
| Medium: | Hydraulic Oil | Usage: | Agricultural Machinery |
| Product Name: | Highland Hydraulic System Components Agricultural Hydraulics Pumps | Application: | Agricultural Harvester, Tractor Etc |
| Highlight: | Agricultural Harvester Hydraulics Pumps,Agricultural Hydraulics Pumps 42MPa |
||

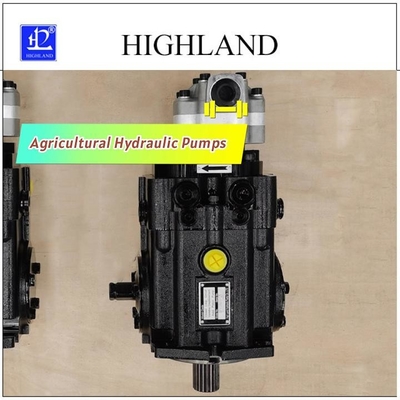

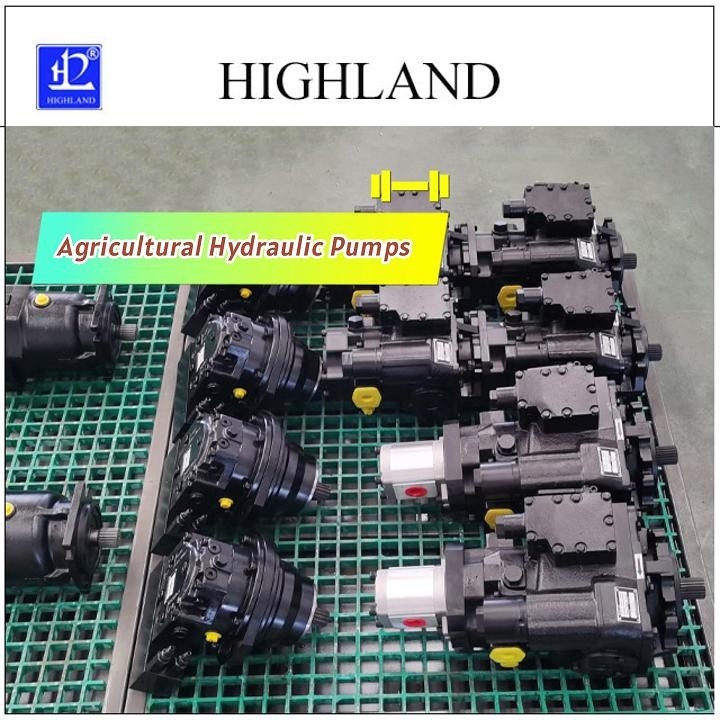

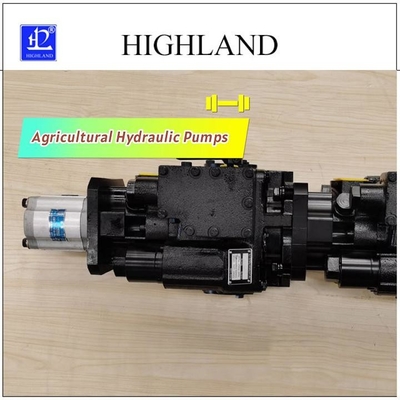

Highland Hydraulic System Components Agricultural Hydraulics Pumps
In order to meet the needs of the agricultural sector, our company has designed and developed a new generation of hydraulic products, agricultural hydraulic variable displacement piston pumps.
These hydraulic pumps have a compact size, and feature both flexibility and variable displacement, making them suitable for various types of agriculture equipment, including combine harvesters, forage harvesters, tractors, and other machinery. Furthermore, these hydraulic piston pumps provide power drives for various functions, such as harvesting, conveying, loading and unloading.
Not only do these hydraulic products offer superior performance, safety and high efficiency in the agricultural field, they also can operate under different pressure and flow conditions, allowing them to adapt to changing load requirements and reduce overall energy consumption. In addition, they are easy to install, maintain and control.
Features:
The axial variable displacement piston pump is an essential component in hydrostatic transmissions. This type of pump has a swash plate structure, making it suitable for closed-loop circuits. It also provides manual and hydraulic variable control. Depending on your need, you can opt for a variable displacement pump with a charging oil pump, or a fixed displacement motor with an integrated valve.
This type of pump is widely used for operations that require precise and efficient working. Its swash plates can easily be adjusted so that you can control the flow of liquid according to the needs. It also has the unique ability to change the overall volume and pressure.
The axial variable displacement piston pump is a reliable and cost-effective solution for your various industrial needs. Its features ensure maximum efficiency, precision, and mechanical stability while keeping operational cost low.
Technical Parameters:
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
With the rapid development of science and technology, agricultural hydraulics has become increasingly popular in our daily life. Our hydraulic pump motors are playing an important role in the agriculture industry, offering a wide range of applications in various types of agricultural machinery. From combine harvesters to tractors, sprayers, track loaders to forage harvesters, hydraulic pump motors make farming easier and more efficient.
Hydraulic pumps motors provide power for operation large and heavy-duty agricultural machines. Not only can they provide necessary energy and stability, but they also protect agricultural machines from potential damages if used properly. What's more, the pumps are relatively easy to install and operate and can reduce labor costs.
In conclusion, hydraulic pumps motors for agricultural machines provide farmers with an improved and efficient way to pursue industrial productivity. Therefore, they are becoming increasingly popular in the agricultural industry.
Support and Services:
We provide technical support and services for our Agricultural Hydraulic Pumps. Our team of experienced engineers and technicians are available to provide assistance in the selection, maintenance, and repair of our products.
We also offer a wide range of spare parts, accessories to help you get the most out of your hydraulic pump. Our knowledgeable support staff can help you find the right parts and provide troubleshooting advice.
If you have any questions or need support, please contact us. We look forward to helping you get the most out of your Agricultural Hydraulic Pump.
FAQ:
Q1: What is the brand name of the agricultural hydraulic pumps?
A1: The brand name of the agricultural hydraulic pumps is HIGHLAND.
Q2: What is the model number of the agricultural hydraulic pumps?
A2: The model number of the agricultural hydraulic pumps is HPV110.
Q3: Where is the agricultural hydraulic pumps manufactured?
A3: The agricultural hydraulic pumps are manufactured in CHINA DEZHOU.
Q4: What certifications does the agricultural hydraulic pumps have?
A4: The agricultural hydraulic pumps have PATENT and ISO CERTIFICATE.
Q5: What is the minimum order quantity for the agricultural hydraulic pumps?
A5: The minimum order quantity for the agricultural hydraulic pumps is 5 sets.
