Product Details:
|
| Features: | Reliable Quality | Model: | LMF30 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | Cast Iron LMF30 Hydraulic Motor For Overload Test Of Combine Harvester |
| Highlight: | Combine Harvester Overload Test Hydraulic Motor,Stove Car Hydraulic Motor |
||

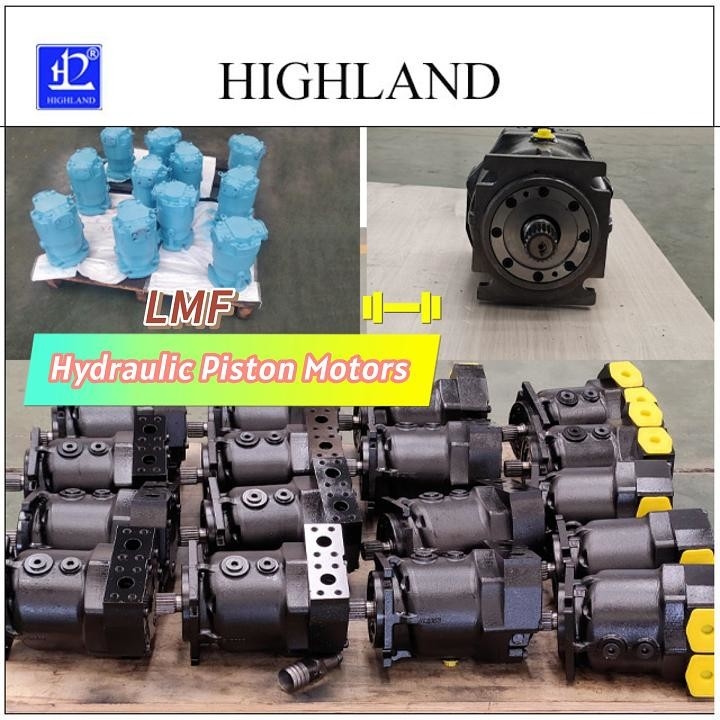

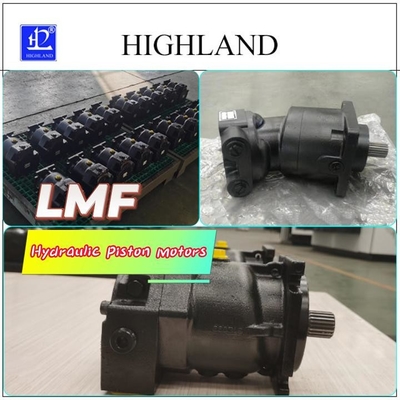

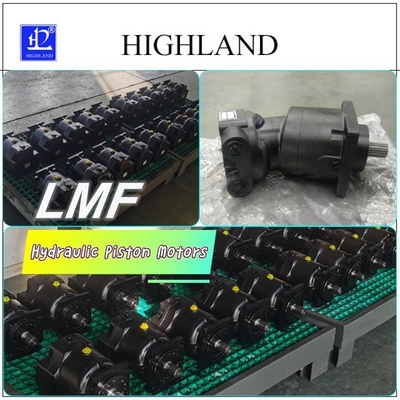

Cast Iron LMF30 Hydraulic Motor for Overload Test of Combine Harvester
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Engineered for unparalleled performance and reliability, hydraulic piston motors are the veritable workhorses of heavy industry. Harnessing the immense force of pressurized hydraulic fluid, these precision instruments drive the motion of pistons, translating hydraulic energy into formidable rotational force. With their extraordinary power output, precise control, and remarkable efficiency, hydraulic piston motors are the undisputed champions in applications demanding substantial power and impeccable precision. From colossal construction machinery to complex industrial processes, these motors empower industries to achieve feats previously thought unattainable.
The hallmark of hydraulic piston motors is their unwavering performance under the most demanding conditions. Whether it's high-speed operations or high-torque requirements, they rise to the occasion with unmatched finesse. Their intricate engineering minimizes energy wastage, ensuring that every ounce of hydraulic power is converted into productive force. This efficiency not only enhances productivity but also minimizes maintenance demands, solidifying their status as the ultimate heavy-duty workhorses.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
Regular Maintenance: Like any mechanical machinery, Hydraulic Piston Motors require a consistent maintenance schedule to maintain their high efficiency and performance. This includes regular checks for any signs of wear and tear or damage, making sure all hydraulic connections are clean and secure, and immediately replacing any components showing signs of fatigue. Neglecting a consistent maintenance routine could lead to reduced performance, and potentially, costly repair bills in the future.
In addition to these, monitoring the hydraulic fluid level is crucial. Insufficient fluid can result in inadequate pressure, reducing the motor's performance. Regular fluid checks and replacements ensure the motor's ability to operate at peak efficiency. These preventative measures are not only necessary for the longevity of the hydraulic piston motors but are also pivotal for ensuring maximum productivity and cost-effectiveness.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
