Product Details:
|
| Max.displacemen: | 110ml/r | Model: | HPV110 |
|---|---|---|---|
| Max.pressure: | 42mpa | Warranty: | 1 Year |
| Displacement: | 110ml/r Displacment | Package: | Plywood Case |
| Usage: | Road Roller Machine | Product Name: | Highland Variable Axial Piston Hydraulic Pump High Pressure High Efficiency |
| Type: | Hydraulic Power Components | Function: | Hydraulic System Components |
| Highlight: | Variable Axial Piston Hydraulic Pump,High Pressure Axial Piston Hydraulic Pump |
||

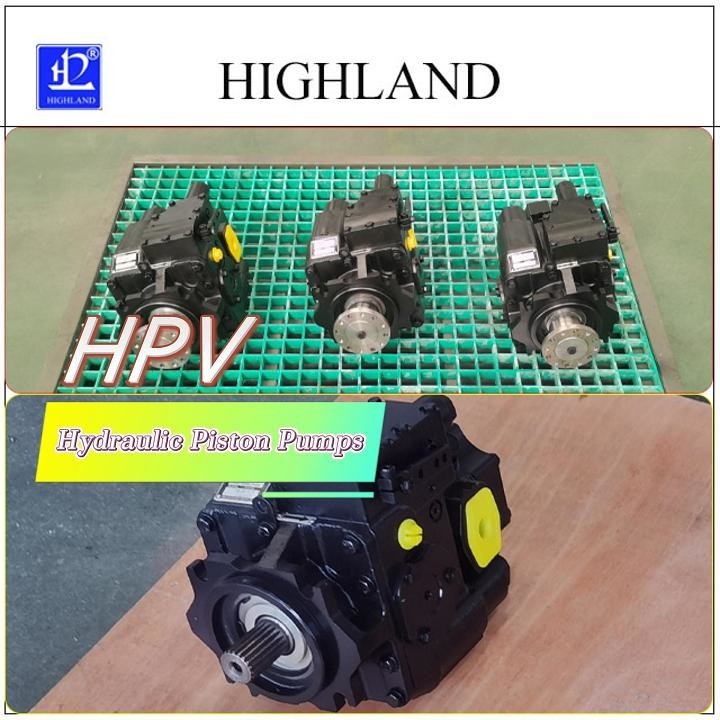

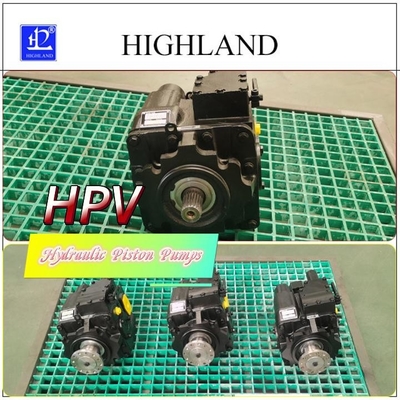

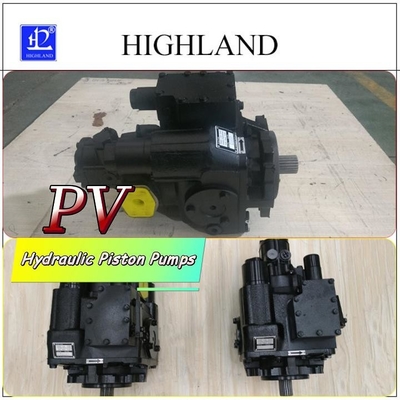

Highland Variable Axial Piston Hydraulic Pump High Pressure High Efficiency
Hydraulic piston pumps basic information:
Hydraulic piston pump is an important device in the hydraulic system. Hydraulic piston pump relies on the reciprocating motion of the plunger in the cylinder body to change the volume of the sealed working chamber to achieve oil absorption and oil pressure.
Hydraulic piston pumps features:
Hydraulic piston pumps are well engineered and easy to handle.
Bearings of piston pumps are all tapered roller bearing, which can load heavy external axial forces.
When hydraulic piston pumps operated mechanically, the servo displacement can control and keep the angle of swash plate and pump displacement.
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic piston pumps advantages:
Hydraulic piston pumps have the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment, and are used for heavy duty machiney or agricultural machinery.
Company service: lightning supply:
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand.
Commitment to warranty hydraulic pump and hydraulic motor within one year.
Provide personalized and customized services according to customer needs.
FAQ of heavy duty hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic motor pump system.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
