Product Details:
|
| Max.displacemen: | 110 Ml/r Displacement | Model: | HPV110 Model |
|---|---|---|---|
| Drive Mode: | Hydraulic Drive | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Structure: | Axial Piston |
| Warranty: | 1 Year | Material: | Cast Iron |
| Package: | Plywood Case | Product Name: | 42Mpa High Pressure Axial Piston Pump For Farm Equipment |

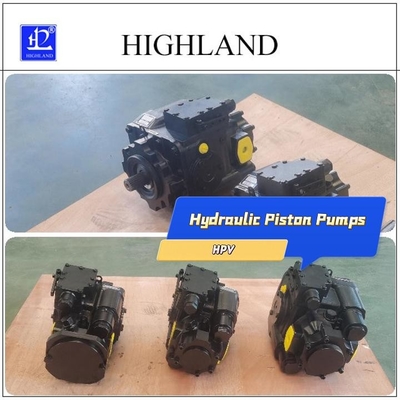

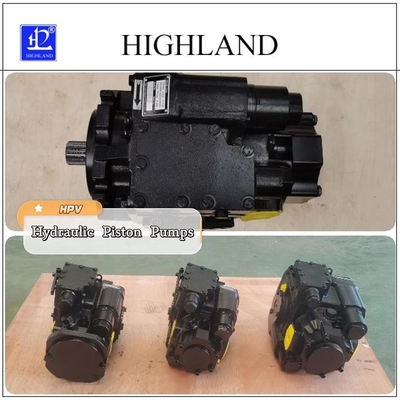

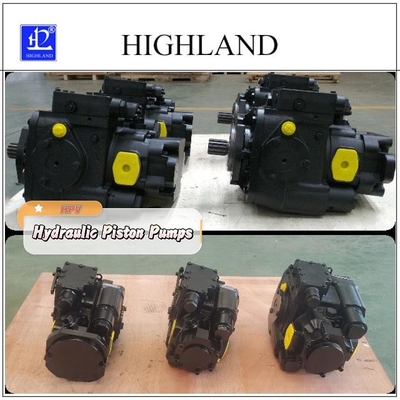

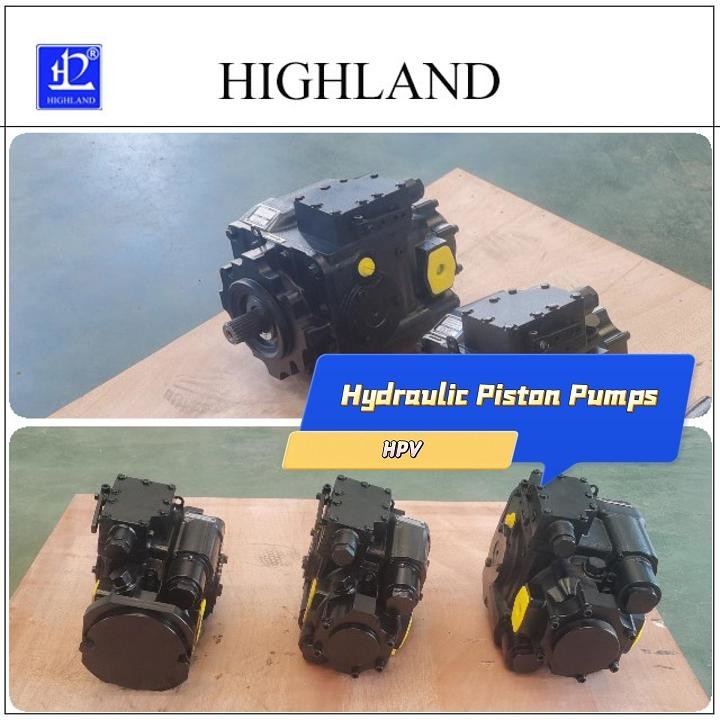

42Mpa High Pressure Axial Piston Pump for Farm Equipment
Hydraulic axial variable displacement piston pumps basic information and selection:
Innovative Hydraulic Solutions for Agriculture: The hydraulic axial variable displacement piston pump stands as a testament to innovation in agricultural machinery. This pump is critical for delivering precise oil flow at required pressures, integral to the functionality and efficiency of farm equipment. Selecting the right pump is a process rooted in understanding the unique requirements of each piece of machinery, focusing on power, performance, and operational conditions. The end result is a pump that not only fits but enhances the agricultural system's efficiency and reliability.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
weight |
HPV series hydraulic pump hydraulic oil emptying |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Hydraulic axial piston pumps usage:
Hydraulic axial piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, tractor and combine harvester, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Notices:
Preventing Cavitation in Hydraulic Pumps: Cavitation, caused by air bubbles in hydraulic fluid, can be detrimental to your piston pump. To avoid this, maintain a consistent and adequate inlet pressure and consider the use of air removal devices. Regular monitoring for signs of cavitation, such as unexplained noise or reduced efficiency, can help in taking timely corrective actions, thereby protecting your pump from internal damage.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
