Product Details:
|
| Displacment: | 90cc/r Displacement | Type: | Hydraulic System Components |
|---|---|---|---|
| Structure: | Axial Piston Pumps | Material: | Carbon Steel |
| Usage: | Mixer Truck, Combine Harvester Etc | Medium: | Hydraulic Oil |
| Warrantry: | 1 Year | Function: | Hydraulic System |
| Package: | Plywood Case | Product Name: | Axial Piston Pump LPV90 - 42Mpa, 90ml/r, 3000rpm For Closed-Loop Circuit |
| Highlight: | 3000rpm Axial Piston Hydraulic Pump,Closed Loop Circuit Axial Plunger Pump,Hydraulic Axial Displacement Pump |
||

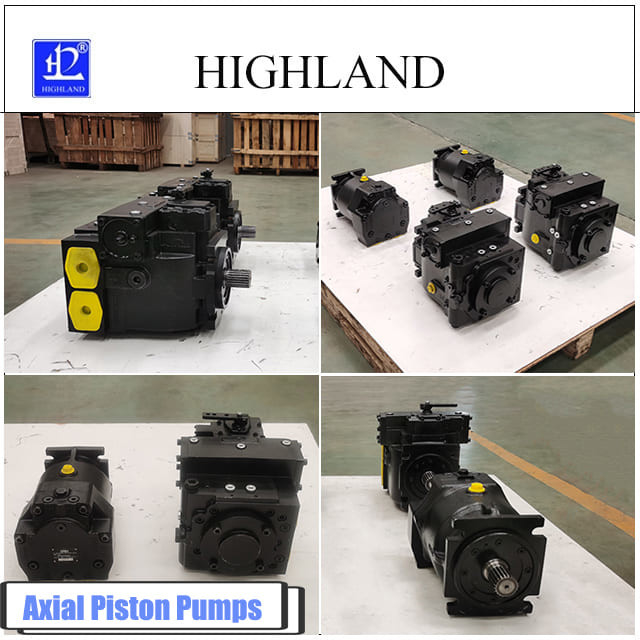

Axial Piston Pump LPV90 - 42Mpa, 90ml/r, 3000rpm for Closed-Loop Circuit
Hydraulic variable displacement axial piston pumps application range:
Variable displacement axial piston pumps introduction:
Experience unmatched reliability with our axial piston pumps, where precision engineering meets robust performance. These pumps are equipped with meticulously crafted pistons, housed in a cylinder block, all aligned around a central axis for optimal fluid dynamics. The swash plate, integral to the pump's operation, ensures precise control over the hydraulic flow, making these pumps a dependable choice for industrial and mobile applications.
Hydraulic axial piston pumps main features:
1. Variable displacement axial piston hydraulic pumps
2. Axial piston hydraulic pumps have swash plate structure
3. Be suitable for hydrostatic transmissions with closed-loop circuit
4. Manual servo and hydraulic variable control
5. Axial piston hydraulic pumps with a charging oil pump
6. LPV90 hydraulic variable displacement axial piston pump
7. Hydraulic piston pump 42Mpa high pressure
LPV90 Axial piston pumps technical specification:
|
LPV hydraulic pump and LMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
Weight |
LPV series hydraulic pump |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
LPV series hydraulic motor |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Notices:
Emphasize the importance of monitoring the quality and temperature of the hydraulic fluid. Contaminated or overheated fluid can adversely affect the performance and lifespan of axial piston pumps. Implement regular checks and maintenance schedules to ensure the fluid remains within specified quality and temperature parameters.
FAQ of variable displacement axial piston pumps:
Q1: Are you a manufacturer?
A: Yes, we are manufacturer to produce, design and test axial piston hydraulic pumps by ourselves.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Do you test all piston pumps before shipment?
A: Yes, we have 100% test before shipment, we must guarantee pumps quality.
