Product Details:
|
| Features: | Reliable Quality | Model: | LMF90 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | LMF30 Reliable Quality Motors With Fast Working And Fully Replace Imported Products |
| Highlight: | Fast Working Stove Car Piston Motors,LMF30 Hydraulic Piston Motors |
||

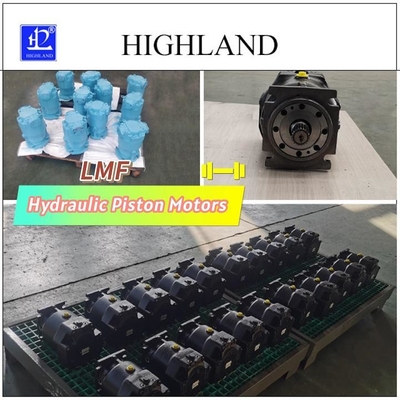

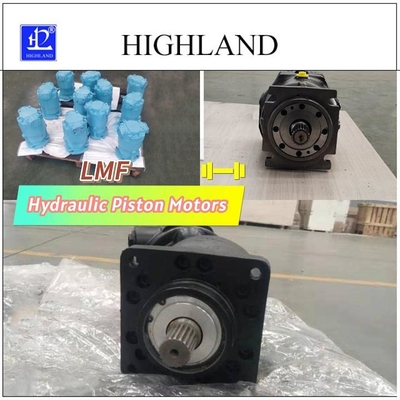

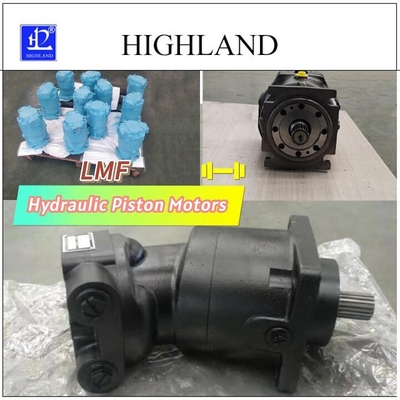

LMF30 Reliable Quality Motors with Fast Working and Fully Replace Imported Products
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Dive into the future of industrial prowess with our advanced hydraulic piston motors. Engineered with cutting-edge technology, these motors are the cornerstone of modern engineering marvels. By harnessing the robust force of pressurized hydraulic fluid, our motors drive pistons with unmatched precision, converting hydraulic energy into dynamic rotational force. This results in exceptional power output and meticulous control. Designed for resilience and efficiency, our hydraulic piston motors are pivotal in powering heavy-duty machinery and intricate industrial mechanisms. Whether it's for large-scale construction projects or detailed manufacturing processes, our motors deliver consistent, high-caliber performance, making them the go-to solution for industries seeking reliability and unparalleled precision.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
To guarantee the peak performance and longevity of your hydraulic piston motors, adherence to these maintenance practices is crucial:
a. Fluid Temperature Management: Consistently monitor and regulate the temperature of the hydraulic fluid. Overheating can lead to efficiency losses and potential motor damage.
b. Pressure Balance: Maintain a balanced pressure within the hydraulic system. Incorrect pressure levels can cause undue stress on the motor, affecting its performance and lifespan.
c. Vibration Monitoring: Regularly check for unusual vibrations, as they can indicate misalignment or other issues that may lead to premature wear.
d. Scheduled Maintenance: Adhere to a strict maintenance schedule to ensure all components are functioning optimally. This includes checking the motor's internal parts for wear and tear.
e. Environment Considerations: Operate and store the motor in suitable environments. Exposure to extreme conditions, such as excessive moisture or dust, can adversely affect motor performance.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
