Product Details:
|
| Power Source: | Hydraulic | Function: | Hydraulic System Components |
|---|---|---|---|
| Pressure Range: | High Pressure | Color: | Black |
| Principle: | Hydraulic Transmission | Rated Pressure: | 35Mpa |
| Product Name: | Hydraulic Piston Pumps | Warranty: | 1 Year |
| Highlight: | Axial Piston Hydraulic Pump High Pressure,Industrial Hydraulic Variable Displacement Piston Pump |
||

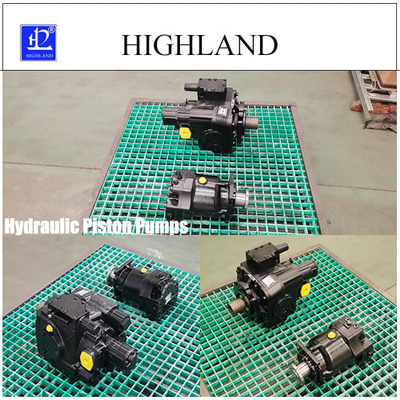

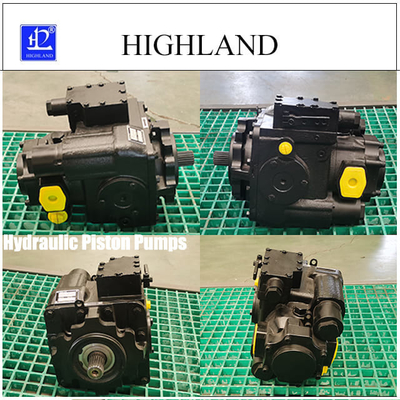

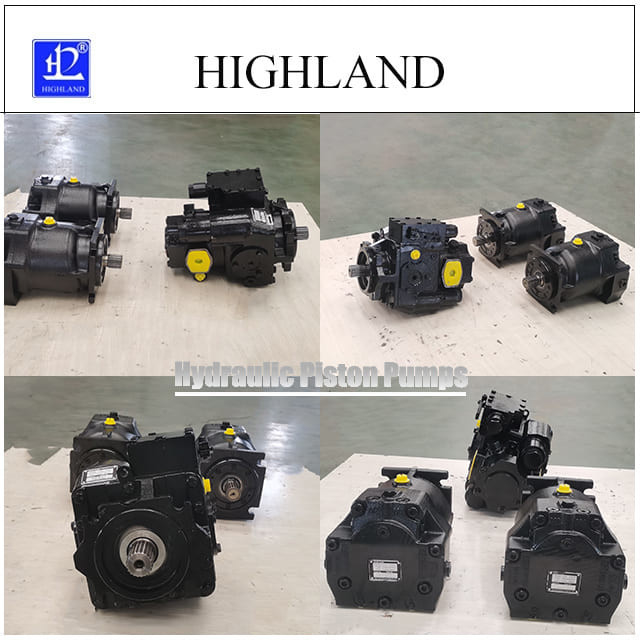

Our high quality Hydraulic Piston Pumps are designed for excellent performance and maximum efficiency. It is made from the finest quality materials and uses the latest technology for superior performance. This hydraulic pump is powered by hydraulic and has a black color. It has a rated pressure of 35Mpa and comes in a standard export package of plywood case. It is ideal for agricultural harvester or mixer truck. We guarantee the highest quality and performance of our HPV110 hydraulic pump with a 100% satisfaction guarantee. With our advanced engineering and innovative production techniques, you can be sure that your hydraulic pump will perform optimally and be reliable.
| Feature | Details |
|---|---|
| Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| Hydraulic System | Closed Loop Hydraulic Pump |
| Application | Agricultural Harvester Or Mixer Truck |
| Color | Black |
| Pressure Range | High Pressure |
| Standard Export Package | Plywood Case |
| Type | Piston Pump |
| Warranty | 1 Year |
| Product Name | Hydraulic Piston Pumps |
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 |
38 |
|
Hydraulic piston pumps from HIGHLAND are essential for both industrial and commercial applications, including heavy-duty machining, manufacturing, and construction projects. The HPV110 model is equipped with cast iron material, providing durability and strength. With a maximum pressure of 42 Mpa, this hydraulic piston pump is designed to meet your needs. It is also certified with a patent certificate and comes with a minimum order quantity of 5 sets. The HPV110 hydraulic pump is available at a competitive price of USD900-1400/Set and is delivered in a plywood case. In addition, it is offered with a fast delivery time of 10 working days and payment terms of T/T or Western Union. HIGHLAND can provide up to 400 sets/month for sale.
Whether you are looking for piston pumps for sale, HPV110 hydraulic pump, HPV110 hydraulic pump price, Highland HPV110 piston pump, Highland HPV110 hydraulic pump, Highland HPV110 hydraulic piston pump, Highland HPV110 piston pump, Highland HPV110 hydraulic pump for sale, Highland HPV110 hydraulic piston pump for sale, or Highland HPV110 piston pump for sale, HIGHLAND's HPV110 hydraulic piston pump is the perfect choice for you.
We are committed to providing our customers with the highest quality of technical support and services for our Hydraulic Piston Pumps. Our team of experienced engineers and technicians can provide onsite and remote support for installation and troubleshooting. In addition, we offer comprehensive maintenance and repair services to ensure that your Hydraulic Piston Pumps are running at their optimal performance level. If you have any questions or concerns about our Hydraulic Piston Pumps, please don't hesitate to contact us. We look forward to helping you find the perfect solution for your needs.
