Product Details:
|
| Color: | Black | Principle: | Hydraulic Transmission |
|---|---|---|---|
| Application: | Agricultural Harvester | Function: | Hydraulic System Components |
| Type: | Piston Pump | Power Source: | Hydraulic |
| Rated Pressure: | 35Mpa | Pressure Range: | High Pressure |
| Highlight: | Agricultural Hydraulic System Axis Piston Pump,42Mpa Axial Hydraulic Pump |
||

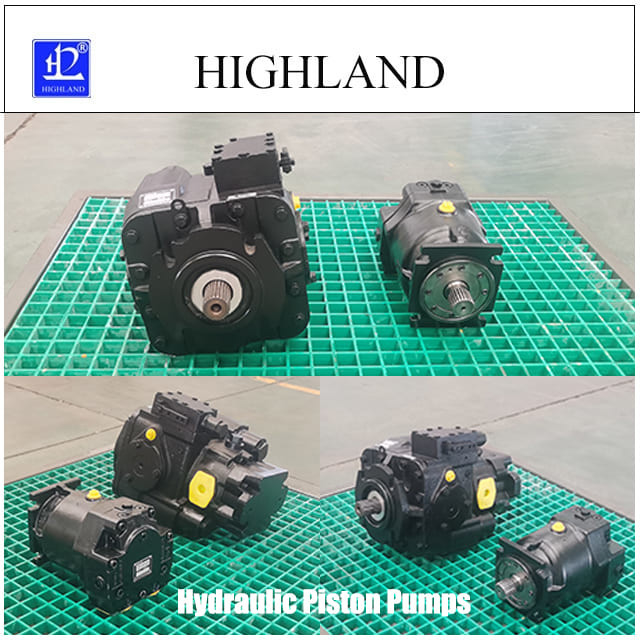

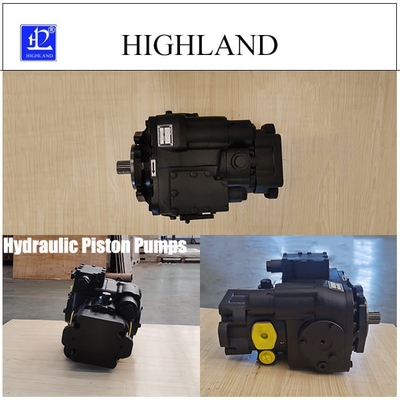

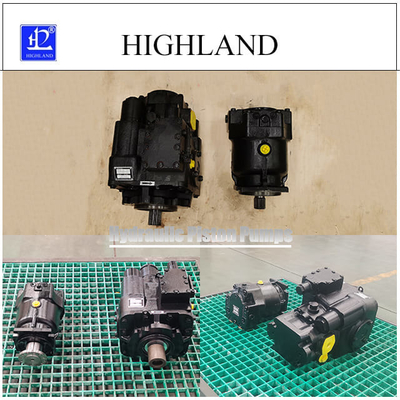

Hydraulic Piston Pumps are powerful and reliable hydraulic systems that provide long-lasting performance. The HPV110 hydraulic pump is a high-quality, closed-loop hydraulic pump that is capable of generating high pressure. It is a great choice for powering hydraulic systems such as industrial machinery, construction equipment, and agricultural vehicles. This hydraulic pump is designed for high performance and long-lasting operation. It is constructed from durable materials and has a one-year warranty. The Hydraulic Piston Pump is available in black and is powered by hydraulic energy. It is a great choice for a reliable and high-quality hydraulic pump.
| Product Name | Features |
|---|---|
| HPV110 Hydraulic Piston Pumps | Rated Pressure: 35Mpa Application: Agricultural Harvester Or Mixer Truck Color: Black Function: Hydraulic System Components Power Source: Hydraulic Warranty: 1 Year Structure: Variable Displacement Piston Pump Max Pressure: 42Mpa Package: Plywood Case |
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Applications:
Hydraulic piston pumps are high quality, high pressure pumps that are widely used in various industrial applications. HIGHLAND's HPV110 is a reliable and durable hydraulic piston pump that is designed to withstand the toughest work conditions. It has a maximum pressure of 42Mpa and a rated pressure of 35Mpa. The pump is also equipped with a patented certificate to ensure the highest quality. This pump is especially suitable for agricultural harvester or mixer truck applications.
HIGHLAND's HPV110 hydraulic piston pumps are made from high-grade materials, with excellent durability and performance. It comes with a minimum order quantity of 5 sets and is available for a price range of USD900-1400/set. It is delivered in a standard plywood case to ensure safe and secure transportation. The delivery time is 10 working days. You can make payments via T/T or Western Union. The supply ability is 400 sets/month.
HIGHLAND's HPV110 hydraulic piston pumps are ideal for applications that require high quality and reliable operating performance. It is designed for a long life of service and is capable of handling tough working conditions. With its patented certificate, you can be assured that you are always getting the best in quality and performance. So don't hesitate, and get your HIGHLAND's HPV110 hydraulic piston pump today!
We provide technical support and service for all our customers who have purchased our Hydraulic Piston Pumps. Our technical support and service includes the following:
If you have any questions or concerns about our Hydraulic Piston Pumps, please contact us and we will be happy to help.
