Product Details:
|
| Hydraulic System: | Closed Loop Hydraulic Pump | Principle: | Hydraulic Transmission |
|---|---|---|---|
| Color: | Black | Package: | Plywood Case |
| Product Name: | Hydraulic Piston Pumps | Structure: | Variable Displacement Piston Pump |
| Type: | Piston Pump | Warranty: | 1 Year |
| Highlight: | Agricultural Closed Loop Hydraulic Pump,Heavy Duty Axial Piston Hydraulic Pump |
||

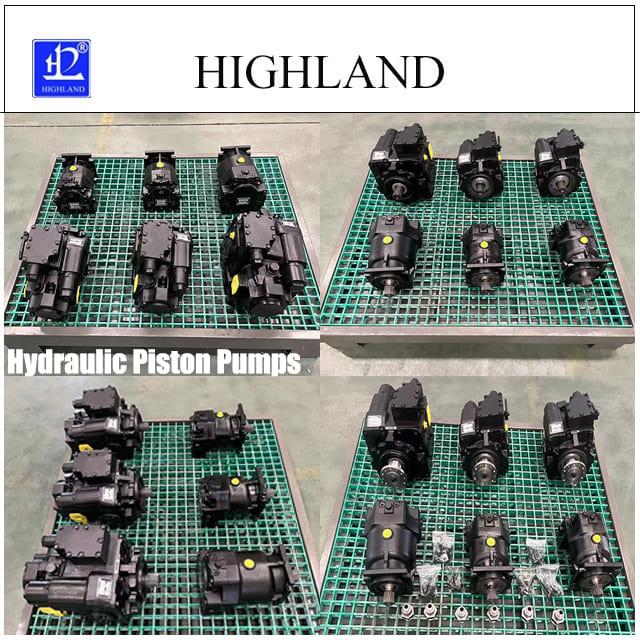

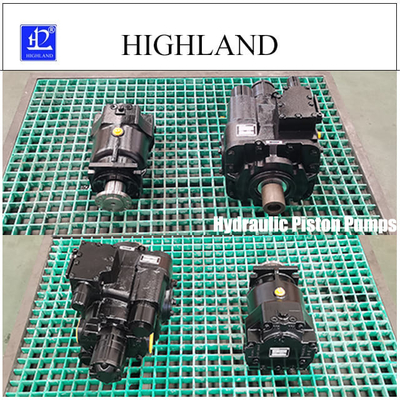

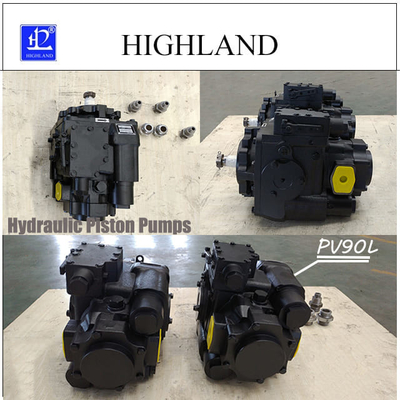

HPV110 hydraulic piston pump is a high-quality hydraulic pump powered by hydraulic. It has a rated pressure of 35Mpa and its function is as a component of hydraulic system. It is widely used in agricultural harvesters and mixer trucks, and it is packaged in a plywood case. Its superior performance makes it the best choice for hydraulic system.
HPV110 hydraulic piston pump is the ideal product for applications that require high pressure and reliable performance. Its robust construction and precise machining make it perfect for any hydraulic system. Moreover, its superior quality ensures reduced maintenance costs and improved efficiency. This makes it an ideal choice for agricultural harvesters and mixer trucks.
HPV110 hydraulic piston pump is designed for maximum performance and reliability. Its advanced design ensures efficient operation, smooth and reliable operation and extended service life. It is easy to install and maintain, making it a great choice for any application. In addition, it is packaged in a plywood case, which ensures safe storage and transportation.
HPV110 hydraulic piston pump is the best choice for any hydraulic system. It is high-quality, reliable and efficient. It is perfect for agricultural harvesters and mixer trucks, offering superior performance and reduced maintenance costs. Its advanced design and precise machining make it the perfect choice for any application.
| Parameter | Details |
|---|---|
| Product Name | Hydraulic Piston Pumps |
| Application | Agricultural Harvester Or Mixer Truck |
| Pressure Range | High Pressure |
| Color | Black |
| Warranty | 1 Year |
| Principle | Hydraulic Transmission |
| Structure | Variable Displacement Piston Pump |
| Function | Hydraulic System Components |
| Standard Export Package | Plywood Case |
Hydraulic piston pumps technical specification:
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 |
38 |
|
Applications:Highland HPV110 hydraulic piston pumps are high quality, high pressure piston pumps developed and manufactured by Dezhou, China. They feature a closed loop hydraulic system, with a maximum pressure of 42Mpa and a power source of hydraulic. These high pressure pumps can be used in a variety of applications, from industrial processes to agricultural tasks. Highland hydraulic piston pumps have a wide range of pressure ranges, from low to high, and are reliable and durable. The hydraulic piston pumps are certified for safety and quality, with a patent certificate. With a minimum order quantity of 5 sets and a price of USD900-1400/Set, these pumps offer excellent value for money. The pumps come in a durable plywood case, and delivery is within 10 working days. Payment methods include T/T and Western Union, and 400 sets/month can be supplied. Highland hydraulic piston pumps are the perfect choice for any high pressure pumping needs.
We provide technical support and service for our Hydraulic Piston Pumps to ensure that our customers get the maximum benefit from their purchase. Our professional technicians can assist with any technical questions related to installation, operation, and maintenance of our products.
Our technical support and service include:
We are committed to providing the best customer service possible. If you have any questions or concerns about the Hydraulic Piston Pumps, please don't hesitate to contact us.
