Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque

I'm Online Chat Now

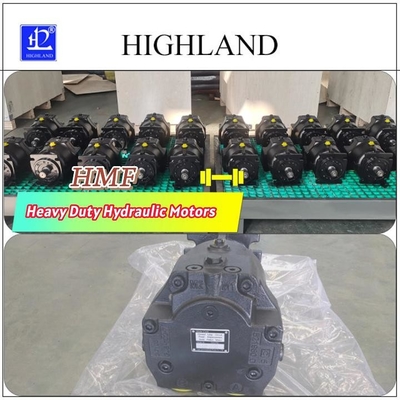

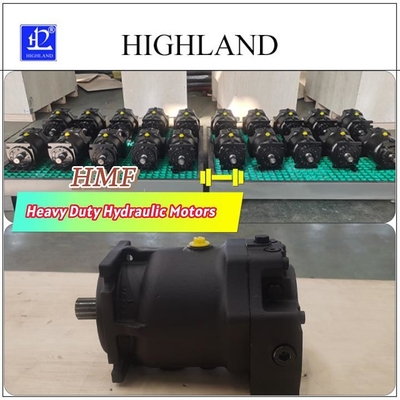

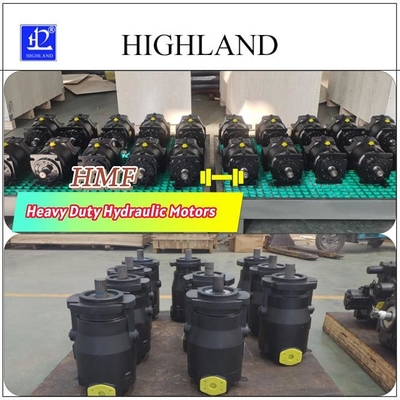

Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque

Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque
Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque

Large Image :  Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque

Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT CERTIFICATE
Model Number: HMF90
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union
Supply Ability: 140 sets per month

Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque

Description
Features: Easy Maintenance Max.pressure: 42mpa
Model: HMF90 Type: Hydraulic Components
Application: Mobile Crusher Heavy Duty Hydraulic Motors Medium: Hydraulic Oil
Warranty: 1 Year Function: Hydraulic System Components
Package: Plywood Case Product Name: Heavy Duty HMF90 Hydraulic Motors: Cast Iron Housing, Easy Maintenance, High Torque
Highlight:

High Torque Hydraulic Motor HMF90

,

Heavy Duty Hydraulic Motors 42mpa

Heavy Duty HMF90 Hydraulic Motors: Cast Iron Housing, Easy Maintenance, High Torque



Quick Detail:



·Cast iron housing

·Hydraulic components

·Model HMF90

·Hydraulic system power components

·Principle hydraulic transmission

·Features easy maintenance

·Simple layout

·System Solutions

·Work fast

·Fully replace imported products

·Patent certificate certification

·Application mobile crusher heavy duty hydraulic motors

·1 year warranty





Description:



Heavy duty hydraulic motors features:



When it comes to the challenging conditions of marine and offshore drilling, our Heavy Duty Hydraulic Motors offer unparalleled strength and durability. Engineered to withstand the rigors of oceanic environments, these motors provide the high torque and sustained power necessary for drilling operations, ensuring reliability and efficiency in even the most demanding maritime conditions.



HMF Series Technical parameter:



HMF hydraulic pump and HMF hydraulic motor series 30 50 70 90 110 130
Displacement Max displacement ml/r 30 50 70 90 110 130
Speed Max continuous working speed
(Full load condition)
r/min 3500 3500 3200 3200 2900 2900
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 162.3 252.3 342.6 432.9 535.3 632.4
Max output torque Nm 227 353 480 606 749 885
Power Continuous output power KW 45 79 107 139 149 176
Max power KW 62 95 114 150 173 205
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
weight HPV series hydraulic pump hydraulic oil drain kg 45 46 63 64 82 88
HPV series hydraulic motor hydraulic oil drain kg 30 30 36 36 36 38





Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque 0





Notices:



Maintaining proper lubrication of the Heavy-Duty Hydraulic Motors is essential. Regularly check and replenish lubricating oils or greases as required. Proper lubrication reduces friction and wear, enhances efficiency, and prolongs the life of the motor. This is especially important in environments with high loads and continuous operations, such as in construction or mining machinery.



Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque 1





Application:



Mixer truck: concrete mixer truck, cement mixer truck;

Coal mining machinery: scraper;

Industry: pharmaceutical machinery;

Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers



Heavy Duty HMF90 Hydraulic Motors Cast Iron Housing Easy Maintenance High Torque 2



FAQ



Q1. Can I have a sample order for mobile crusher heavy duty hydraulic motors ?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

10 to 15 days for samples, mass production according to MOQ



Q3. Do you have any MOQ limit for mobile crusher heavy duty hydraulic motors ?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.



Q5. How to proceed an order for mobile crusher heavy duty hydraulic motors ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation
