Product Details:
|
| Features: | Lifetime Technical Support | Model: | PV22+MV23 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Pharmaceutical Machinery Underground Truck Hydraulic Pumps | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Underground Truck Hydraulic Pumps Fully Replace Imported Products |
| Highlight: | Work Fast Underground Truck Hydraulic Pumps,Pharmaceutical Machinery Hydraulic Piston Pumps |
||

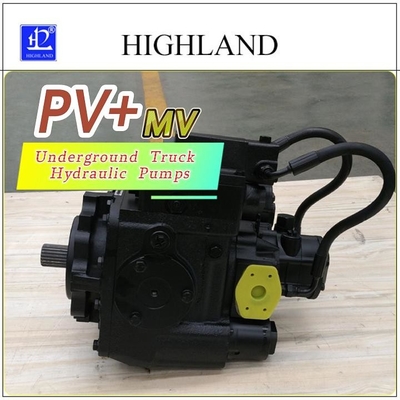

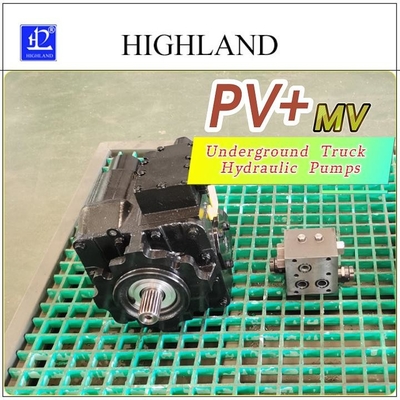

Underground Truck Hydraulic Pumps Fully Replace Imported Products
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features lifetime technical support
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic pumps
· 1 year warranty
Description:
Experience the next level of mining efficiency with our cutting-edge Hydraulic Pumps, specifically designed for underground trucks. These pumps feature the latest in hydraulic technology, offering unparalleled efficiency and performance. The innovative design improves flow dynamics, reduces energy consumption, and enhances overall system responsiveness, making it an ideal choice for mining operations seeking to boost productivity and reduce operational costs.
PV22+MV23 Technical parameter:
| PV22 hydraulic pump and MV23 hydraulic motor series | PV22 | MV23 | ||
| Displacement | Max displacement | ml/r | 69.8 | 89 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||
| Min continuous working speed | r/min | 500 | ||
| Pressure | Rated working pressure | Mpa | 35 | |
| Max working pressure (transient) | Mpa | 42 | ||
| Continuous working pressure | Mpa | 30 | ||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 342.6 | 432.9 |
| Max output torque | Nm | 480 | 606 | |
| Power | Continuous output power | KW | 107 | 139 |
| Max power | KW | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |
| Max working temperature of oil tank | ℃ | 70 | ||
| weight | PV series hydraulic pump hydraulic oil drain | kg | 62 | |
| PV series hydraulic motor hydraulic oil drain | kg | 66 | ||
Notices:
Consistently monitor the pressure and flow rate of the hydraulic pumps in underground trucks. Fluctuations in these parameters can indicate underlying issues within the hydraulic system. Regular monitoring helps in early detection of problems such as leaks, blockages, or pump wear, enabling timely interventions to maintain optimal performance and prevent extensive damage.
FAQ
Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
