Product Details:
|
| Features: | Reliable Quality | Model: | LMF90 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | LMF30 Advanced Hydraulic Piston Motors With Enhanced Efficiency Design |
| Highlight: | High Precision Heavy Duty Hydraulic Motors,Industrial Hydraulic Piston Motors |
||

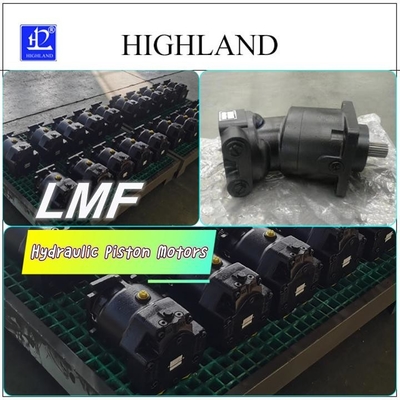

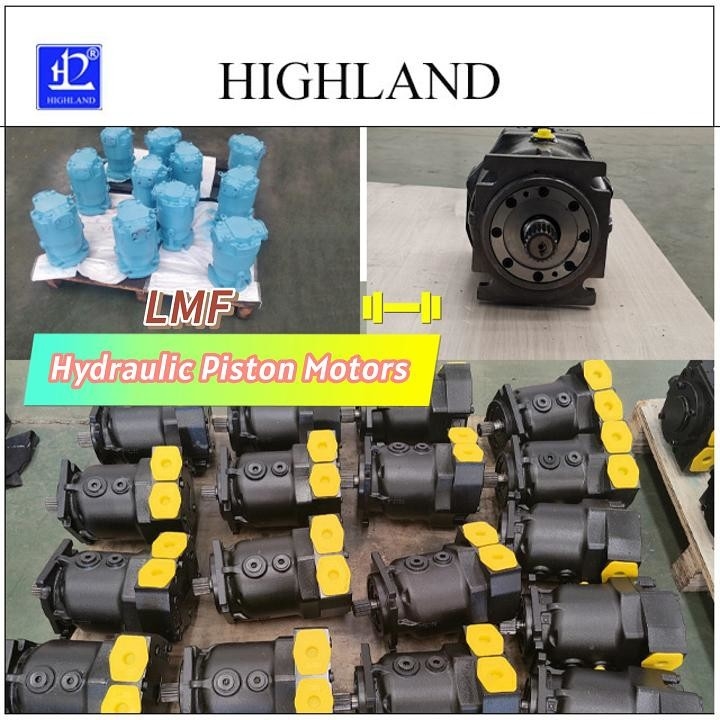

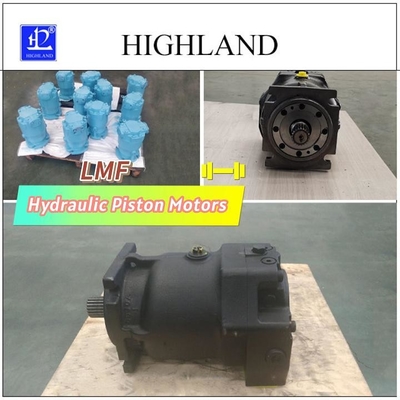

LMF30 Advanced Hydraulic Piston Motors with Enhanced Efficiency Design
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Discover the new era of industrial efficiency with our superior hydraulic piston motors. Engineered to perfection, these motors utilize cutting-edge hydraulic technology, channeling high-pressure fluid to drive pistons with extraordinary precision and power. This innovative approach enables the seamless conversion of hydraulic energy into a dynamic rotational force, delivering both high power output and meticulous accuracy. Our hydraulic piston motors stand out in their ability to sustain rigorous industrial tasks, making them a cornerstone in sectors requiring unwavering reliability and precision, such as advanced manufacturing and large-scale infrastructure projects. They epitomize the fusion of raw power and refined control, serving as a critical asset for industries seeking to elevate their operational capabilities to new heights.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
a. Leak Detection and Management: Vigilantly monitor for any leaks in the hydraulic system. Leaks not only lead to operational inefficiency but also pose environmental and safety risks.
b. Temperature Regulation: Keep a close check on the operating temperature of the hydraulic fluid. Overheating can degrade the fluid’s quality and negatively impact motor performance.
c. Adequate Training for Operators: Provide comprehensive training for all personnel operating or maintaining the hydraulic piston motors. Well-informed operators are key to safe and efficient motor operation.
d. Use of Protective Gear: Ensure that operators and maintenance personnel always use appropriate protective gear, including gloves and eye protection, when working with hydraulic systems.
e. System Upgrades and Modernization: Stay updated with the latest advancements in hydraulic technology and consider system upgrades where beneficial. Modern systems often offer enhanced performance, efficiency, and safety features.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
