Product Details:
|
| Max.displacemen: | 90ml/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV90+LMF90 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Robust Hydraulic Motor Pump System For Long-Lasting Agricultural Solutions |
| Highlight: | Agricultural Hydraulic Motor And Pump System,LMF Variable Displacement Axial Piston Pump |
||

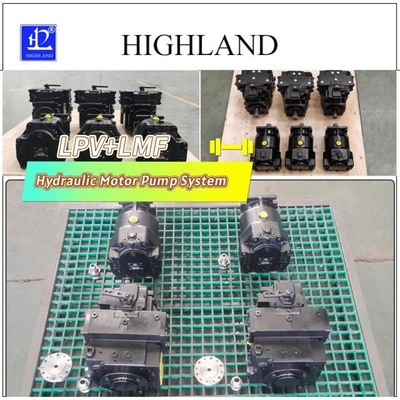

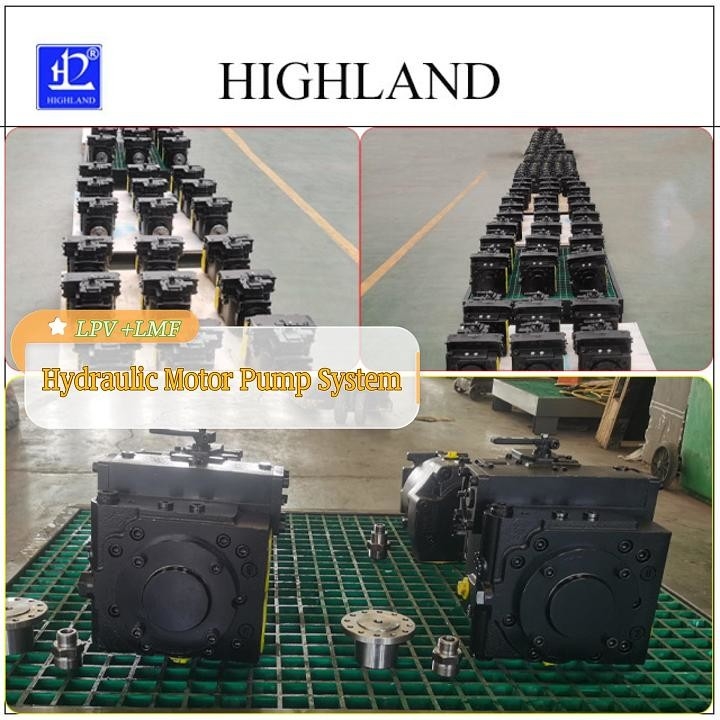

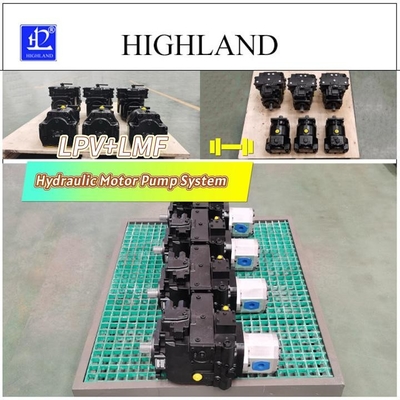

Robust Hydraulic Motor Pump System for Long-Lasting Agricultural Solutions
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Discover the ultimate efficiency with our advanced hydraulic pump motor system. Tailored for modern agriculture, this system offers unparalleled hydraulic power and precision. Ideal for a range of farm activities from planting to harvesting, its high-quality pump, robust motor, and superior valves and hoses ensure consistent, top-tier performance. Experience the blend of technology and durability that transforms your farming efficiency, reducing time and costs while maximizing output.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Always ensure that the hydraulic fluid levels are within the recommended range. Low fluid levels can lead to inadequate lubrication and cooling, while overfilling may cause excessive pressure and leakage. Regularly checking and maintaining the correct fluid level is essential for the smooth operation and longevity of your hydraulic system.
Hydraulic Motor Pump System use:
The hydraulic pump motor system for agricultural machinery is widely used in various types of agricultural machines, such as self-propelled harvesters1, tillage machines2, irrigation machines3, etc. The system can also be integrated with other technologies, such as electro-hydraulic control2, hydraulic suspension2, HST (Hydro Static Transmission)3, HMT (Hydro Mechanical Transmission)2, etc., to achieve higher automation and intelligence levels.
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
