Product Details:
|
| Features: | Lifetime Technical Support | Model: | PV22+MV23 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Pharmaceutical Machinery Underground Truck Hydraulic Pumps | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | PV22 MV23 Your Solution For High-Performance Hydraulic Power In Mining Operations |
| Highlight: | PV22 Mining Hydraulic Power,Work Fast Mining Hydraulic Pumps |
||

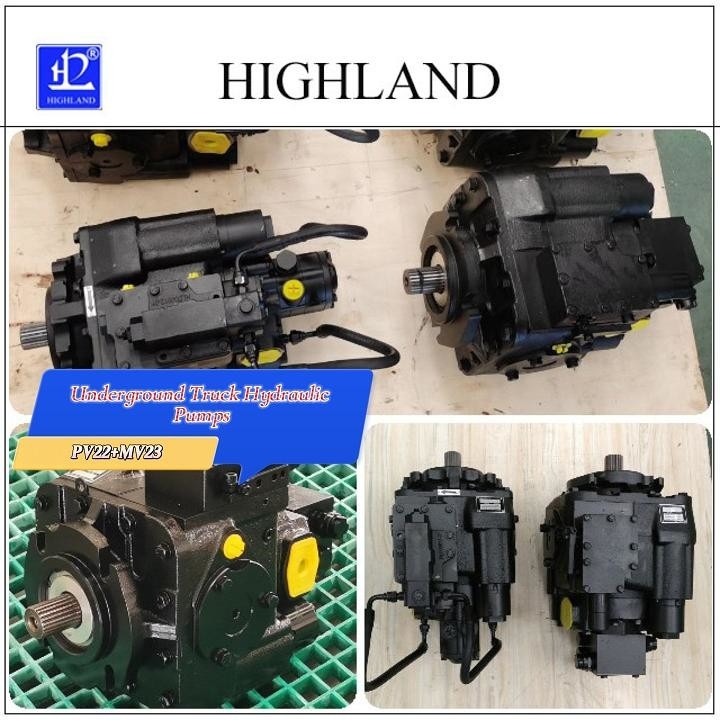

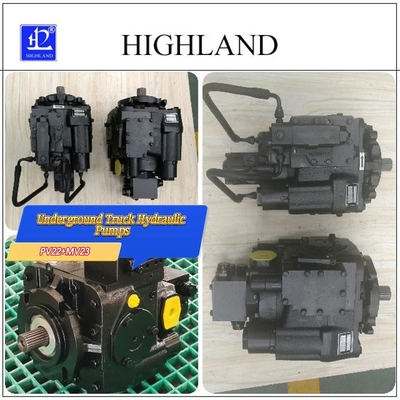

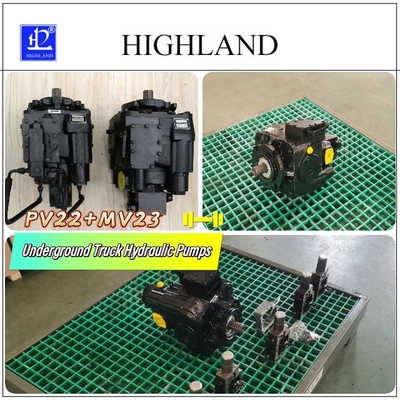

PV22 MV23 Your Solution for High-Performance Hydraulic Power in Mining Operations
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features lifetime technical support
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic pumps
· 1 year warranty
Description:
Our Hydraulic Pumps are specifically tailored for the harsh conditions of underground mining. They provide robust and consistent hydraulic power to ensure your trucks operate at peak efficiency, even in the most challenging environments. These pumps are a crucial investment for any mining operation looking to improve reliability and performance under the earth's surface.
PV22+MV23 Technical parameter:
| PV22 hydraulic pump and MV23 hydraulic motor series | PV22 | MV23 | ||
| Displacement | Max displacement | ml/r | 69.8 | 89 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||
| Min continuous working speed | r/min | 500 | ||
| Pressure | Rated working pressure | Mpa | 35 | |
| Max working pressure (transient) | Mpa | 42 | ||
| Continuous working pressure | Mpa | 30 | ||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 342.6 | 432.9 |
| Max output torque | Nm | 480 | 606 | |
| Power | Continuous output power | KW | 107 | 139 |
| Max power | KW | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |
| Max working temperature of oil tank | ℃ | 70 | ||
| weight | PV series hydraulic pump hydraulic oil drain | kg | 62 | |
| PV series hydraulic motor hydraulic oil drain | kg | 66 | ||
Notices:
Keep contamination out of your hydraulic pump system. Dirt, debris, and other contaminants can severely impact the efficiency and longevity of your pump. Implement a robust filtration system and conduct frequent fluid analyses to detect and address contamination early. Maintaining a clean hydraulic system is essential for smooth operation and prolonged pump life.
FAQ
Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
