Product Details:
|
Max.displacemen: | 110cc/r+110cc/r | Rated Pressure: | 350Bar Tandem Hydraulic Pump |
---|---|---|---|
Max Pressure: | 420Bar Tandem Hydraulic Pump | Material: | Cast Iron |
Medium: | Hydraulic Oil | Warranty: | 1 Year |
Function: | Hydraulic System Components | Package: | Plywood Case |
Product Nam: | Versatile And Reliable Tandem Hydraulic Pumps For Heavy-Duty Machinery | Rotation Direction: | Left Or Right |
Highlight: | Heavy Duty Machinery Tandem Hydraulic Pumps,Versatile Tandem Hydraulic Pumps |

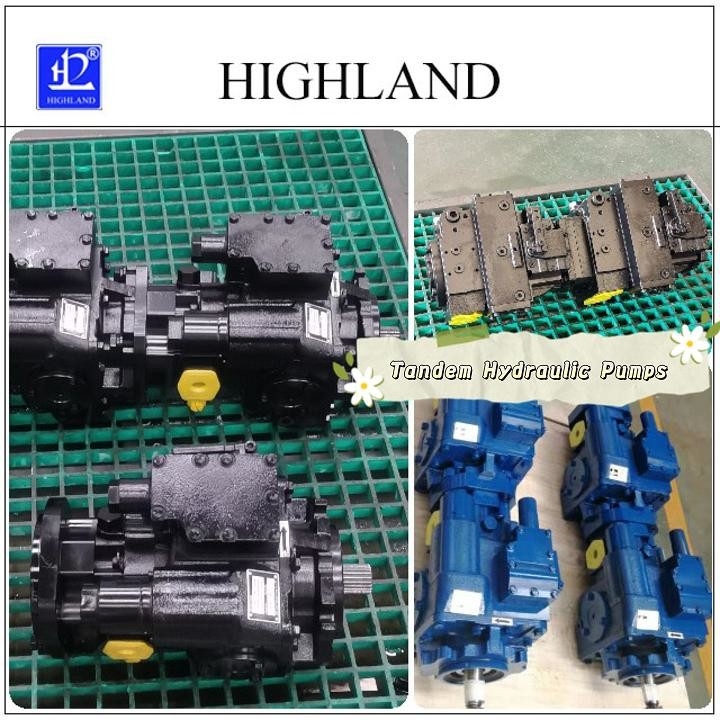

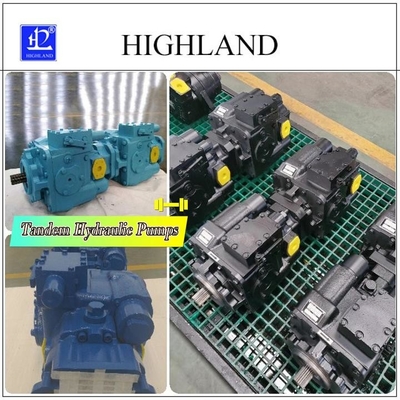

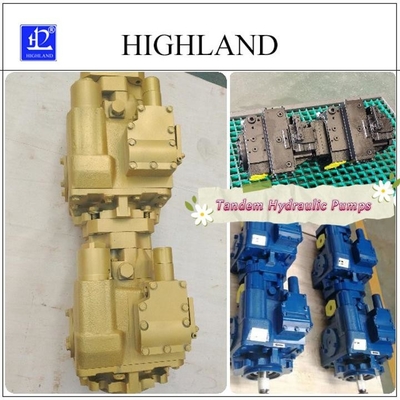

Versatile and Reliable Tandem Hydraulic Pumps for Heavy-Duty Machinery
Tandem hydraulic pumps basic information:
Our Tandem Hydraulic Pumps are engineered to deliver dual power and enhanced efficiency. This tandem setup allows for simultaneous operations, distributing workload evenly and reducing wear. Suitable for a variety of industrial applications, these pumps are a game-changer, offering a more efficient, reliable, and cost-effective hydraulic solution.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
HPV hydraulic pump and HMF hydraulic motor series | ||||||||
Displacement | Max displacement | ml/r | 110+110 | |||||
Speed | Max continuous working speed (Full load condition) |
r/min | 2900 | |||||
Rated speed | r/min | 2500 | ||||||
Min continuous working speed | r/min | 500 | ||||||
Pressure | Rated working pressure | Mpa | 35 | |||||
Max working pressure (transient) | Mpa | 42 | ||||||
Continuous working pressure | Mpa | 30 | ||||||
Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
Torque | Continuous output torque (Under continuous working pressure) |
Nm | 535.3 | |||||
Max output torque | Nm | 749 | ||||||
Power | Continuous output power | KW | 149 | |||||
Max power | KW | 173 | ||||||
Temperature | Allowable shell temperature | ℃ | 80 | |||||
Max working temperature of oil tank | ℃ | 70 | ||||||
weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 |
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer needs;
Notices:
Keep a vigilant eye on the operating temperature of your tandem hydraulic pumps. Excessive heat can degrade hydraulic fluid, reduce efficiency, and increase the risk of pump damage. Implement cooling measures and ensure your system operates within the recommended temperature range to maintain efficient and safe pump operation.
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.
