Product Details:
|
| Max Pressure: | 42Mpa | Color: | Black |
|---|---|---|---|
| Rated Pressure: | 35Mpa | Type: | Piston Pump |
| Hydraulic System: | Closed Loop Axial Hydraulic Pump | Application: | Agricultural Harvester And Tractor |
| Product Name: | Hydraulic Piston Pumps | Warranty: | 1 Year |
Hydraulic Piston Pumps are high quality variable displacement pumps that are widely used in various industrial and commercial applications. These pumps are designed to provide efficient and reliable performance, making them an essential component in many hydraulic systems.
The Hydraulic Piston Pump features a variable displacement design, which allows for adjustments in flow rate and pressure to meet the specific needs of each application. This structure also ensures smooth and precise operation, resulting in a more efficient and effective hydraulic system.
With a commitment to quality, our Hydraulic Piston Pumps come with a 1-year warranty. This warranty guarantees that our products are free from defects in material and workmanship, providing our customers with peace of mind and confidence in their purchase.
Our product is aptly named Hydraulic Piston Pumps, as it accurately reflects its function and purpose. This name also emphasizes the importance of the piston in the pump, as it is the key component responsible for generating the hydraulic pressure.
As the name suggests, our Hydraulic Piston Pumps are powered by a hydraulic system. This power source allows for a more compact and energy-efficient design, making it a popular choice for various applications.
For convenient and safe transportation, our Hydraulic Piston Pumps come in a standard export package, specifically a plywood case. This packaging ensures that the pumps are well-protected during shipping, preventing any damage that may occur.
Choose Hydraulic Piston Pumps for your hydraulic system needs and experience the reliability, efficiency, and performance that our high-quality pumps offer. Contact us now for more information and to place your order.
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
| Product Name | Hydraulic Piston Pumps |
|---|---|
| Power Source | Hydraulic |
| Standard Export Package | Plywood Case |
| Rated Pressure | 35Mpa |
| Material | Cast Iron |
| Package | Plywood Case |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Structure | Variable Displacement Piston Pump |
| Warranty | 1 Year |
| Max Pressure | 42Mpa |

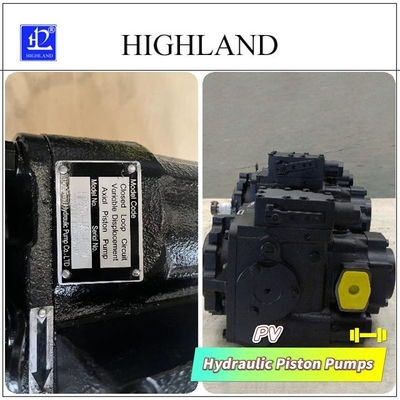

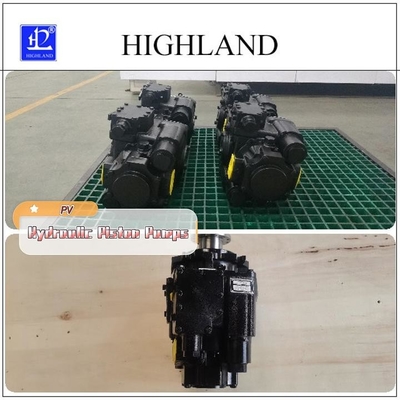

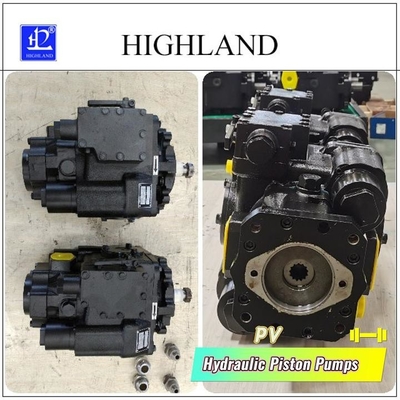

Are you looking for a reliable and efficient hydraulic piston pump for your industrial or mobile hydraulic system? Look no further than the HIGHLAND HPV110.
The HIGHLAND HPV110 is a variable displacement piston pump that is designed to provide efficient and reliable hydraulic power for a wide range of applications. With its high quality materials and patented design, this pump is guaranteed to deliver superior performance and durability.
The HPV110 hydraulic pump operates on the principle of hydraulic transmission, which uses pressurized fluid to transfer power from one component to another. This allows for smooth and precise movement, making it ideal for applications that require precision and control.
Each HIGHLAND HPV110 pump is carefully packaged in a sturdy plywood case to ensure safe transportation and delivery. This standard export package also protects the pump from any potential damage during shipping.
The HPV110 pump is a crucial component in hydraulic systems, providing the necessary power to operate various machinery and equipment. It is commonly used in industrial machinery, agricultural equipment, construction vehicles, and more.
The HIGHLAND HPV110 features a variable displacement design, allowing it to adjust the flow rate according to the demand of the system. This makes it versatile and suitable for a wide range of applications, providing the right amount of power when needed.
We stand behind the quality and performance of our products, which is why the HIGHLAND HPV110 comes with a 1-year warranty. This gives you peace of mind knowing that your investment is protected and any potential issues will be taken care of.
With its superior design, high quality materials, and reliable performance, the HIGHLAND HPV110 hydraulic piston pump is the perfect choice for your hydraulic system needs. Contact us today to learn more or to place an order!
Tags: hydraulic piston pump, hydraulic system components, high pressure hydraulic piston pump
