Product Details:
|
| Max.displacemen: | 110 Ml/r Displacement | Model: | HPV110 Model |
|---|---|---|---|
| Drive Mode: | Hydraulic Drive | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Structure: | Axial Piston |
| Warranty: | 1 Year | Material: | Cast Iron |
| Package: | Plywood Case | Product Name: | Adaptable Oil Flow And Pressure Hydraulic Piston Pumps For Farms |

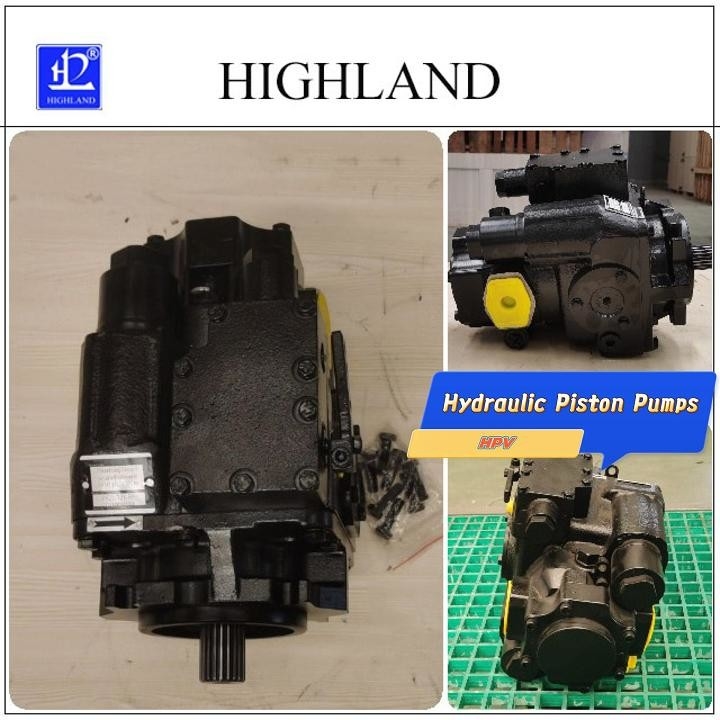

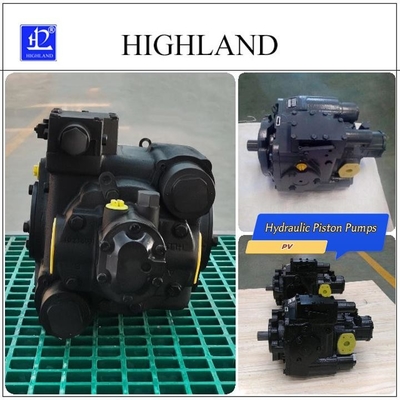

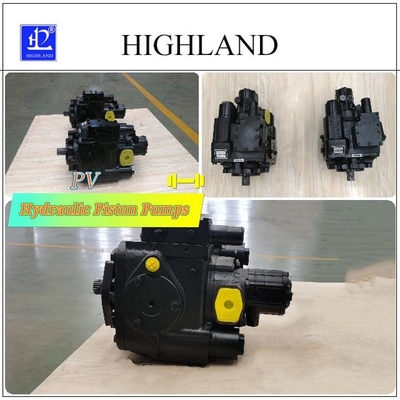

Adaptable Oil Flow and Pressure Hydraulic Piston Pumps for Farms
Hydraulic axial variable displacement piston pumps basic information and selection:
Propel your agricultural operations into the future with our smart Hydraulic Axial Variable Displacement Piston Pumps. Designed for the modern farm, these pumps offer intelligent control over oil flow and pressure, optimizing the efficiency of your machinery. Their variable displacement feature allows for precise adjustments, ensuring that your equipment operates at peak performance with minimal energy waste. Embrace the smart solution for your farming needs and enjoy reduced operational costs and enhanced equipment longevity.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
weight |
HPV series hydraulic pump hydraulic oil emptying |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Hydraulic axial piston pumps usage:
Hydraulic axial piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, tractor and combine harvester, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Notices:
Systematic pressure regulation is vital for the longevity and proper functioning of hydraulic piston pumps. Excessive pressure can strain the pump and hydraulic system, leading to premature wear or failure. Utilize pressure relief valves and regularly check system pressure against operational specifications. This is particularly crucial in heavy-duty applications such as mining excavators, industrial presses, or any machinery where hydraulic pumps are subjected to intense working conditions.
