Product Details:
|
| Displacment: | 90cc/r Displacement | Type: | Hydraulic System Components |
|---|---|---|---|
| Structure: | Axial Piston Pumps | Material: | Carbon Steel |
| Usage: | Mixer Truck, Combine Harvester Etc | Medium: | Hydraulic Oil |
| Warrantry: | 1 Year | Function: | Hydraulic System |
| Package: | Plywood Case | Product Name: | High Pressure LPV90 Axial Piston Pump With Charging Oil Pump For Optimal Operation |

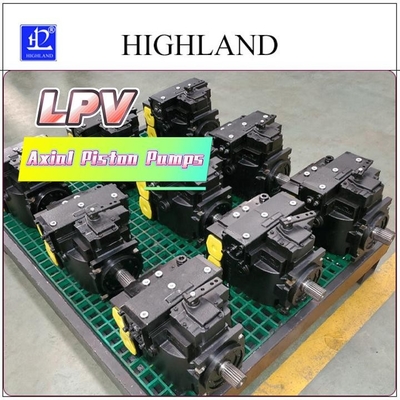

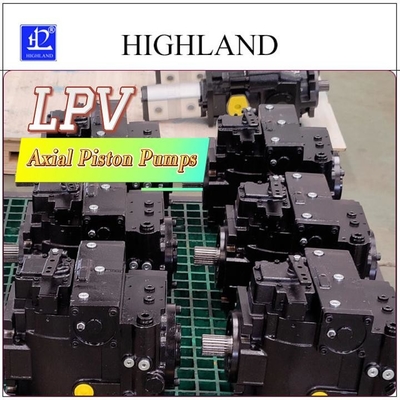

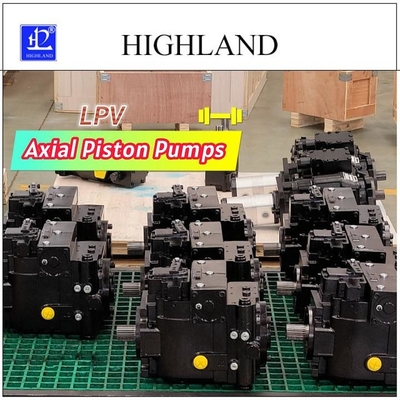

High Pressure LPV90 Axial Piston Pump with Charging Oil Pump for Optimal Operation
Variable displacement axial piston pumps introduction:
Maximize the potential of your hydraulic systems with our axial piston pump technology. Our pumps are designed for those who demand the best in hydraulic power and efficiency. With a focus on advanced fluid dynamics, our pumps provide smooth, consistent power output, ensuring your machinery operates at its best. Whether for industrial or mobile applications, our axial piston pumps are the key to unlocking unparalleled hydraulic performance.
Hydraulic axial piston pumps main features:
1. Variable displacement axial piston hydraulic pumps
2. Axial piston hydraulic pumps have swash plate structure
3. Be suitable for hydrostatic transmissions with closed-loop circuit
4. Manual servo and hydraulic variable control
5. Axial piston hydraulic pumps with a charging oil pump
6. LPV90 hydraulic variable displacement axial piston pump
7. Hydraulic piston pump 42Mpa high pressure
LPV90 Axial piston pumps technical specification:
|
LPV hydraulic pump and LMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
Weight |
LPV series hydraulic pump |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
LPV series hydraulic motor |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Notices:
Maintain the peak performance of your axial piston pumps by ensuring the efficiency of the hydraulic oil cooling system. Overheating can reduce the efficiency of your pump and degrade hydraulic fluid, leading to potential system damage. Regular inspections and cleaning of the cooling system help maintain optimal operating temperatures, preserving pump integrity and enhancing overall system performance.
