Product Details:
|
| Principle: | Hydraulic Transmission | Hydraulic System: | Closed Loop Axial Hydraulic Pump |
|---|---|---|---|
| Product Name: | Hydraulic Piston Pumps | Color: | Black |
| Pressure Range: | High Pressure | Package: | Plywood Case |
| Application: | Construction Machinery, Agricultural Harvester And Tractor | Rated Pressure: | 35Mpa |
| Highlight: | Simple Installation Hydraulic Piston Pump,Industrial Black Hydraulic Piston Pump |
||

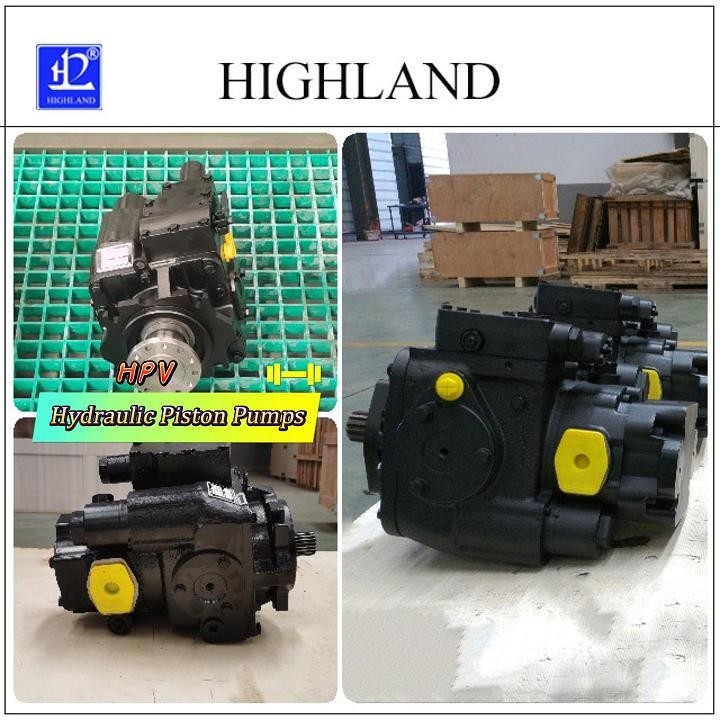

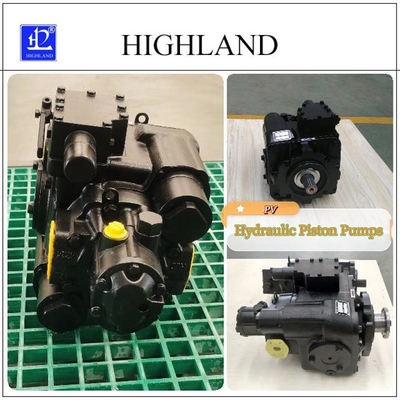

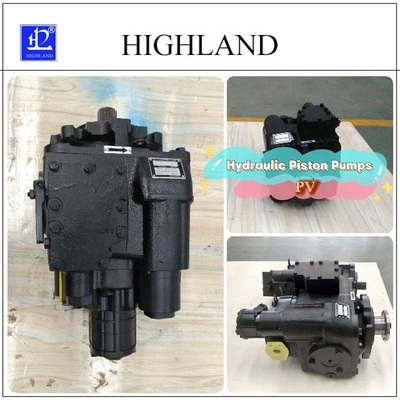

This high pressure piston pump is a vital component of hydraulic systems, providing efficient and reliable power for a wide range of industrial and mobile applications. As a type of hydraulic piston pump, it is designed to convert mechanical energy into hydraulic energy by using a series of pistons to move fluid through a system. The product is known for its variable displacement and axial piston structure, making it a versatile and powerful solution for various hydraulic needs.
The Hydraulic Piston Pumps are designed to handle high pressure operations, with a rated pressure of 35Mpa. This allows for smooth and consistent performance even under extreme conditions, making it suitable for demanding applications in industries such as construction, agriculture, and manufacturing.
As one of the key components of a hydraulic system, the Hydraulic Piston Pumps play a crucial role in powering and controlling various functions. This includes lifting, pushing, pulling, and rotating heavy loads, as well as controlling the speed and direction of movements. With its reliable and efficient performance, this product ensures the smooth operation of hydraulic systems.
The Hydraulic Piston Pumps are a type of positive displacement pump, which means that they deliver a fixed amount of fluid per cycle. This makes them ideal for applications that require precise and consistent fluid delivery, such as in hydraulic systems. Their compact size and simple design also make them easy to install and maintain.
The name of this product reflects its main function and purpose - to pump hydraulic fluid using pistons. It is a widely recognized and trusted product in the industry, known for its high quality and performance. With various sizes and configurations available, the Hydraulic Piston Pumps can meet the diverse needs of different customers.
The Hydraulic Piston Pumps feature a variable displacement axial piston structure, which means that the displacement volume can be adjusted according to the demand. This allows for greater flexibility and efficiency in controlling the flow and pressure of the hydraulic system, resulting in energy savings and improved performance.
| Technical Parameters | Details |
|---|---|
| Max Pressure | 42Mpa |
| Pressure Range | High Pressure |
| Structure | Variable Displacement Axial Piston Pump |
| Warranty | 1 Year |
| Power Source | Hydraulic |
| Standard Export Package | Plywood Case |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Principle | Hydraulic Transmission |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Function | Hydraulic System Components |
| Key Features | Piston pump for sale, High quality hydraulic pump, HPV110 hydraulic pump |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Highland's Hydraulic Piston Pumps, model number HPV90, are manufactured in Dezhou, China. Our company takes pride in producing high-quality hydraulic pumps that are durable, efficient, and cost-effective.
Our Hydraulic Piston Pumps have been certified with a patent certificate, ensuring the originality and uniqueness of our product. This certification is a testament to our commitment to providing innovative and reliable products to our customers.
We understand that every customer has different needs and requirements, which is why our minimum order quantity for our Hydraulic Piston Pumps is only 5 sets. This allows our customers to purchase the exact number of pumps they need, without any excess.
Our Hydraulic Piston Pumps are priced competitively at USD900-1400 per set. This price range makes our pumps accessible to a wide range of customers, without compromising on quality.
To ensure the safe delivery of our products, we use high-quality plywood cases for packaging. This protects the pumps from any damage during transportation and ensures they arrive at their destination in perfect condition.
At Highland, we understand the importance of timely delivery. Our Hydraulic Piston Pumps have a delivery time of 10 working days, allowing our customers to receive their orders promptly and start using our pumps for their needs.
We offer flexible payment terms of T/T and Western Union for our customers, making it convenient for them to make payments for their orders.
With a supply ability of 200 sets per month, we can cater to the demands of large orders without compromising on the quality or delivery time of our Hydraulic Piston Pumps.
Our Hydraulic Piston Pumps are designed to handle high pressure, making them suitable for a wide range of applications that require powerful and efficient pumps.
The structure of our Hydraulic Piston Pumps is a variable displacement axial piston pump, which allows for a wide range of flow and pressure capabilities. This makes our pumps versatile and suitable for various industrial and commercial uses.
Our Hydraulic Piston Pumps come in a sleek and professional black color, adding a touch of sophistication to any industrial or commercial setting where they are used.
For international orders, we use standard export packaging of high-quality plywood cases to ensure the safe delivery of our Hydraulic Piston Pumps to our customers around the world.
Our Hydraulic Piston Pumps have a maximum pressure of 42Mpa, making them suitable for heavy-duty applications that require high pressure and flow rates.
Hydraulic Piston Pumps are widely used in various industries and applications, such as:
Our Hydraulic Piston Pumps are also suitable for various scenarios, such as:
Tags: HPV90 hydraulic piston pump, high pressure piston pump, industrial hydraulic pump
